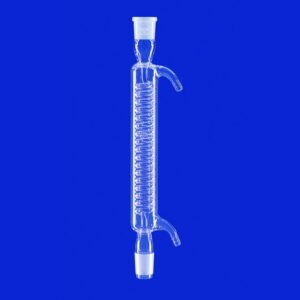

Condensers acc. to Allihn, DURAN® tubing
Allihn condensers acc. to DIN 12581 and in addition to DIN, for condensing vapours, with NS socket and NS cone, water connection with glass olives, made of DURAN® tubing
Toote variatsioonid
Catalog number | PK | Ground size | Material | Standard | Cooling surface | Length jacket | Kogus | |
---|---|---|---|---|---|---|---|---|
6.224 091 | 1.00 | NS24/29 | DURAN® tubing | - | 300 cm² | 400 mm | ||
6.203 391 | 1.00 | NS29/32 | DURAN® tubing | - | 100 cm² | 160 mm | ||
6.225 025 | 1.00 | NS24/29 | DURAN® tubing | - | 200 cm² | 250 mm | ||
6.205 249 | 1.00 | NS29/32 | DURAN® tubing | DIN 12581 | 200 cm² | 250 mm | ||
6.256 242 | 1.00 | NS14/23 | DURAN® tubing | - | 100 cm² | 160 mm | ||
7.019 316 | 1.00 | NS29/32 | DURAN® tubing | - | 300 cm² | 400 mm | ||
7.930 054 | 1.00 | NS19/26 | DURAN® tubing | - | 200 cm² | 250 mm | ||
7.631 268 | 1.00 | NS29/32 | DURAN® tubing | - | 400 cm² | 500 mm | ||
7.930 053 | 1.00 | NS19/26 | DURAN® tubing | DIN 12581 | 100 cm² | 160 mm | ||
6.251 057 | 1.00 | NS24/29 | DURAN® tubing | - | 100 cm² | 160 mm | ||
6.254 134 | 1.00 | NS14/23 | DURAN® tubing | - | 200 cm² | 250 mm |
