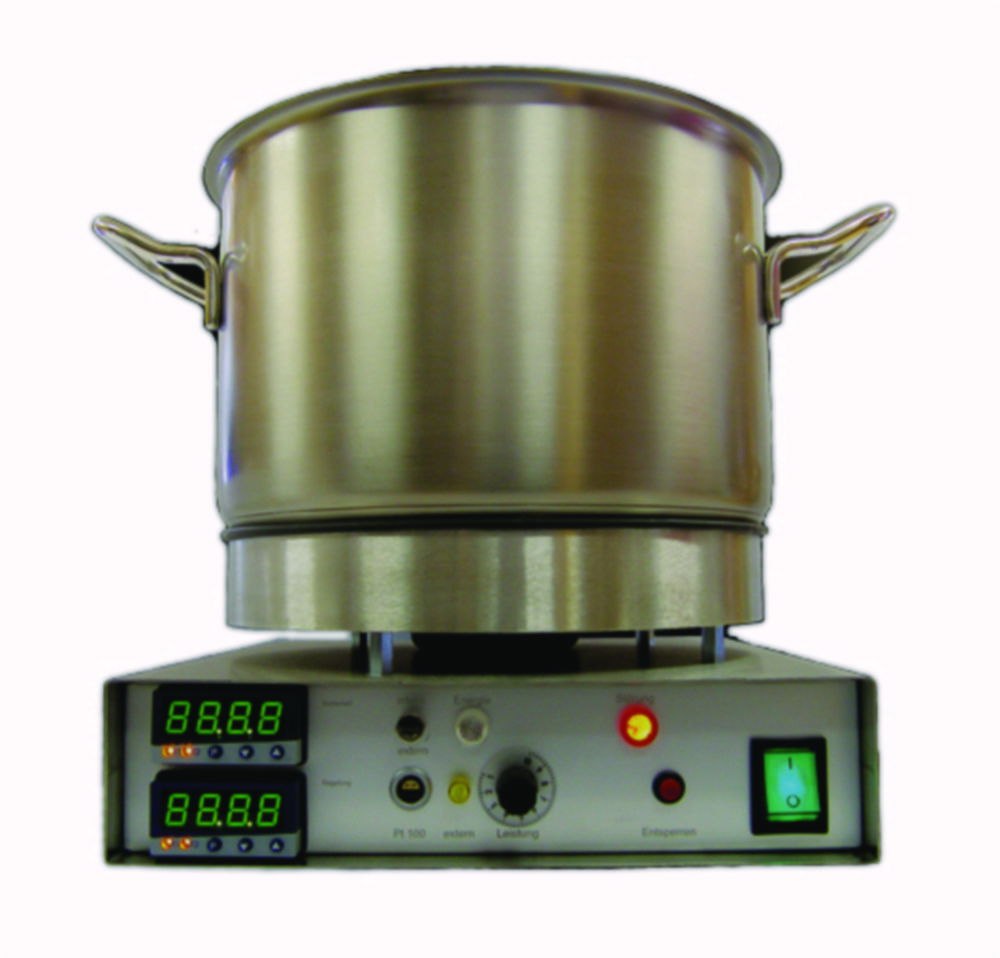

Heating bath HB 1500-S

The heating bath HB 1500-S is developed for varied tasks. The bath can be filled with water, oil or sand. The appliance is equipped with 2 temperature controllers with microprocessor. The upper temperature controller serves as a safety temperature limiter. If the safety temperature is exceeded, the heating is switched off at all poles. The temperature is measured via an internal temperature sensor at the bottom of the pot.

  • Microprocessor controller with 4-digit 7-segment display, 10 mm high, green
  • Freely configurable
  • Self-optimising temperature control
  • Measuring and control range up to 260 °C
  • Setting of heating power from 2 to 99 %
  • Switchable to external sensor
  • Material bath/housing stainless steel, front and rear anodised aluminium

Toote variatsioonid

DisplayExt. depthExt. heightExt. widthHeating capacityHeight int.Int. ØMaterial bathMax. temperatureMin. temperatureNominal capacityCatalog numberPlug typePower supplyTypeWeightPKKogus
Digital270 mm230 mm290 mm1500 W110 mm200 mmStainless steel260 °C-20 °C2 l9.234 515EU230 VHB 1500-S5.4 kg1.00
Digital290 mm255 mm360 mm1500 W150 mm240 mmStainless steel260 °C-20 °C4 l9.234 514EU230 VHB 1500-S5.8 kg1.00
Digital320 mm280 mm370 mm2000 W180 mm280 mmStainless steel260 °C-20 °C8 l9.234 513EU230 VHB 1500-S8.6 kg1.00
