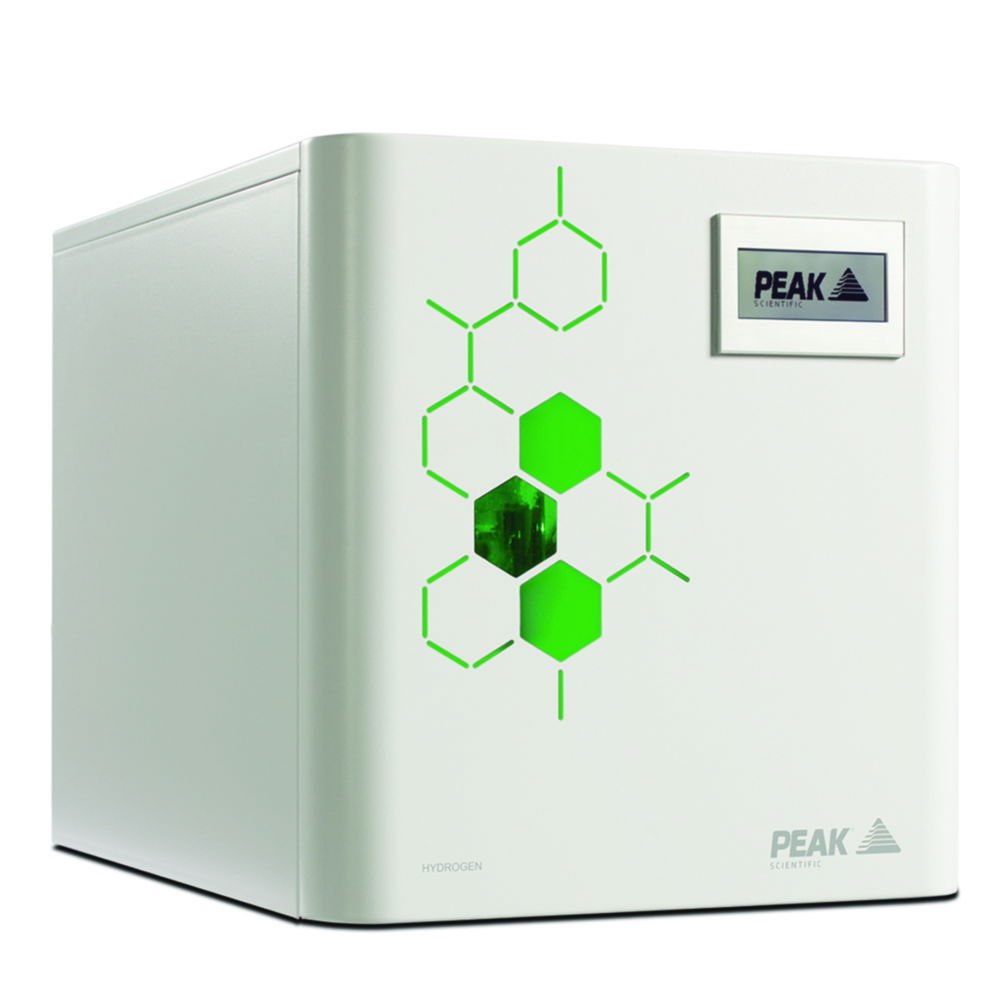

Hydrogen generators Precision Hydrogen Trace

For the safe and continuous production of hydrogen with a purity of 99.99999% for trace analysis using GC, GC/MS and ICP.

  • On-demand production of high purity hydrogen as carrier gas and detector gas for the FID
  • Compact, modular and stackable system
  • Hydrogen production from deionized water using proton exchange membrane, pressure swing adsorption and carbon molecular sieve
  • Systems are available with different flow rates, which can be combined
  • Highest purity due to regenerative PSA dryer
  • Automatic charging pump as standardInternal leakage detection with automatic switch-off function
  • Minimal hydrogen storage in the systemFront LED touch screen with status display
  • Very low maintenance requirements
  • 3 years warranty on the hydrogen cell

Scope of supply: Hydrogen generator, 1 m Tygon® tubing, Deioniser column refill, barbed hose fitting, mains power cable for EU, UK and US, 2 x transit plugs

  • Specifications
  • Purity: 99.9999 %
  • Max. pressure: 6.9 bar / 100 psi
  • Required water quality: <1.0 µS/cm
  • Gas connection: 1/8″ Swagelok
  • Permissible ambient temperature: 10 … 35 °C
  • Dimensions (W x D x H): 38.0 x 54.0 x 40.6 cm
  • Power supply: 110/230 V, 50/60 Hz
  • Warranty: 3 years (cell). 1 year (device)

Toote variatsioonid

TypeFlow rate L / min.Weight kgCatalog numberPKKogus
Precision Hydrogen Trace 12001.20384.669 2801.00
Precision Hydrogen Trace 5000.50294.669 2791.00
Precision Hydrogen Trace 2500.25294.669 2781.00
