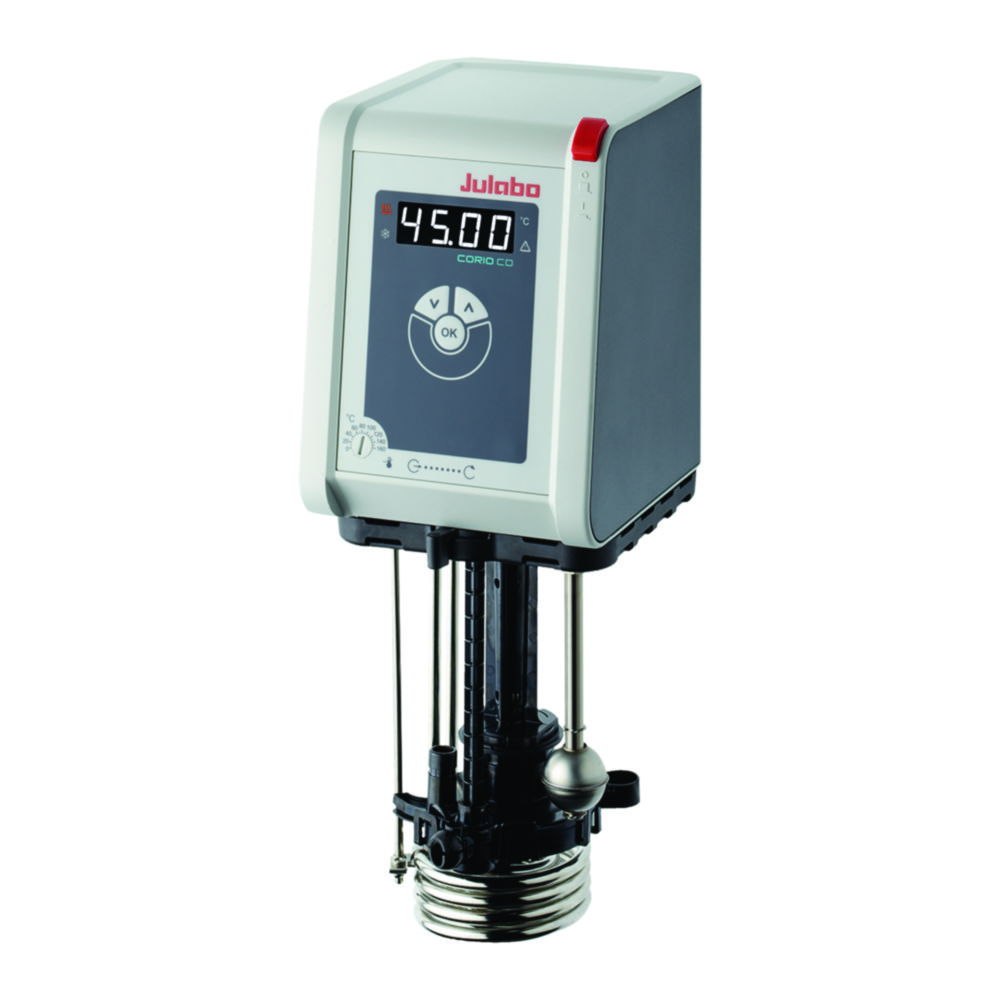

Immersion circulator CORIO™ CD
With a few simple steps you can install a pump set onto the CORIO™ CD immersion circulator. In no time at all, the circulator is ready for temperature control of an external application.
- Precise temperature control
- Bright, white, easy-to-read display
- Whisper quiet
- Easy operation
- For bath tank up to 50 litres
- Pump change-over between internal and external circulation
- Powerful, continously variable pump
- USB interface
- Timer: 0 to 999 min
- Class III (FL) according to DIN 12876-1
Toote variatsioonid
| Depth | Heating capacity | Height | IP code | Max. flow rate | Max. temperature | Max. voltage | Min. temperature | Operation | Catalog number | Plug type | Temp. Stability | Type | Type of display | Weight | Width | With timer | PK | Max. immersion depth | Dimensions (WxDxH) | Power supply | Temperature | Waranty | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 160 mm | 2 kW | 366 mm | IP 21 | 150 °C | - | -20 °C | Membrane keyboard | 4.658 066 | - | ±0,03 °C | CORIO™ CD | LED | 2.6 kg | 132 mm | Yes | 1.00 | 166 mm | 132 x 160 x 366 mm | - | 20 ... 150 °C | 2 years | |||
| 160 mm | 2 kW | 366 mm | IP 21 | 150 °C | 115 V | -20 °C | Membrane keyboard | 6.495 222 | US | ±0,03 °C | CORIO™ CD | LED | 2.6 kg | 132 mm | Yes | 1.00 | 166 mm | 132 x 160 x 366 mm | 115 V, 60 Hz | 20 ... 150 °C | 2 years |
