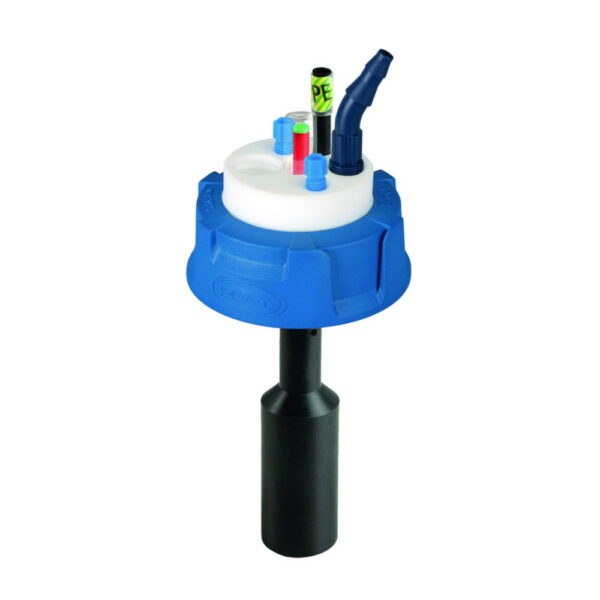

SafetyWasteCaps with mechanical level control
The red floater is immediately visible when the container has reached the critical fill level. Perfect for canisters of opaque material, where the fill level is not visible from the outside.
- Approved S.C.A.T. technology of the SafetyWasteCaps
- Different thread sizes
- Connections for capillaries and tubings
- Mechanical or electronic (E) level control
- With connection for S.C.A.T. exhaust filters
Please choose a filter size and order your exhaust filter separately (see chapter “Exhaust filters for SafetyWasteCaps”).
Further thread sizes are available on request.
Toote variatsioonid
| Thread | Connection diam. outside | Connection diam. inside | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|
| S55 | 3 x 2,3/3,2 mm | - | 4.005 609 | 1.00 | ||
| S55 | 2 x 2,3/3,2 mm | 1 x 6,4 ... 9,0 mm | 4.005 612 | 1.00 | ||
| S65 | 4 x 2,3/3,2 mm | 1 x 6,4 ... 9,0 mm | 4.005 618 | 1.00 | ||
| S90** | 4 x 2,3/3,2 mm | - | 4.005 615 | 1.00 | ||
| S55 (E) | 3 x 2,3/3,2 mm | - | 4.005 718 | 1.00 | ||
| S90** | 4 x 2,3/3,2 mm | 1 x 6,4 ... 9,0 mm | 4.005 616 | 1.00 | ||
| B83 | 4 x 2,3/3,2 mm | 1 x 6,4 ... 9,0 mm | 4.005 717 | 1.00 | ||
| S90 (E) | 4 x 2,3/3,2 mm | 1 x 6,4 ... 9,0 mm | 4.005 726 | 1.00 | ||
| S60/61 | 3 x 2,3/3,2 mm | - | 4.680 967 | 1.00 | ||
| S60/61 | 2 x 3,2 mm | 1 x 6,4 ... 9,0 mm | 6.316 823 | 1.00 | ||
| S60/61 | 2 x 3,2 mm | 1 x 6,4 ... 9,0 mm | 6.316 828 | 1.00 | ||
| S60/61 (E) | 2 x 3,2 mm | 1 x 6,4 ... 9,0 mm | 6.316 827 | 1.00 | ||
| S55 (E) | 2 x 2,3/3,2 mm | 1 x 6,4 ... 9,0 mm | 4.005 719 | 1.00 |
