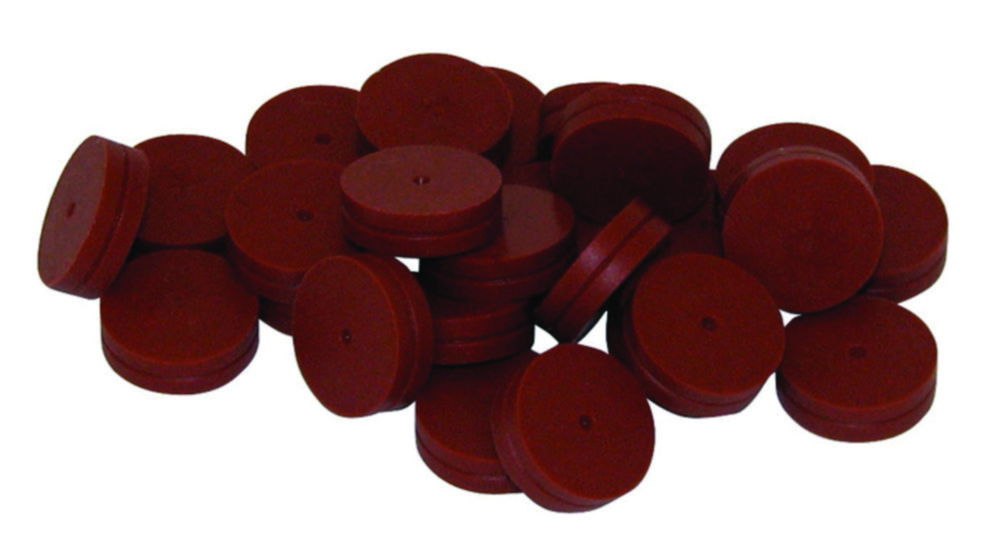

Septa for Agilent GC

All Septa are made with a high grade silicone material to minimize needle coring. These new materials meet or exceed industry standards, giving you reassurance in the quality of your work. All of these Septa are durable with excellent resealing properties and excellent solvent resistance.

GP = General Purpose Silicone Septa for non-demanding routine applications up to 200°C.
EC = High Temperature Silicone Septa, for significantly longer injection life, low bleed and low injection port adhesion.
MN = High Temperature Premium Silicone Septa for autosamplers, up to 400 injections per septum.
HT = BTO Silicone Septa, Bleed and temperature optimized, combined with outstanding mechanical properties.

Also available: Septa for instruments from Perkin-Elmer, Shimadzu, Thermo and Varian/Bruker.

Toote variatsioonid

Ø mmTemp. max. °CMaterialCatalog numberPKKogus
9.5350EC9.003 59225.00
12/5400HT9.003 59625.00
11.0350EC9.003 59425.00
12/5350EC9.003 59724.00
9.5400HT9.003 59325.00
11.0400HT9.003 59525.00
8.0200GP6.204 91650.00
11.0350MN6.255 34848.00
8.0400EC6.229 72450.00
7.0275GP6.205 66950.00
9.5275GP6.224 18950.00
5.0350MN9.003 59150.00
12/5275GP6.087 24248.00
11.0275GP6.085 41950.00
5.0275GP9.003 59050.00
15.0275GP6.203 20950.00
