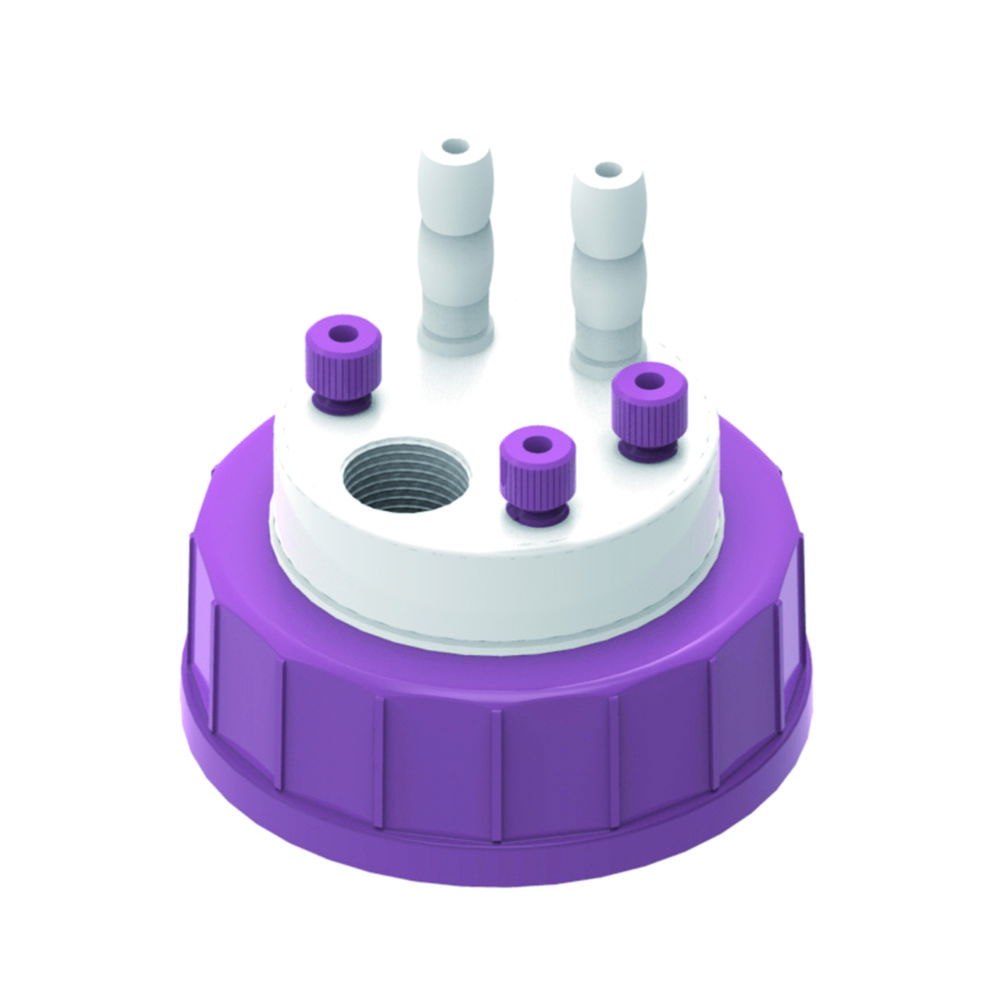

Waste SafetyCaps
Ideal for collecting liquid HPLC waste. The activated carbon in the exhaust filter binds all hazardous solvent vapours. Replacement of the exhaust filter after 6 months is recommended. Both capillaries and hose barbs can be inserted into the capillary connections.
- With timestrip sticker
- Caps and fittings made of PP
- Body and hose barbs made of PTFE
Please order exhaust filter separately.
Toote variatsioonid
| Catalog number | PK | Material | No. of blind plugs | No. of fittings | No. of olives | Thread | Kogus | |
|---|---|---|---|---|---|---|---|---|
| 4.684 229 | 1.00 | PTFE | 1 | 2 x 2,3 ... 3,2 mm, 1 x 1,6 mm | 1 x 7 ... 9 mm | GL 45/DIN 45 | ||
| 4.684 230 | 1.00 | PTFE | - | 2 x 2,3/3,2 mm | 1 x 7 ... 9 mm | S 55/DIN 51 | ||
| 4.684 227 | 1.00 | PTFE | - | 3 x 2,3 / 3,2 mm | - | GL 45/DIN 45 | ||
| 4.684 228 | 1.00 | PTFE | - | 2 x 2,3/3,2 mm | 1 x 7 ... 9 mm | GL 45/DIN 45 | ||
| 4.684 231 | 1.00 | PTFE | 3 | 4 x 2,3 ... 3,2 mm, 3 x 1,6 mm | 3 x 7 ... 9 mm | S 55/DIN 51 | ||
| 4.684 234 | 1.00 | PTFE | 2 | 3 x 2,3 ... 3,2 mm, 2 x 1,6 mm | 2 x 7 ... 9 mm | DIN 60/61 | ||
| 4.684 235 | 1.00 | PTFE | 3 | 4 x 2,3 ... 3,2 mm, 3 x 1,6 mm | 3 x 7 ... 9 mm | DIN 60/61 | ||
| 4.684 236 | 1.00 | PTFE | 4 | 5 x 2,3 ... 3,2 mm, 4 x 1,6 mm | 4 x 7 ... 9 mm | DIN 60/61 |
