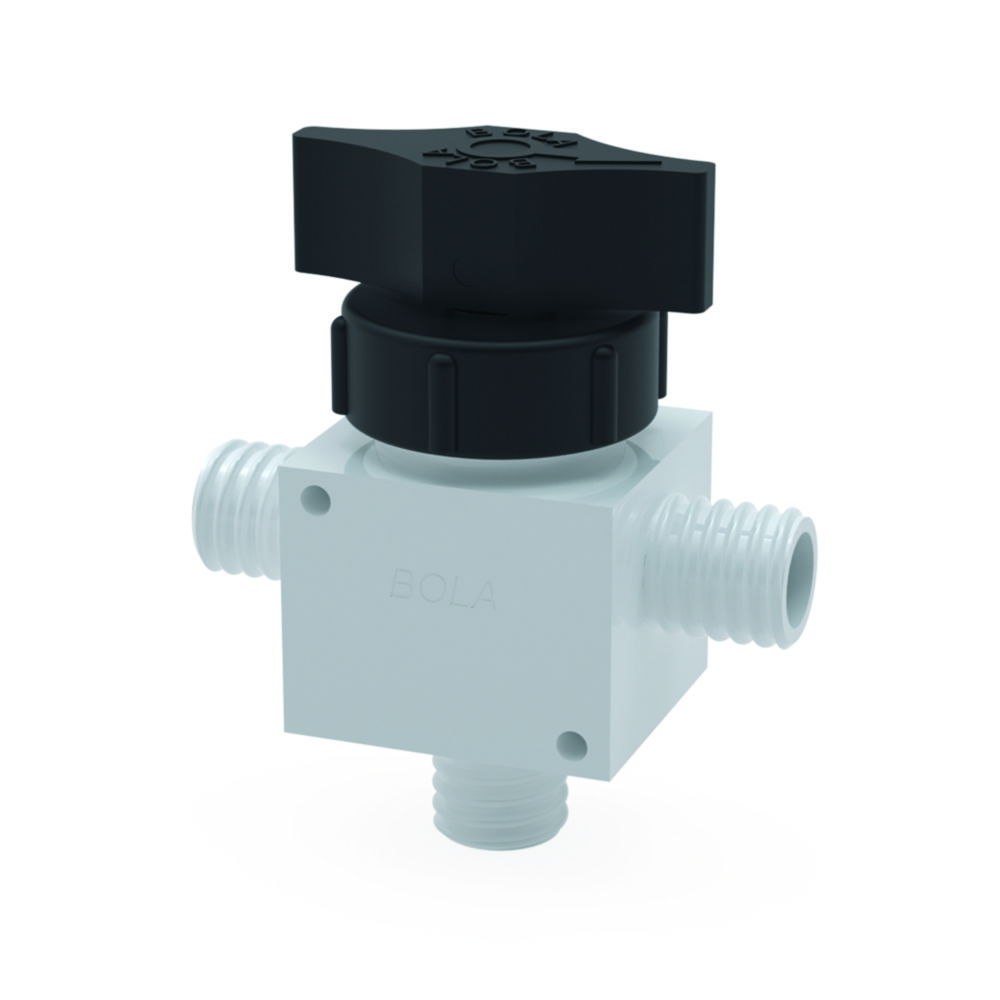

3-way ball valves
Ball valves with GL screwthread made of chemically resistant PTFE. Maximum permissible atmospheric temperature 150°C, passing media can be as hot as 220°C.
The special construction allows the clamps to be used under pressures of up to 10 bar and also under vacuum. A further advantage is that they can be used as expansion/reduction adapters to connect tubing of different diameters. For easy tubing connection we recommend the accessory Bola laboratory screwthread connection which can be ordered separately.
Toote variatsioonid
Bore | Length | Material | Catalog number | Thread | PK | Kogus | |
---|---|---|---|---|---|---|---|
12 mm | 100 mm | PTFE | 9.207 313 | GL 32 | 1.00 | ||
8 mm | 90 mm | PTFE | 9.207 312 | GL 25 | 1.00 | ||
3 mm | 50 mm | PTFE | 9.207 310 | GL 14 | 1.00 |
