Abbe refractometers, NAR-1T series / NAR-2T
Type NAR-1T-Liquid: The Abbe Rerfactometer for liquid sample measurement only. It has the Refractive Index Scale and the Brix scale, and it comes with D-line (589nm) light source. Calibration can be achieved using distilled water.

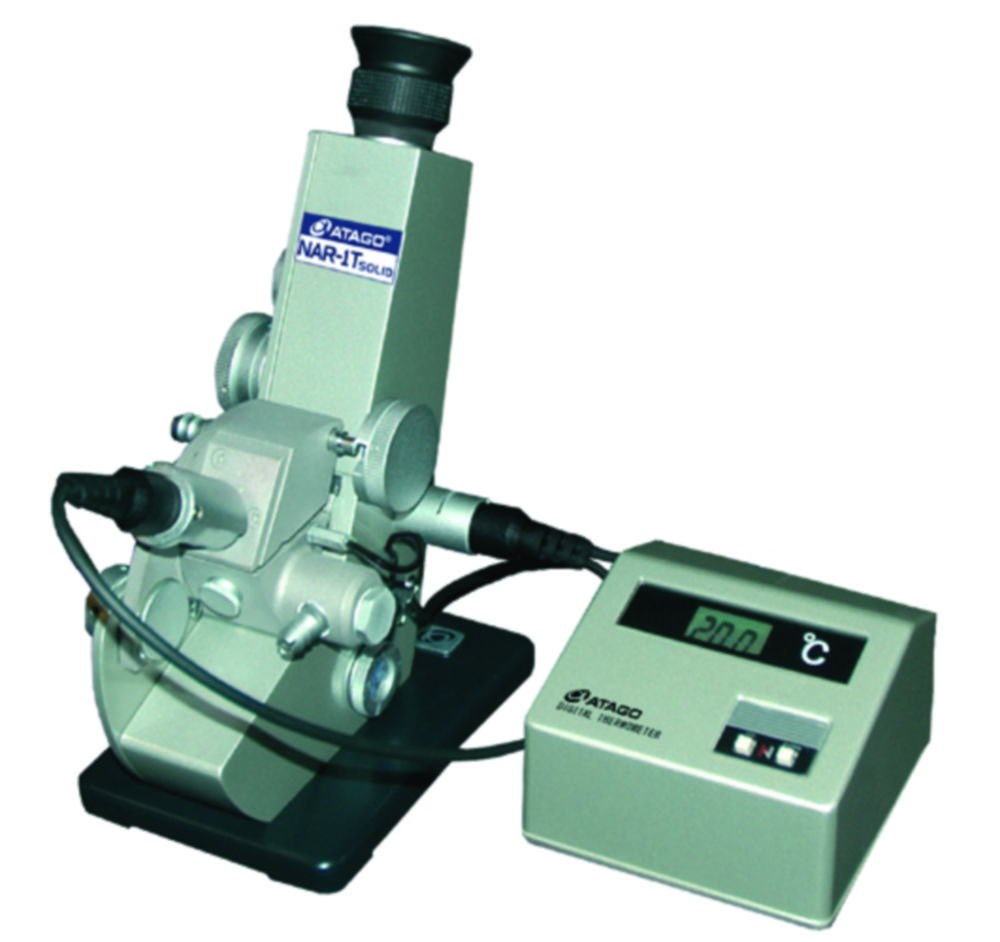

Type NAR-1T Solid: Abbe Refractometer for solid sample measurement (it can also be used to measure liquid samples). It has the Refractive Index Scale and the BRIX scale, and it comes with D-line (589nm) light source.
Type NAR-2T: Designed for use with substances requiring measurement at high temperature.
Toote variatsioonid
| Catalog number | PK | Accuracy Number | Max. temperature | Max. voltage | Measured range | Min. temperature | Min. voltage | Power supply | Temperature | Type | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.231 748 | 1.00 | 50 °C | 240 V | 5 °C | 100 V | 100 ... 240 V, 50/60 Hz | -5 ... 50 °C | NAR-1T Liquid | ||||
| 9.801 317 | 1.00 | 120 °C | 240 V | 0 °C | 100 V | 100 ... 240 V, 50/60 Hz | 0 ... 120 °C | NAR-2T | ||||
| 6.228 976 | 1.00 | 50 °C | 240 V | 5 °C | 100 V | 100 ... 240 V, 50/60 Hz | -5 ... 50 °C | NAR-1T Solid |
