Accessories for Laboratory Presses

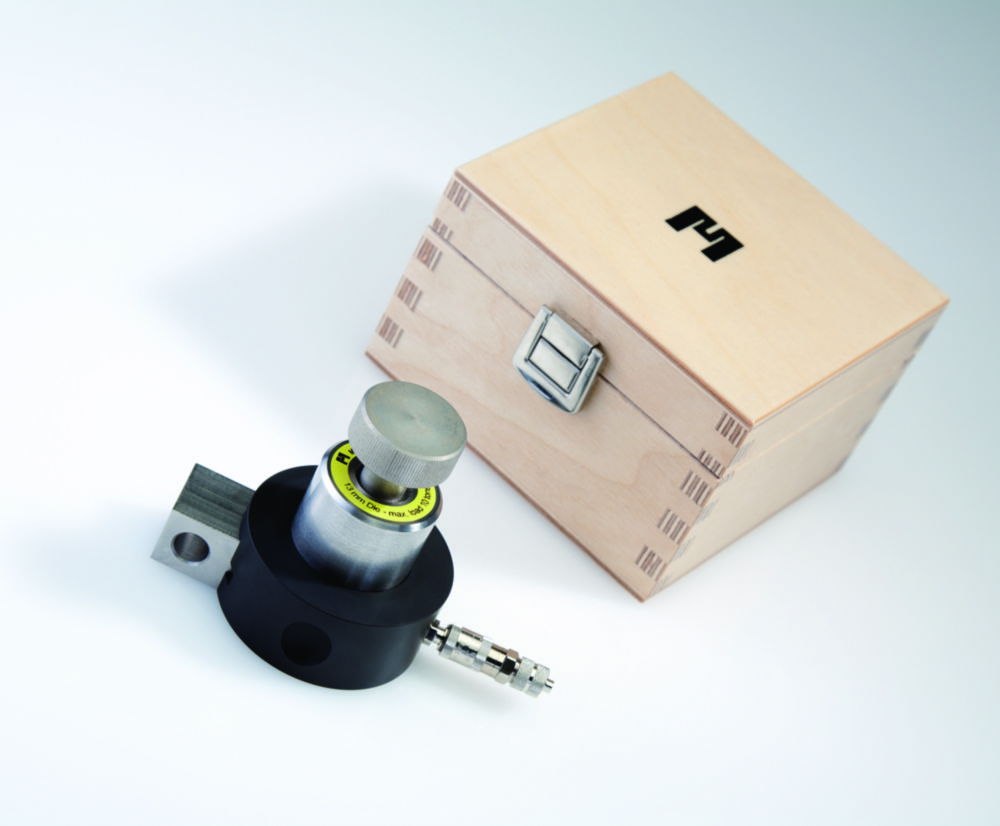

- The 13 mm press die is supplied in a wooden box (for 32 and 40 mm: optional)
- The 32 and 40 mm press die can be combined to save costs, since the same parts can be used
- All press dies from 10 mm have a vacuum connection with a special self-locking tubing adapter, which makes it easier to connect and disconnect
Further diameters available on request.
Toote variatsioonid
| Catalog number | PK | Description | Max. pressure | Kogus | |
|---|---|---|---|---|---|
| 4.672 207 | 1.00 | Press die set for Alucups, 40 mm | 40 t | ||
| 6.290 222 | 1.00 | Press die set, 32 mm with hard metal pellets (KXF) | 36 t | ||
| 6.290 226 | 1.00 | Pellet holder, 13 mm | - | ||
| 6.290 220 | 1.00 | Press die set, 13 mm with hard metal pellets (KXF) in wooden box | 14 t | ||
| 4.672 210 | 1.00 | Press die set for rings, 51.5/35 mm (OD/ID) | 40 t | ||
| 4.672 208 | 1.00 | Press die set for rings, 40/32 mm (OD/ID) | 40 t | ||
| 6.290 221 | 1.00 | Press die set, 32 mm | 30 t | ||
| 4.672 209 | 1.00 | Press die set for rings, 40/35 mm (OD/ID) | 40 t | ||
| 6.290 219 | 1.00 | Press die set, 13 mm in wooden box | 10 t | ||
| 6.290 224 | 1.00 | Press die set, 40 mm with hard metal pellets (KXF) | 48 t | ||
| 6.290 225 | 1.00 | Wooden box for 32 and 40 mm Press die sets | - | ||
| 6.290 223 | 1.00 | Press die set, 40 mm | 40 t |
