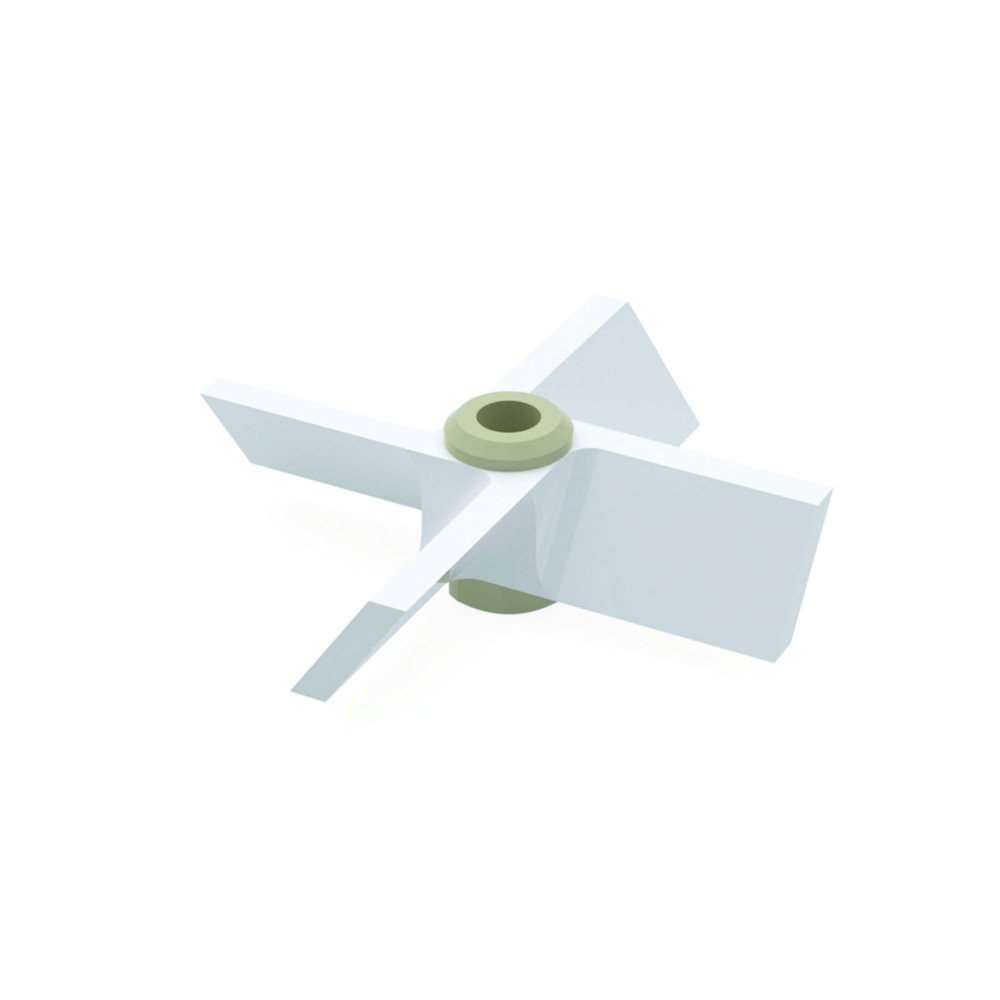

Additional Stirrer Blades for Bola Stirrer Shafts, PTFE
Useful extension to the existing range of Bola stirrer shafts. The additional blades can optionally be fixed in your preferred position on every stirrer shaft with diameter 8,10 or 16 mm (a flat spanner is included). The stirrer blades are entirely made of PTFE, the mounting devices are made of a special PTFE-compound. A high chemical and thermical (-200 to +250 °C) resistance is assured. This “building block system” allows the user to define a stirrer of their own special requirements.
Toote variatsioonid
| Description | Shaft diam. mm | Length mm | Paddle diam. mm | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| Blade | 10 | 20 | 110 | 6.229 275 | 1.00 | ||
| Anchor | 10 | 50 | 80 | 6.233 254 | 1.00 | ||
| Additional blade | 10 | 20 | 80 | 6.240 450 | 1.00 | ||
| Solo stirrer shaft | 10 | 800 | - | 6.241 097 | 1.00 | ||
| Propeller-three-bladed | 10 | 18 | 75 | 6.231 491 | 1.00 | ||
| Propeller with 4 blades | 8 | 18 | 50 | 6.240 297 | 1.00 | ||
| Propeller-three-bladed | 8 | 18 | 75 | 6.233 277 | 1.00 | ||
| Solo stirrer shaft | 8 | 350 | - | 6.240 615 | 1.00 | ||
| Anchor shaped blade | 16 | 120 | 150 | 6.280 075 | 1.00 | ||
| Maxi propeller-three-bladed | 16 | 26 | 200 | 6.227 770 | 1.00 | ||
| Propeller with 4 blades | 10 | 20 | 100 | 6.253 511 | 1.00 | ||
| Moon-shaped blade | 8 | 18 | 65 | 6.261 399 | 1.00 | ||
| Impeller blade | 10 | 25 | 60 | 6.240 449 | 1.00 | ||
| Maxi propeller-three-bladed | 10 | 20 | 140 | 7.651 149 | 1.00 | ||
| Anchor shaped blade | 10 | 120 | 150 | 6.266 026 | 1.00 | ||
| Anchor shaped blade | 10 | 80 | 130 | 7.660 612 | 1.00 | ||
| Anchor | 8 | 60 | 100 | 9.197 172 | 1.00 | ||
| Anchor | 8 | 40 | 60 | 9.197 171 | 1.00 | ||
| Blade | 8 | 18 | 80 | 9.197 174 | 1.00 | ||
| Impeller-three-bladed | 10 | 25 | 100 | 9.197 170 | 1.00 | ||
| Additional blade | 10 | 20 | 140 | 7.657 933 | 1.00 | ||
| Blade | 16 | 25 | 140 | 9.197 175 | 1.00 | ||
| Impeller-three-bladed | 10 | 25 | 150 | 6.401 547 | 1.00 | ||
| Solo stirrer shaft | 10 | 600 | - | 6.228 187 | 1.00 | ||
| Anchor | 10 | 60 | 100 | 9.197 173 | 1.00 | ||
| Propeller with 4 blades | 10 | 20 | 200 | 6.269 412 | 1.00 | ||
| Moon-shaped blade | 10 | 24 | 90 | 7.643 301 | 1.00 |
