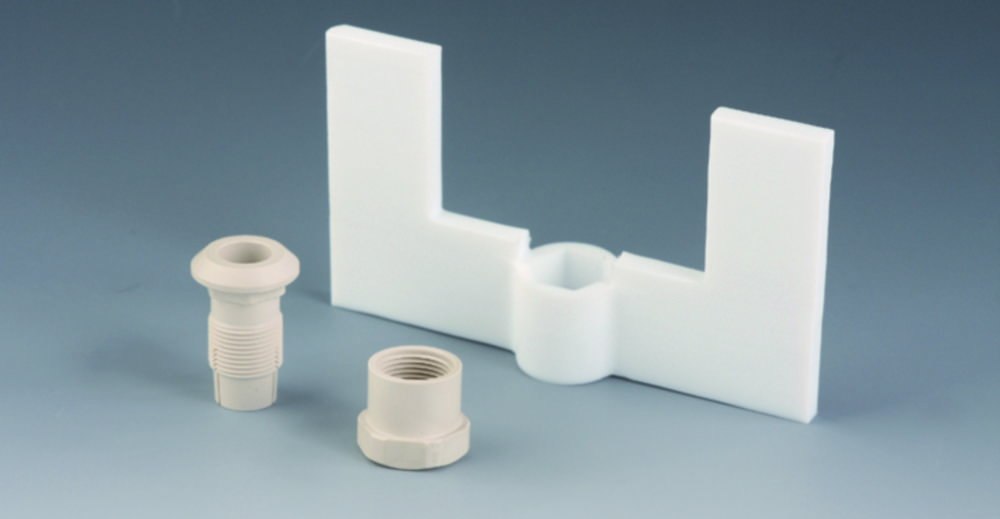

Additional stirrer blades for stirrer shafts, PTFE, anchor
Useful extension to the existing range of Bola stirrer shafts. The additional blades can optionally be fixed in your preferred position on every stirrer shaft with diameter 8,10 or 16 mm (a flat spanner is included). The stirrer blades are entirely made of PTFE, the mounting devices are made of a special PTFE-compound. A high chemical and thermical (-200 to 250 °C) resistance is assured. This “building block system” allows the user to define a stirrer of their own special requirements.
Toote variatsioonid
| Description | Shaft diam. mm | Length mm | Paddle diam. mm | Catalog number | PK | Height | Material | Paddle diam. | Type of stirrer | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Anchor shaped blade | 10 | 80 | 130 | 7.660 612 | 1.00 | - | - | - | - | ||
| Anchor | 10 | 60 | 100 | 9.197 173 | 1.00 | - | - | - | - | ||
| - | - | - | - | 6.274 721 | 1.00 | 80 mm | PTFE | 130 mm | Anchor stirrer | ||
| Anchor | 8 | 60 | 100 | 9.197 172 | 1.00 | - | - | - | - | ||
| Anchor shaped blade | 16 | 120 | 150 | 6.280 075 | 1.00 | - | - | - | - | ||
| Anchor | 8 | 40 | 60 | 9.197 171 | 1.00 | - | - | - | - | ||
| - | - | - | - | 6.266 026 | 1.00 | 120 mm | PTFE | 150 mm | Anchor stirrer |
