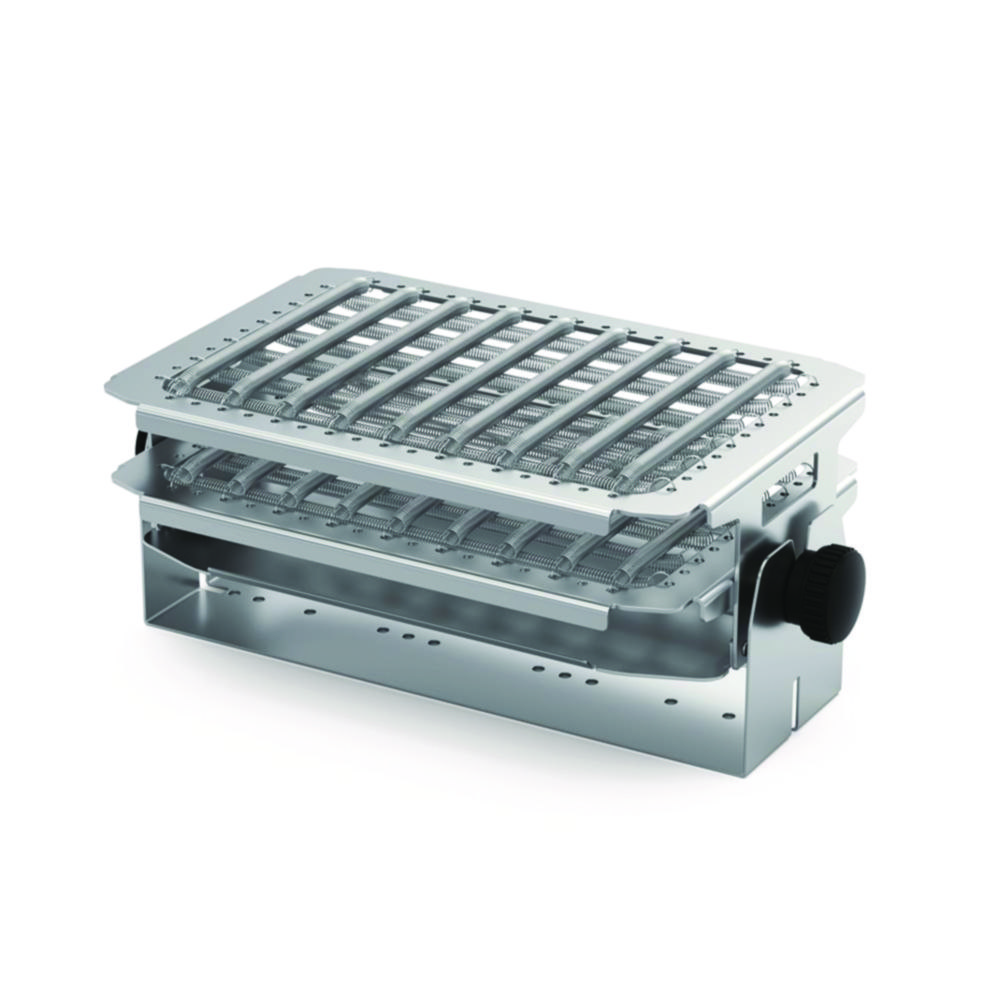

Adjustable tube rack IO R 2.10
The adjustable tube rack can be attached to all IKA orbital and horizontal shakers in combination with the AS fixing clamp attachments, as well as to the SP shaking platforms of the INC 125 FS incubators. With the spring fixation, up to 60 vessels with a diameter of 8 to 30 mm can be attached. The shaking angle of the samples can be easily adjusted using the side knobs.
Number of sample tubes:
Ø 8 to 11 mm: 60 pieces
Ø 12 to 15 mm: 40 pieces
Ø 15 to 18 mm: 28 pieces
Ø 18 to 21 mm: 20 pieces
Ø 22 to 26 mm: 15 pieces
Ø 26 to 30 mm: 60 pieces
Toote variatsioonid
| Depth | Dimensions (WxDxH) | For vessel Ø | Height | Catalog number | Type | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 265 mm | 150 x 265 x 100 mm | 100 mm | 6.494 124 | IO R 2.10 | 150 mm | 1.00 |
