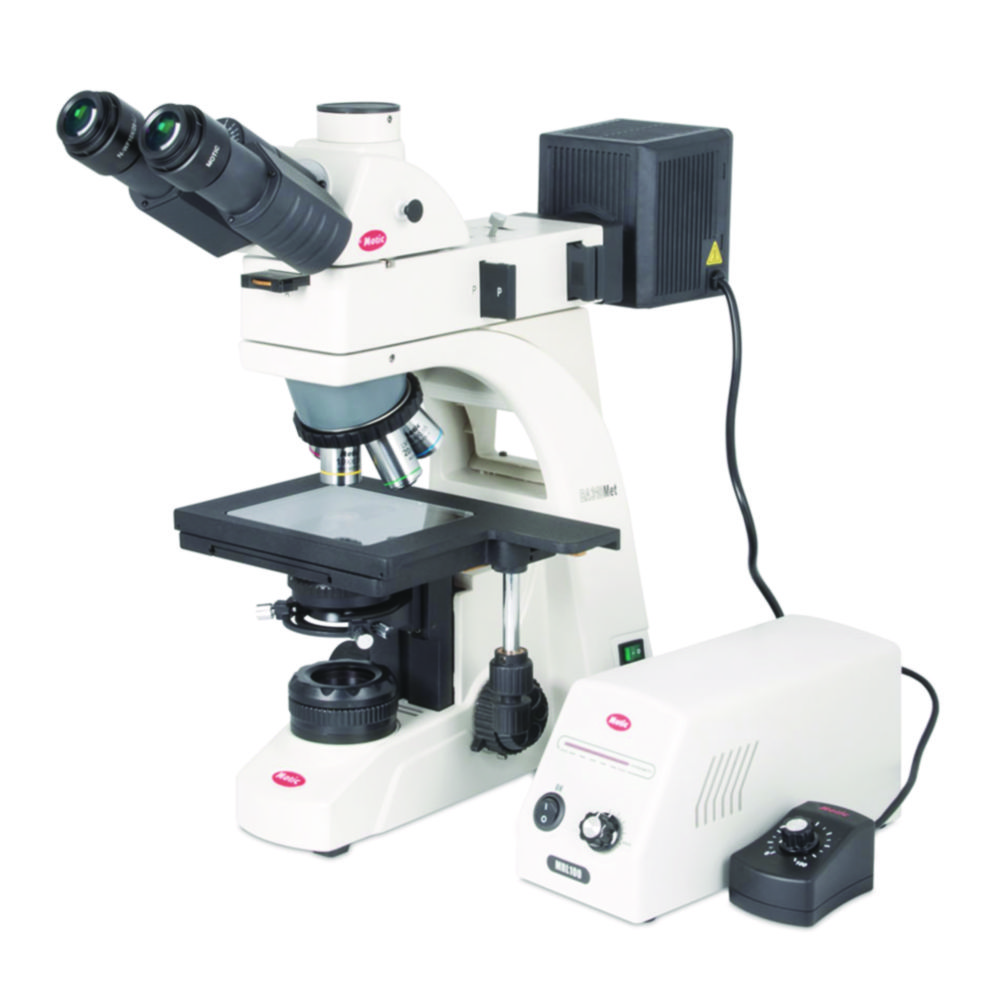

Advanced Microscope for Industrial and Material science, BA310 MET

The BA310 MET series is the ideal microscope for industrial quality inspection or material science. Different alternative stand options also allow applications in brightfield or examination of larger samples

  • Infinity Optics [CCIS®]
  • Observation Tube Trinocular 30° (Light split 100:00/20:80), F.N. 20
  • Interpupillary distance 48-75mm
  • Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
  • Reversed quintuple revolving nosepiece
  • CCIS LM Plan Achromatic objectives 5X, 10X, 20X, 50X
  • Coaxial course and fine focusing system
  • Mechanical stage 180x140mm, hard coated with built-in low position coaxial stage control
  • Epi-illuminator 12V/50W quartz halogen with integrated field and aperture diaphragms and external lamphouse
  • Power supply 100-240V (CE)
  • Power cord, Allen hexagonal key, vinyl dust cover

BA310 MET-T:

  • Coaxial course and fine focusing system, course focusing system adjustable
  • Transmitted illumination of 6V/30W Quartz Halogen Koehler illumination with intensity control
  • Blue, frosted, green and yellow filters
  • Interchangeable LED modul for transmitted light available

Toote variatsioonid

TypeDescriptionCatalog numberPKKogus
BA310 METTrinocular6.264 7121.00
BA310 MET-TTrinocular6.287 1521.00
Analyzer-6.286 5071.00
Polarizer-6.286 5061.00
