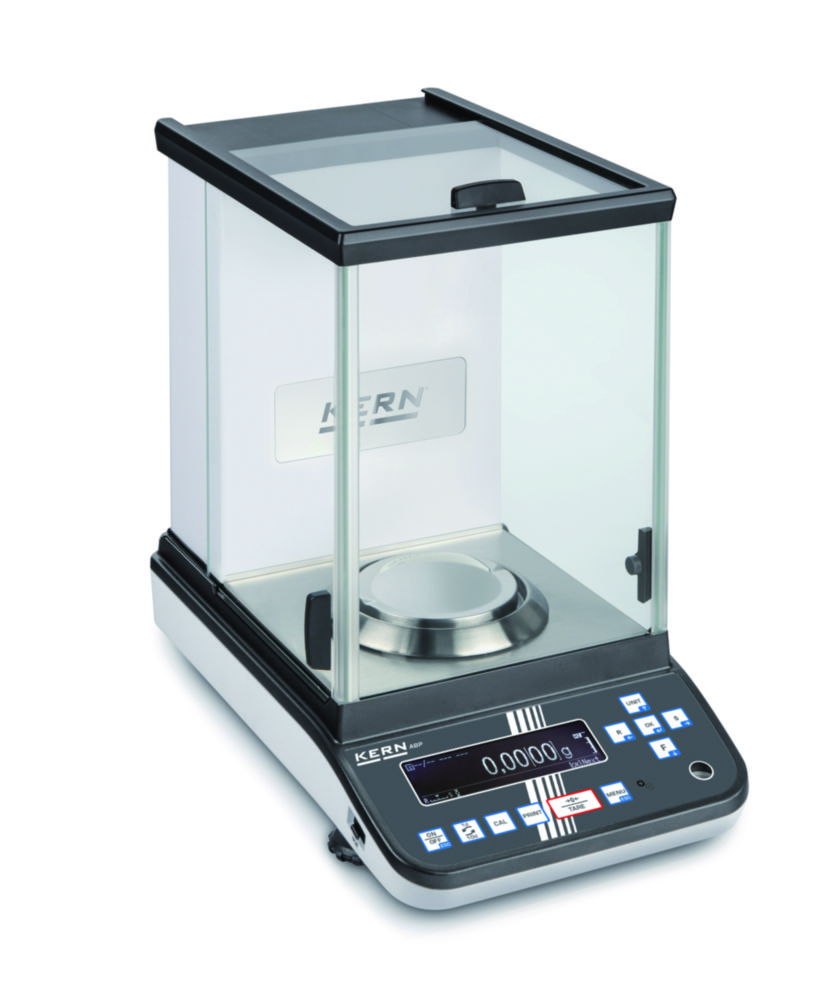

Analytical balance ABP

This new generation of analytical balances combines the highest level of precision with large weighing capacities. Thanks to the new Single-Cell Generation, the weighing result is displayed in a fraction of the time with comparable models. The multifunctional weighing plate (only for models with readability 0.01 mg) minimises the effect of air currents in the weighing chamber and therefore significantly improves the stabilisation time and repeatability. In addition samples, sample paper, PCR tubes and microcentrifuge tubes can be easily fixed and weighed.

  • OLED display
  • Navigation pad for super quick navigating through the menus
  • Automatic internal adjustment in the case of a change in temperature ≥ 1 °C or timecontrolled every 4 h, guarantees high degree of accuracy and makes the balance independent of its location of use
  • The minimum weight of sample can be manually stored in the balance or automatically calculated, with warning message when the weighing is below this value
  • Dosage aid: High-stability mode and other filter settings can be selected
  • Simple recipe weighing and documenting with a combined tare/print function
  • Menu language DE, GB
  • Automatic data output to the PC/printer each time the balance is steady
  • USB data interfaces and RS-232
  • Large glass draught shield with 3 sliding doors for easy access to the items being weighed

Scope of supply:
Analytical balance, protective working cover, universal mains adapter

Toote variatsioonid

Adjusting programDepthDepth weighing plateDimensions (WxDxH)HeightLinearityMax. loadMax. voltageMin. voltageCatalog numberPlug typePower supplyReadabilityReproducibilityTypeVerified calibrationWeighing plate (WxD)WeightWidthWith draft shieldPKKogus
Internal433 mm91 mm213 x 433 x 344 mm344 mm±0,1 mg135 g240 V·AC220 V6.321 067EU/UK/CH/US/AUS220 ... 240 V·AC, 50 Hz0,01 mg0,05 mgABP 100-5MVerifiableØ 91 mm8 kg213 mmYes1.00
Internal433 mm91 mm213 x 433 x 344 mm344 mm±0,1/0,2 mg102 / 220 g240 V·AC220 V4.667 752EU/UK/CH/US/AUS220 ... 240 V·AC, 50 Hz0,01/0,1 mg0,05/0,1 mgABP 200-5DMVerifiableØ 91 mm8 kg213 mmYes1.00
Internal433 mm91 mm213 x 433 x 344 mm344 mm±0,2 mg220 g240 V·AC220 V4.667 749EU/UK/CH/US/AUS220 ... 240 V·AC, 50 Hz0,1 mg0,1 mgABP 200-4MVerifiableØ 91 mm8 kg213 mmYes1.00
Internal433 mm91 mm213 x 433 x 344 mm344 mm±0,1 mg220 g240 V·AC220 V6.321 068EU/UK/CH/US/AUS220 ... 240 V·AC, 50 Hz0,01 mg0,015/0,03/0,05 mgABP 200-5MVerifiableØ 91 mm8 kg213 mmYes1.00
Internal433 mm91 mm213 x 433 x 344 mm344 mm±0,3 mg320 g240 V·AC220 V4.667 750EU/UK/CH/US/AUS220 ... 240 V·AC, 50 Hz0,1 mg0,2 mgABP 300-4MVerifiableØ 91 mm8 kg213 mmYes1.00
Internal433 mm91 mm213 x 433 x 344 mm344 mm±0,2 mg120 g240 V·AC220 V4.667 748EU/UK/CH/US/AUS220 ... 240 V·AC, 50 Hz0,1 mg0,1 mgABP 100-4MVerifiableØ 91 mm8 kg213 mmYes1.00
Internal433 mm91 mm213 x 433 x 344 mm344 mm±0,05/0,2 mg52/120 g240 V·AC220 V4.667 751EU/UK/CH/US/AUS220 ... 240 V·AC, 50 Hz0,01/0,1 mg0,02/0,1 mgABP 100-5DMVerifiableØ 91 mm8 kg213 mmYes1.00
