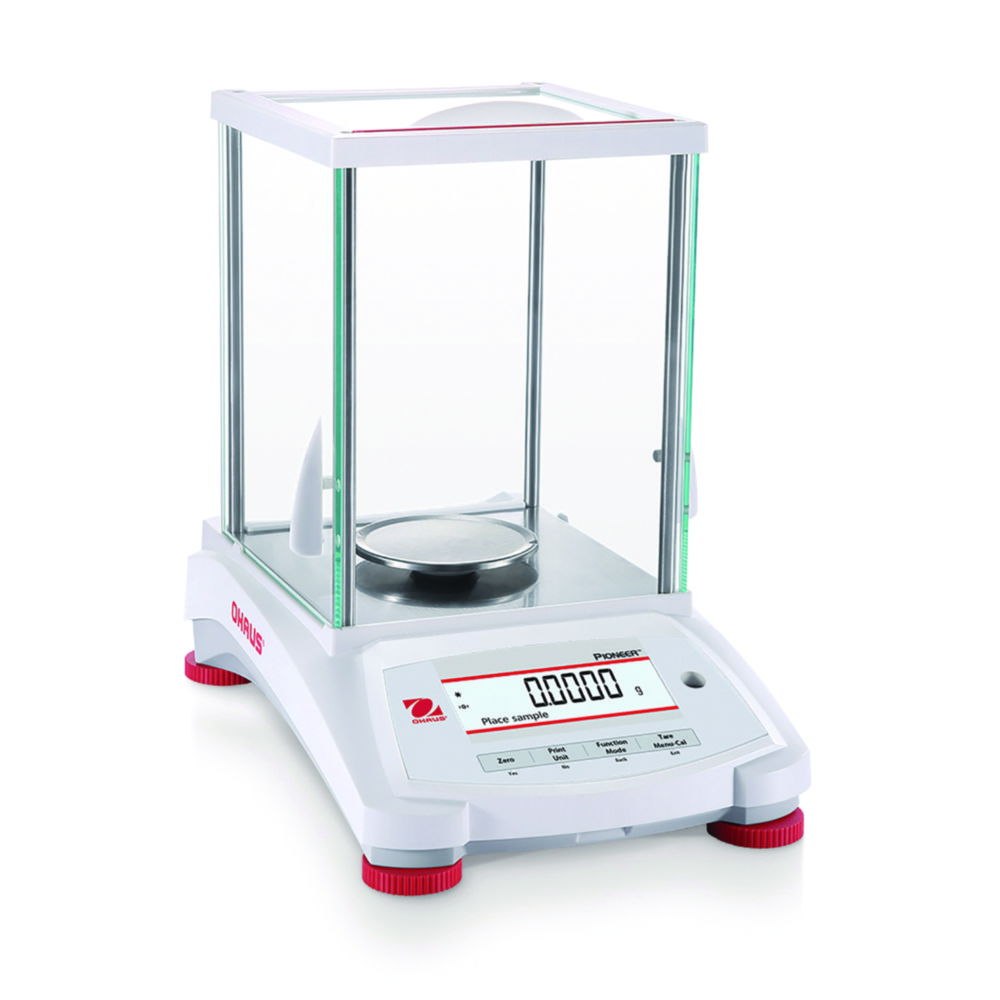

Analytical balances Pioneer® PX

High-performance, economical balances with high accuracy and repeatability for applications in laboratories, industry and education. For basic weighing, parts-counting, percent weighing, dynamic weighing and density determination.

2 line, backlit LCD display

4 quick keys enable the most common weighing modes

Draftshield

USB and RS 232 interface for data exchange with PCs and PLCs

User-selectable span calibration points

Real-time clock with GLP/GMP data

Cast metal lower housing, removable stainless steel weighing pan

Integrated weigh-below-hook

Auto-tare

Many weighing units selectable, a custom unit can be defined

Models with removable side draftshield doors and static removal bar made from ABS

Overload, underload and stability indicator

4 menu languages

Please note:
Models with extra code M are approved instruments according to EN 45501; OIML R76. Models with extra code D are with dual range function.

Toote variatsioonid

Adjusting program	Depth	Depth weighing plate	Dimensions (WxDxH)	Height	Linearity	Max. load	Max. voltage	Min. voltage	Catalog number	Power supply	Readability	Reproducibility	Type	Weighing plate (WxD)	Weight	Width	With draft shield	PK
Internal	321 mm	80 mm	209 x 321 x 309 mm	309 mm	±0,1 mg	52/120 g	240 V	100 V	4.663 321	100 ... 240 V, 50/60 Hz	0,01/0,1 mg	0,02/0,1 mg	PX125DM	Ø 80 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	80 mm	209 x 321 x 309 mm	309 mm	±0,1 mg	82/220 g	240 V	100 V	4.663 325	100 ... 240 V, 50/60 Hz	0,01/0,1 mg	0,02/0,1 mg	PX225DM	Ø 80 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	80 mm	209 x 321 x 309 mm	309 mm	±0,1 mg	52/120 g	240 V	100 V	4.663 320	100 ... 240 V, 50/60 Hz	0,01/0,1 mg	0,02/0,1 mg	PX125D	Ø 80 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	90 mm	209 x 321 x 309 mm	309 mm	±0,2 mg	220 g	240 V	100 V	4.663 331	100 ... 240 V, 50/60 Hz	0,1 mg	0,1 mg	PX224M	Ø 90 mm	4.5 kg	209 mm	Yes	1.00
External	321 mm	90 mm	209 x 321 x 309 mm	309 mm	±0,2 mg	120 g	240 V	100 V	4.663 326	100 ... 240 V, 50/60 Hz	0,1 mg	0,1 mg	PX124/E	Ø 90 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	90 mm	209 x 321 x 309 mm	309 mm	±0,2 mg	120 g	240 V	100 V	4.663 327	100 ... 240 V, 50/60 Hz	0,1 mg	0,1 mg	PX124	Ø 90 mm	4.5 kg	209 mm	Yes	1.00
External	321 mm	120 mm	209 x 321 x 309 mm	309 mm	±20 mg	320 g	240 V	100 V	4.663 332	100 ... 240 V, 50/60 Hz	10 mg	10 mg	PX323/E	Ø 120 mm	4.5 kg	209 mm	Yes	1.00
External	321 mm	90 mm	209 x 321 x 309 mm	309 mm	±0,2 mg	220 g	240 V	100 V	4.663 329	100 ... 240 V, 50/60 Hz	0,1 mg	0,1 mg	PX224/E	Ø 90 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	80 mm	209 x 321 x 309 mm	309 mm	±0,1 mg	82/220 g	240 V	100 V	4.663 324	100 ... 240 V, 50/60 Hz	0,01/0,1 mg	0,02/0,1 mg	PX225D	Ø 80 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	80 mm	209 x 321 x 309 mm	309 mm	±0,1 mg	82 g	240 V	100 V	4.663 323	100 ... 240 V, 50/60 Hz	0,01 mg	0,02 mg	PX85M	Ø 80 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	120 mm	209 x 321 x 309 mm	309 mm	±20 mg	320 g	240 V	100 V	4.663 334	100 ... 240 V, 50/60 Hz	10 mg	10 mg	PX323M	Ø 120 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	120 mm	209 x 321 x 309 mm	309 mm	±20 mg	620 g	240 V	100 V	4.681 174	100 ... 240 V, 50/60 Hz	10 mg	10 mg	PX623	Ø 120 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	120 mm	209 x 321 x 309 mm	309 mm	±20 mg	620 g	240 V	100 V	4.685 015	100 ... 240 V, 50/60 Hz	10 mg	10 mg	PX623M	Ø 120 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	120 mm	209 x 321 x 309 mm	309 mm	±20 mg	320 g	240 V	100 V	4.663 333	100 ... 240 V, 50/60 Hz	10 mg	10 mg	PX323	Ø 120 mm	4.5 kg	209 mm	Yes	1.00
External	321 mm	120 mm	209 x 321 x 309 mm	309 mm	±20 mg	620 g	240 V	100 V	4.681 173	100 ... 240 V, 50/60 Hz	10 mg	10 mg	PX623/E	Ø 120 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	90 mm	209 x 321 x 309 mm	309 mm	±0,2 mg	120 g	240 V	100 V	4.663 328	100 ... 240 V, 50/60 Hz	0,1 mg	0,1 mg	PX124M	Ø 90 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	90 mm	209 x 321 x 309 mm	309 mm	±0,2 mg	220 g	240 V	100 V	4.663 330	100 ... 240 V, 50/60 Hz	0,1 mg	0,1 mg	PX224	Ø 90 mm	4.5 kg	209 mm	Yes	1.00
Internal	321 mm	80 mm	209 x 321 x 309 mm	309 mm	±0,1 mg	82 g	240 V	100 V	4.663 322	100 ... 240 V, 50/60 Hz	0,01 mg	0,02 mg	PX85	Ø 80 mm	4.5 kg	209 mm	Yes	1.00
