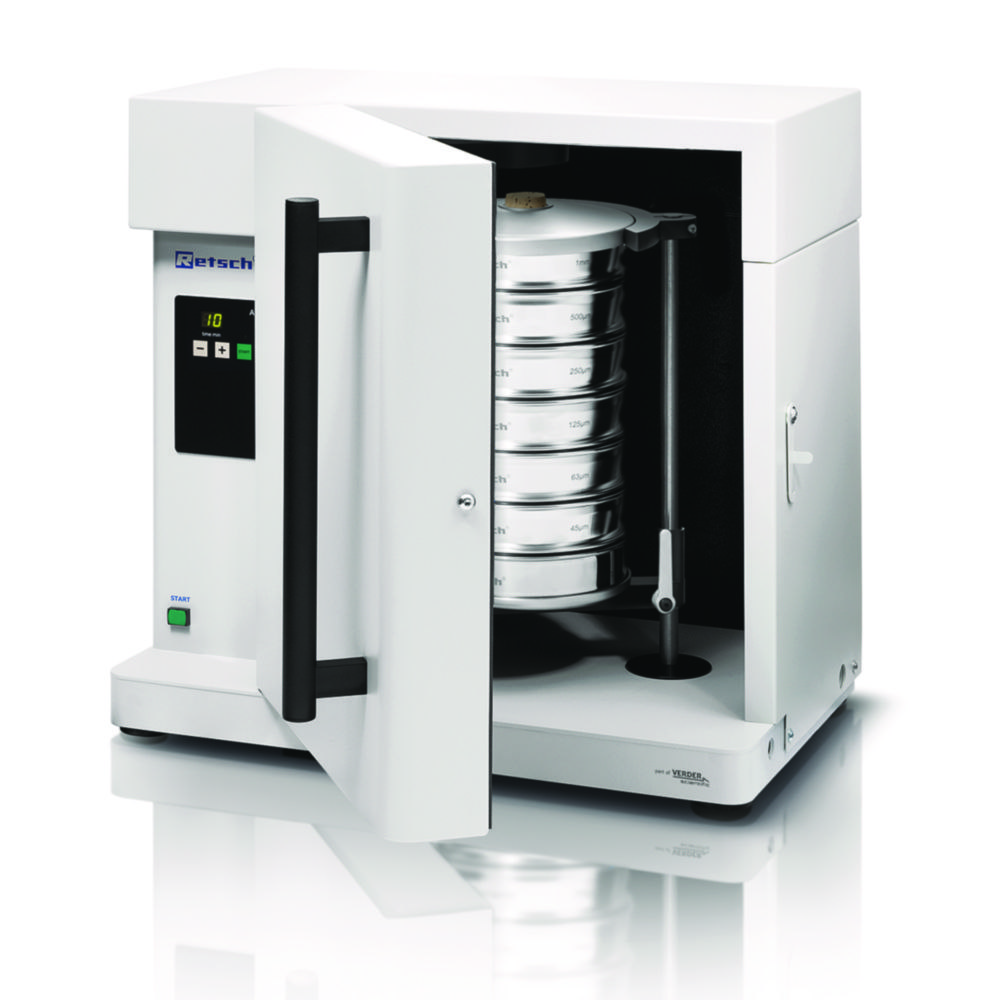

Analytical sieve shakers AS 200 tap, with sound protection cabinet
For sieve analysis of certain products such as activated carbon, abrasives, metal powdee, spices and diamonds, as specified in the corresponding standards.
- Digital time setting
- Suitable for dry sieving
- Short sieving times
- Horizontal circular sieving motion with vertical taps
- Maintenance-free
- Max. number of fractions 7/13
- Incl. software EasySieve for control through RS232 serial interface
Please order test sieves and collecting pan separately.
Toote variatsioonid
| Depth | Height | IP code | Max. feed quantity | Max. measurand | Max. sieve stack mass | Max. voltage | Min. measurand | Catalog number | Plug type | Rated capacity | Type of sieving | Weight | Width | PK | Dimensions (WxDxH) | Measurand range | Power supply | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 520 mm | 670 mm | IP 50 | 3000 g | 25 mm | 6 kg | 230 V | 0.02 mm | 6.238 947 | EU | 180 W | Dry sieving | 92 kg | 700 mm | 1.00 | 700 x 520 x 670 mm | 0.02 ... 25 mm | 230 V, 50 Hz |
