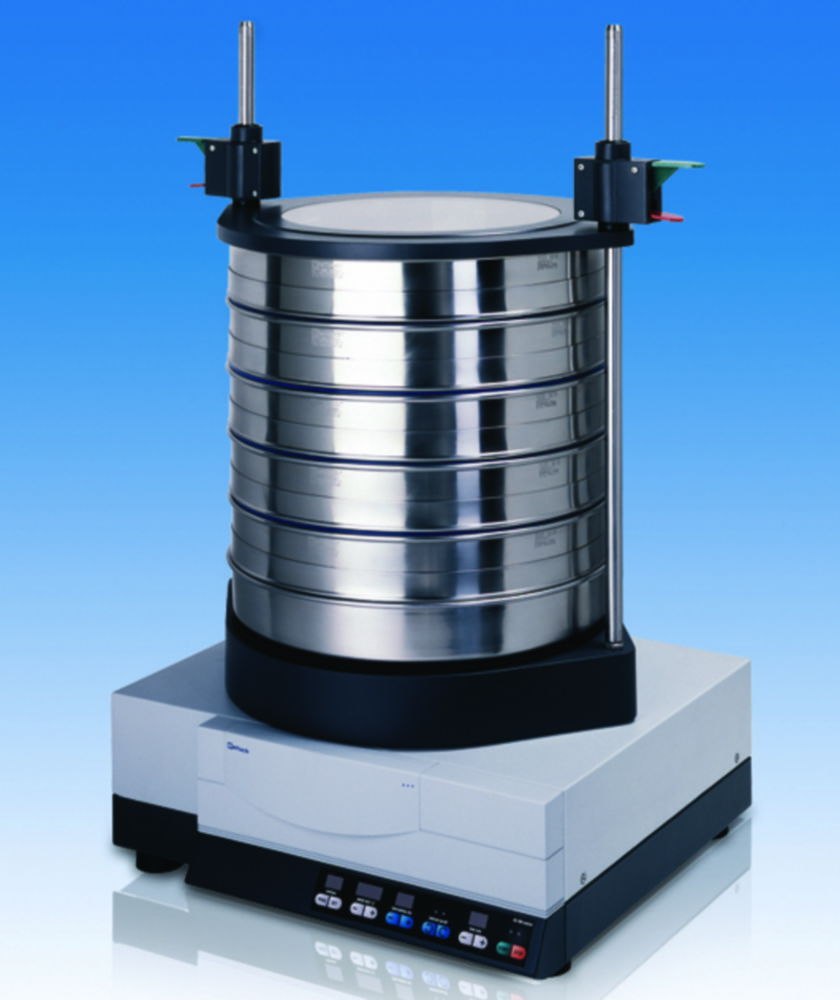

Analytical sieve shakers AS 400 control
The AS 400 control is used for the sieving of dry goods with test sieves of a diameter up to 400 mm. The uniform, horizontal circular motion ensures exact separation of the product to be sieved.
- Digital adjustment of all process parameters (time, speed, interval)
- Short sieving times
- Sieving with circular sieving motion according to DIN 53477
- Maintenance-free
- Interval operation, 1 … 10 min
- Max. number of fractions 7/9/17
- Memory for up to 9 SOPs
- Integrated interface for evaluation software EasySieve®
Please order clamping device, test sieves and collecting pan separately.
Toote variatsioonid
| Depth | Height | IP code | Max. feed quantity | Max. measurand | Max. sieve stack mass | Max. voltage | Min. measurand | Min. voltage | Catalog number | Plug type | Type of sieving | Weight | Width | PK | Dimensions (WxDxH) | Measurand range | Power supply | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 507 mm | 260 mm | IP 21 | 5000 g | 63 mm | 15 kg | 240 V | 0.045 mm | 100 V | 9.739 242 | EU | Dry sieving | 70 kg | 540 mm | 1.00 | 540 x 507 x 260 mm | 0.045 ... 63 mm | 100 ... 240 V, 50/60 Hz |
