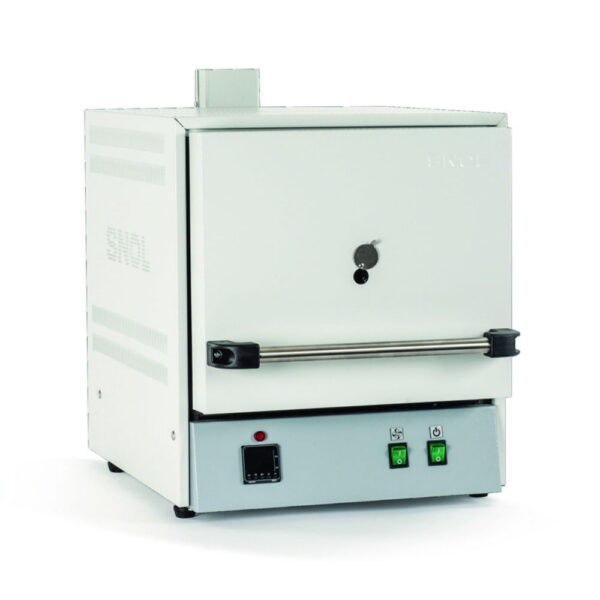

Ashing furnaces SNOL 8.2/1100, up to 1100 °C, Omron E5CC controller

With basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)

Toote variatsioonid

Depth int.	Door opening	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Height int.	Internal dimensions (WxDxH)	Int. width	Max. temperature	Max. voltage	Nominal capacity	Catalog number	Plug type	Power supply	Rated capacity	Type	Weight	PK
310 mm	Downwards	440 x 580 x 495 mm	580 mm	495 mm	440 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.669 214	EU	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LZM21	28 kg	1.00
310 mm	Upwards	445 x 710 x 495 mm	710 mm	495 mm	445 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.669 212	EU	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LHM21	28 kg	1.00
310 mm	Upwards	445 x 710 x 495 mm	710 mm	495 mm	445 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.686 517	UK	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LHM21	28 kg	1.00
310 mm	Downwards	440 x 580 x 495 mm	580 mm	495 mm	440 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.686 519	UK	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LZM21	28 kg	1.00
310 mm	To the left	440 x 580 x 495 mm	580 mm	495 mm	440 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.669 213	EU	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LSM21	28 kg	1.00
310 mm	To the left	440 x 580 x 495 mm	580 mm	495 mm	440 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.686 518	UK	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LSM21	28 kg	1.00
