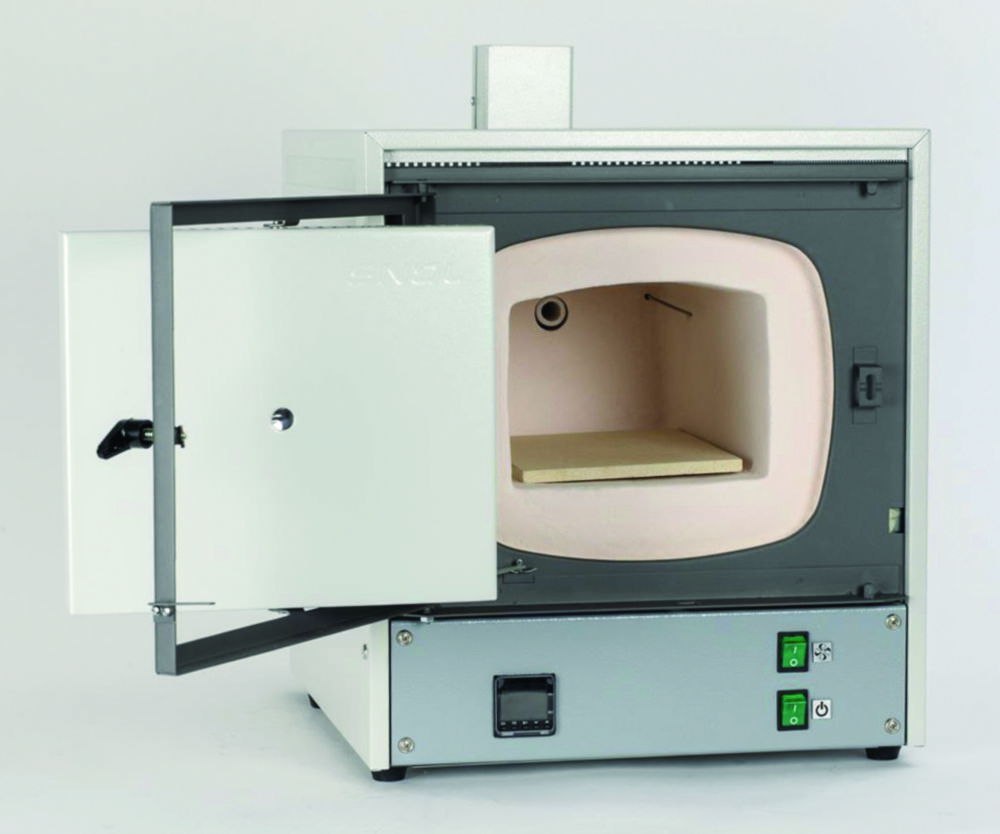

Ashing furnaces SNOL 8.2/1100, up to 1100 °C, Omron E5CC-T controller

With temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments

Toote variatsioonid

Depth int.	Door opening	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Height int.	Internal dimensions (WxDxH)	Int. width	Max. temperature	Max. voltage	Nominal capacity	Catalog number	Plug type	Power supply	Rated capacity	Type	Weight	PK
310 mm	Upwards	445 x 710 x 495 mm	710 mm	495 mm	445 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.669 230	EU	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LHM21	28 kg	1.00
310 mm	Upwards	445 x 710 x 495 mm	710 mm	495 mm	445 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.686 531	UK	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LHM21	28 kg	1.00
310 mm	Downwards	440 x 580 x 495 mm	580 mm	495 mm	440 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.669 232	EU	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LZM21	28 kg	1.00
310 mm	To the left	440 x 580 x 495 mm	580 mm	495 mm	440 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.669 231	EU	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LSM21	28 kg	1.00
310 mm	To the left	440 x 580 x 495 mm	580 mm	495 mm	440 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.686 532	UK	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LSM21	28 kg	1.00
310 mm	Downwards	440 x 580 x 495 mm	580 mm	495 mm	440 mm	135 mm	195 x 310 x 135 mm	195 mm	1100 °C	230 V	8 l	4.686 533	UK	230 V, 50 Hz	1800 W	SNOL 8.2/1100 LZM21	28 kg	1.00
