Aspirator LLG-uniVACUUSYS

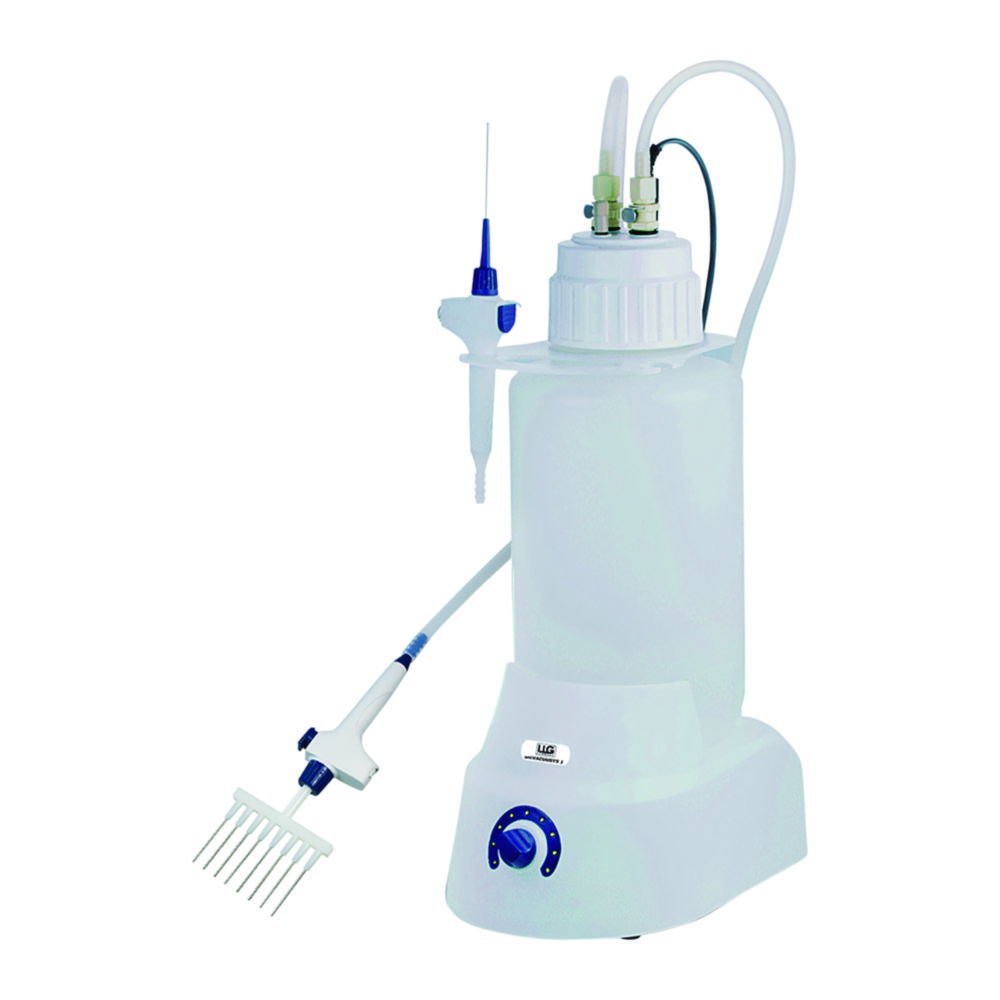

LLG-uniVACUUSYS Vacuum Aspiration System with integrated vacuum pump and vacuum controller is ideally suited for aspirating liquids in Life Science applications, e.g. the removal of media from cell cultures, aspiration of supernatants after centrifugation, or the removal of wash solutions from Immuno assay plates. The set vacuum is automatically re-adjusted in case of deviations.
- Integrated vacuum pump with vacuum control
- Easy to use
- Self-closing connectors for quick installation and prevention of liquid or aerosol escape
- Liquid level sensor, prevents liquid overflow
- Autoclavable waste collection bottle and nozzle
Please order compatible 4l replacement bottle with 7.048 064.
Scope of supply: Vacuum Aspiration System with integrated vacuum pump, 4 liter waste collection bottle, single channel needles and 8-channel needle aspirator handles, single channel and 8-channel adaptor for 200 µl pipette tips, single channel adaptor for 1000 µl pipette, tubing and quick-connectors
- Specifications
- Vacuum range: 300 … 600 mbar (adjustable)
- Aspiration rate: 1 … 15 ml/s
- Noise emission: <50 dB(A)
- Dimensions (W x D x H): 180 x 320 x 530 mm
- Weight: 3.4 kg
- Power supply: 100 … 240 V, 50/60 Hz
- Warranty: 3 years
Toote variatsioonid
| Type | Plug type | Catalog number | PK | Aspiration rate | Depth | Dimensions (WxDxH) | Height | Max. vacuum | Max. voltage | Min. vacuum | Min. voltage | Noise level | Plug type | Power supply | Type | Waranty | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LLG-uniVACUUSYS | UK | 6.263 586 | 1.00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| - | - | 6.263 585 | 1.00 | 17 ml/s | 240 mm | 180 x 240 x 450 mm | 450 mm | 600 mbar | 240 V | 300 mbar | 100 V | 50 db(A) | EU | 100 ... 240 V, 50/60 Hz | LLG-uniVACUUSYS | 3 years | 3.4 kg | 180 mm |
