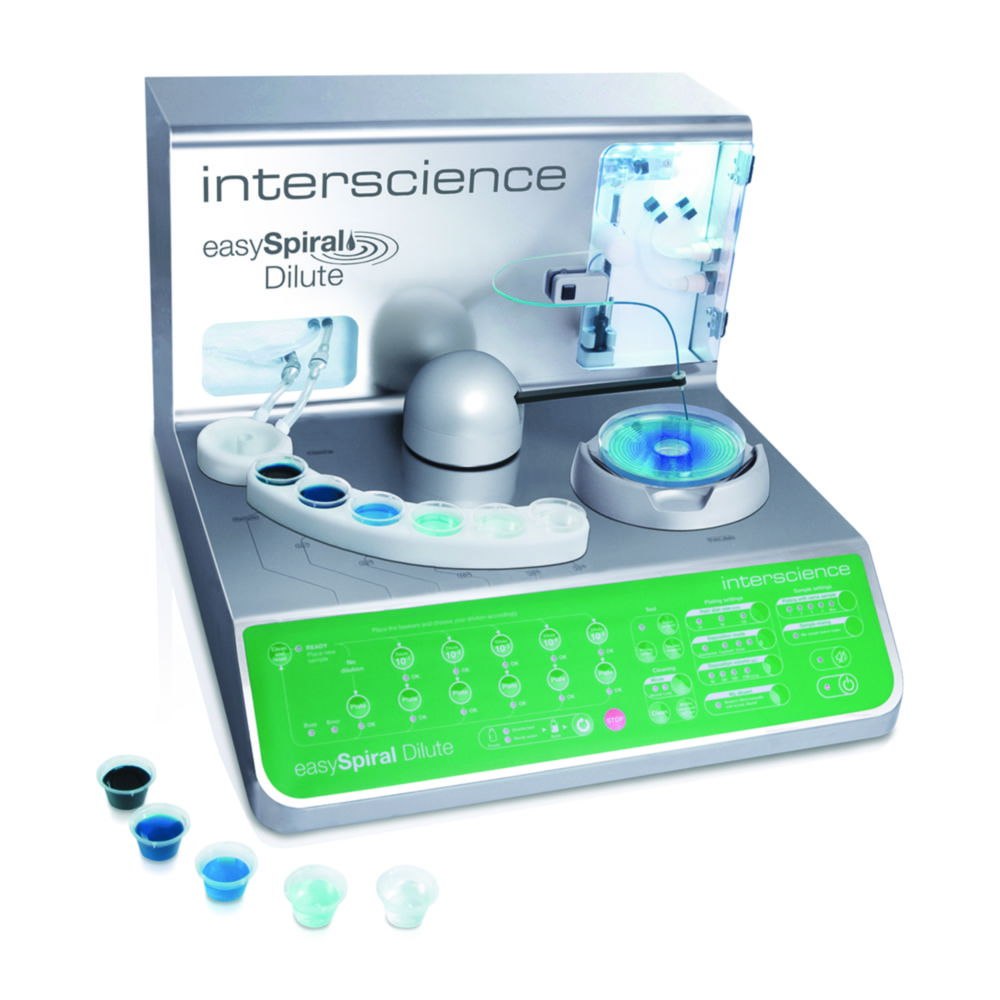

Automatic spiral plater and diluter easySpiral® Dilute

A 2-in-1 unit for automatic plating with the possibility of combined serial dilution series. The instrument allows up to 5 serial 1/10 dilutions of a sample to be prepared and then automatically plated onto a Petri dish. Patented circular application: 3 dilutions on a 90 mm Petri dish, 6 dilutions on a 150 mm Petri dish. The countable range is between 30 and 1×10¹² CFU/mL on a single Petri dish.

• Times (for different sample viscosities) and volumes are also programmable via USB
• Traceability through Excel™ Export, Data Matrix label
• Intensive cleaning
• Patented overflow technology cleaning system
• 8 bar pump pressure
• 2 fully autoclavable bottles (diluents and disinfectants) and connectors

• Specifications
• Petri dish size: 55 … 150 mm
• Syringe capacity: 1000 µl
• Volume dispensed: 10 … 1000 µl
• Counting range: 30 … 1×10¹² CFU/ml
• Full cycle time: 134 seconds
• Preset pipetting volumes: 50, 100 und 200 µl
• Plating modes: exponential, circles, uniform, pour plate
• Cleaning autonomy: 1000 cycles (2 l bottles)
• Dimensions (W x D x H): 400 x 415 x 290 mm
• Weight: 16.4 kg
• Power supply: 100-240 V /50-60 Hz
