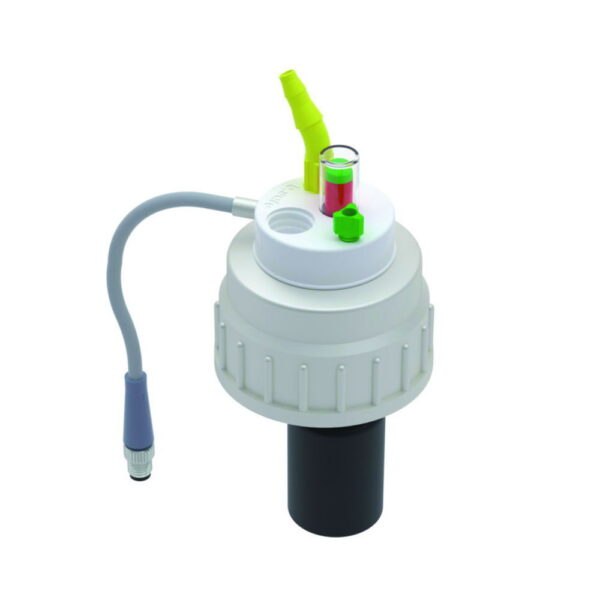

b.safe Waste Caps B 53, PE, with electronic fill level control
Screw cap with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).
The Waste Caps are supplied with a permanently mounted cable (400 mm length) to connect the b.safe display for level control. The red indicator pin on the Waste Caps enables visual monitoring of the fill level.
Scope of supply: fittings (UNF 1/4“), blind fitting (UNF 1/4“), hose olive (NPT 1/8″)
|Hose connections||Material||No. of blind plugs||No. of fittings||No. of|
|1||PE||1||1 x 1,6/ 2,2/ 3,2 mm||1||4.681 568||B 53||1.00|
