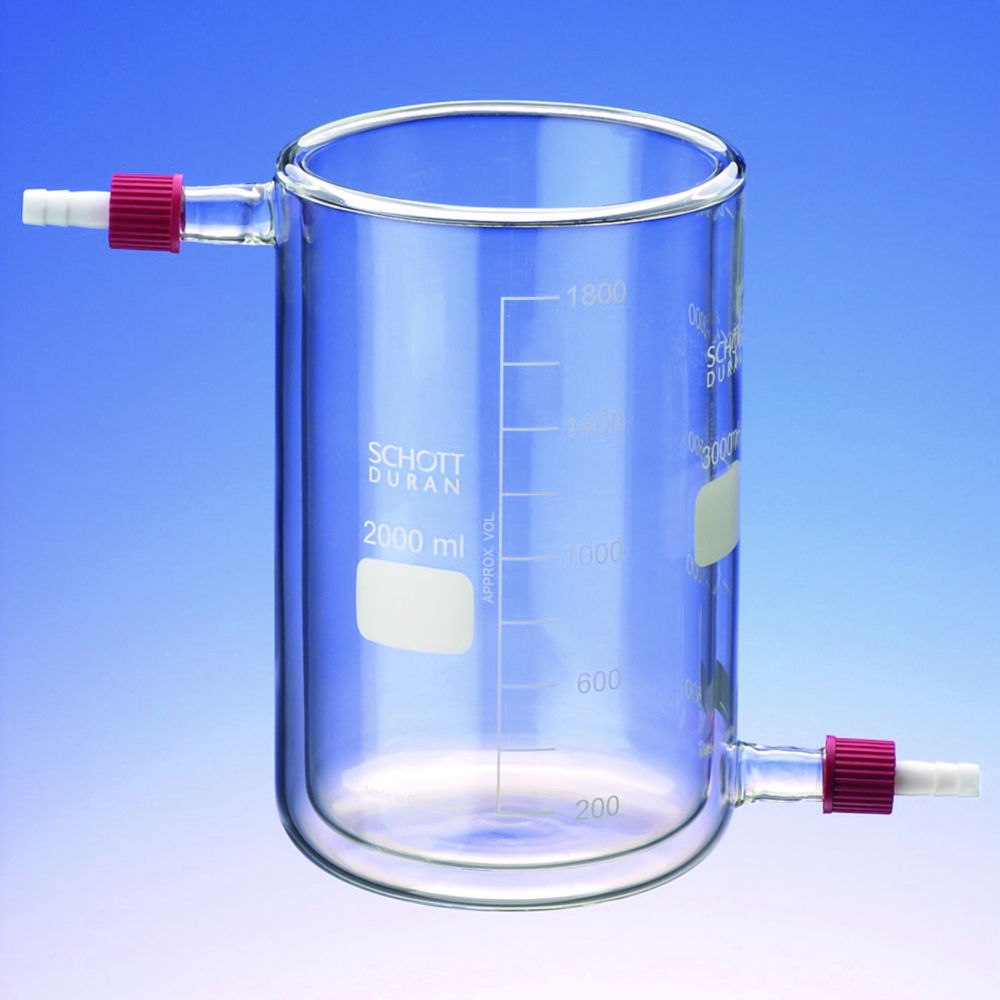

Beakers, glass, jacketed wiht PTFE-Olive, type T-GL
DURAN®. For heating and cooling liquids. Thermostatting liquid is circulating between the double walls of the beaker jacket. With glass-screw connections GL14 with PTFE olives (O.D. 9mm, T-GL2000 with GL18 and O.D. 11mm) for thermostat hoses. Coolant ram pressure: 0.5bar at maximum, operating temperature: +120°C at maximum. Special sizes available on request.
Toote variatsioonid
| Connection | Ext. Ø | Ext. height | Height int. | Int. Ø | Material | Nominal capacity | Catalog number | Thread | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PTFE olive | 70 mm | 120 mm | 115 mm | 55 mm | Boro 3.3 | 250 ml | 9.032 372 | GL 14 | 1.00 | ||
| PTFE olive | 95 mm | 150 mm | 135 mm | 77 mm | Boro 3.3 | 600 ml | 9.032 374 | GL 14 | 1.00 | ||
| PTFE olive | 135 mm | 210 mm | 200 mm | 112 mm | Boro 3.3 | 2000 ml | 9.032 377 | GL 18 | 1.00 |
