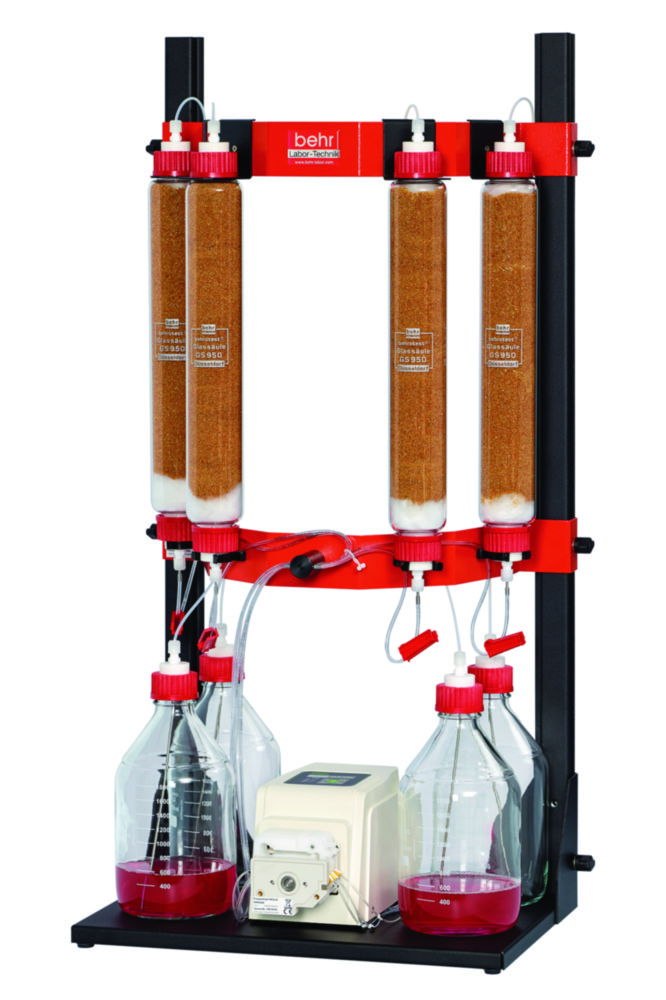

behrotest ® column elution unit for the elution of soil samples
Column elution unit in acc. with the LUA recommendation with 4-channel hose pump with controllable speed. The unit consists of :
- Assembly stand for the system
- Controllable 4-channel hose pump with fixed speed
- Storage vessel, 20 l
- 4 elution columns, internal diameter 6 cm, 32 cm long, with 2 screwed joints (GL 45, with PTFE inserts) for simple filling of the columns
- 4 collection bottles for the column eluate, 2 l, with screwed joint (GL 45) and deaeration
- Supply tube made of TYGON and PVC, with non-return valve in the supply to the column
- PTFE tubes between columns and collection vessels
- Flow rate 0.003 to 35 ml/min
- Range of speed 2 to 100 min-1
- Simultaneous control of all 4 channels
Toote variatsioonid
| Catalog number | PK | Depth | Dimensions (WxDxH) | Height | Type | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 9.843 741 | 1.00 | 400 mm | 550 x 400 x 1,000 mm | 1000 mm | SEB 32 R | 22 kg | 550 mm |
