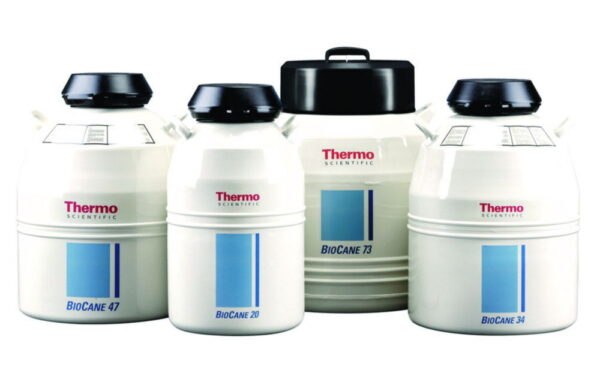

Bio-Cane Canister and Cane Systems
Bio-Cane Cane and Canister Systems cost-effectively store cell, tissues or other biological samples. Available in four sizes, the system can safely hold samples for up to seven months without replenishing LN2.
- With stainless-steel canisters to accommodate vials
- Canisters are numbered and color-coded to simplify sample identification
- Durable aluminum construction and vacuum insulation
- Narrow-mouth design minimizes LN2 evaporation
- Secure locking clasp
Toote variatsioonid
| Ø | Dimensions (ØxH) | Static evaporation rate | Height canister | Height | Material container | Neck Ø | No. of canisters | Nominal capacity | Catalog number | Specimen storage | Static holding time | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 368 mm | 368 x 653 mm | 0.09 l/24h | 279 mm | 653 mm | Stainless steel | 51 mm | 6 | 20.5 l | 4.010 371 | Yes | 227 d | BioCane 20 | 1.00 | ||
| 462 mm | 462 x 676 mm | 0.18 l/24h | 279 mm | 676 mm | Stainless steel | 88 mm | 6 | 34.8 l | 4.010 372 | Yes | 193 d | BioCane 34 | 1.00 | ||
| 508 mm | 508 x 673 mm | 0.39 l/24h | 279 mm | 673 mm | Stainless steel | 127 mm | 6 | 47.4 l | 4.010 373 | Yes | 121 d | BioCane 47 | 1.00 |
