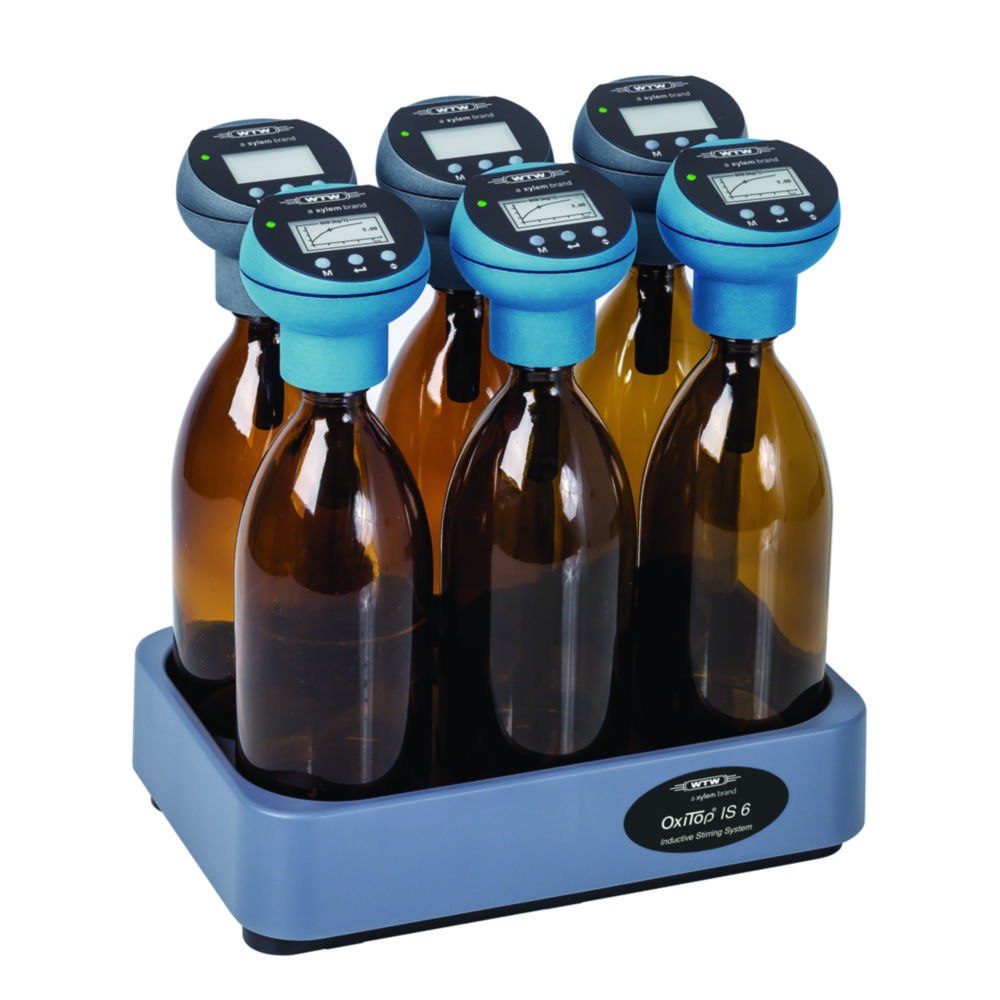

BOD measurement system OxiTop®-i IS 6 / 12
Easy-to-use, respirometric measuring system for determining the biological oxygen demand (BOD). The method is based on changes of pressure in a closed system using measuring heads attached to the sample bottles. The BOD can be determined simultaneously in up to 6 or 12 samples.
- No dilution of the sample required
- Direct reading of the BOD, the time course and the intermediate values on the graphical display of the measuring heads
- Input of the used sample volume directly at the measuring head
- Monitoring time between 1 and 7 days
- Permanent display of the current status at each measuring head
- Coloured measuring heads with adjustable, numerical sample identification
Scope of supply: OxiTop®-i IS 6: 6 x measuring heads (3 x blue, 3 x grey), 6 x sample bottles PF600, 6 x rubber quivers, overflow measurement flasks, 6 x stirring rods, stirring rod remover, stirring platform SI 6
OxiTop®-i IS 12: 12 x measuring heads (6 x blue, 6 x grey), 12 x sample bottles PF600, 12 x rubber quivers, overflow measurement flasks, 12 x stirring rods, stirring rod remover, stirring platform SI 12
An incubator is required to operate the OxiTop®-i IS. Please order separately.
Toote variatsioonid
Catalog number | PK | Battery/rechargeable battery | Designation IEC | Max. pressure | Max. voltage | Measured range | Measuring time | Min. pressure | Min. voltage | Plug type | Power supply | Pressure | Type | Kogus | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.667 879 | 1.00 | 1 x CR2450 | CR2450 | 1250 hPa | 240 V | 0 ... 4,000 mg/l | 7 d | 500 hPa | 100 V | Universal | 100 ... 240 V, 50/60 Hz | 500 ... 1,250 hPa | OxiTop®-i IS 12 | ||
7.940 936 | 1.00 | 1 x CR2450 | CR2450 | 1250 hPa | 240 V | 0 ... 4,000 mg/l | 7 d | 500 hPa | 100 V | Universal | 100 ... 240 V, 50/60 Hz | 500 ... 1,250 hPa | OxiTop®-i IS 6 |
