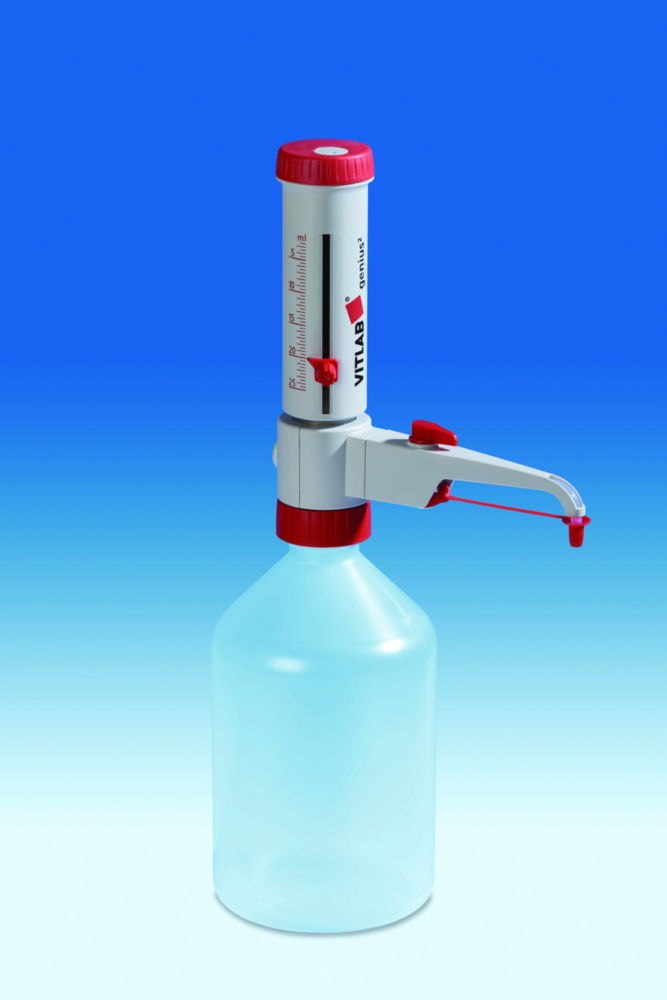

Bottle top dispenser VITLAB® genius2
With recirculation valve and calibration mechanism.
- Quick, easy and precise volume adjustment due to interior scalloped track and practical screw mechanism
- Innovative recirculation valve avoids reagent waste
- No drips after tube has been capped
- Easy calibration adjustment
- High-quality materials (PTFE, PFA, FEP, borosilicate glass, platinum-iridium) ensure good chemical resistance to most acids, solvents and bases
- A positive displacement plunger with PFA seal minimizes the crystallization of liquids and therefore the possibility of the plunger jamming
- Easy to dismantle for cleaning, no tools necessary
- Can be rotated 360° on bottle
- DE-M marked
- With screwable discharge valve
Scope of supply:
Bottle top dispenser, thread adapter GL 25, GL 28, GL 32, GL 38, S 40 (2 – 10 ml), thread adapter GL 32, GL 38, S 40 (25 – 100 ml), telescopic filling tube, recirculation valve, operation manual, quality certificate, mounting tool
Toote variatsioonid
| Accuracy | Autoclavable | Division | Dosing volume | Length suction tube | Catalog number | Precision | Thread | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0,5 ± R% | Yes | 0.10 ml | 0.5 ... 5 ml | 240 mm | 6.283 977 | 0.1 ≤·VK% | GL 45 | 1.00 | ||
| 0,5 ± R% | Yes | 0.20 ml | 1.0 ... 10 ml | 240 mm | 6.283 978 | 0.1 ≤·VK% | GL 45 | 1.00 | ||
| 0,5 ± R% | Yes | 0.50 ml | 2.5 ... 25 ml | 330 mm | 6.283 979 | 0.1 ≤·VK% | GL 45 | 1.00 | ||
| 0,5 ± R% | Yes | 1.00 ml | 5.0 ... 50 ml | 330 mm | 6.283 980 | 0.1 ≤·VK% | GL 45 | 1.00 | ||
| 0,5 ± R% | Yes | 1.00 ml | 10.0 ... 100 ml | 330 mm | 6.283 981 | 0.1 ≤·VK% | GL 45 | 1.00 | ||
| 0,5 ± R% | Yes | 0.05 ml | 0.2 ... 2 ml | 240 mm | 6.283 976 | 0.1 ≤·VK% | GL 45 | 1.00 |
