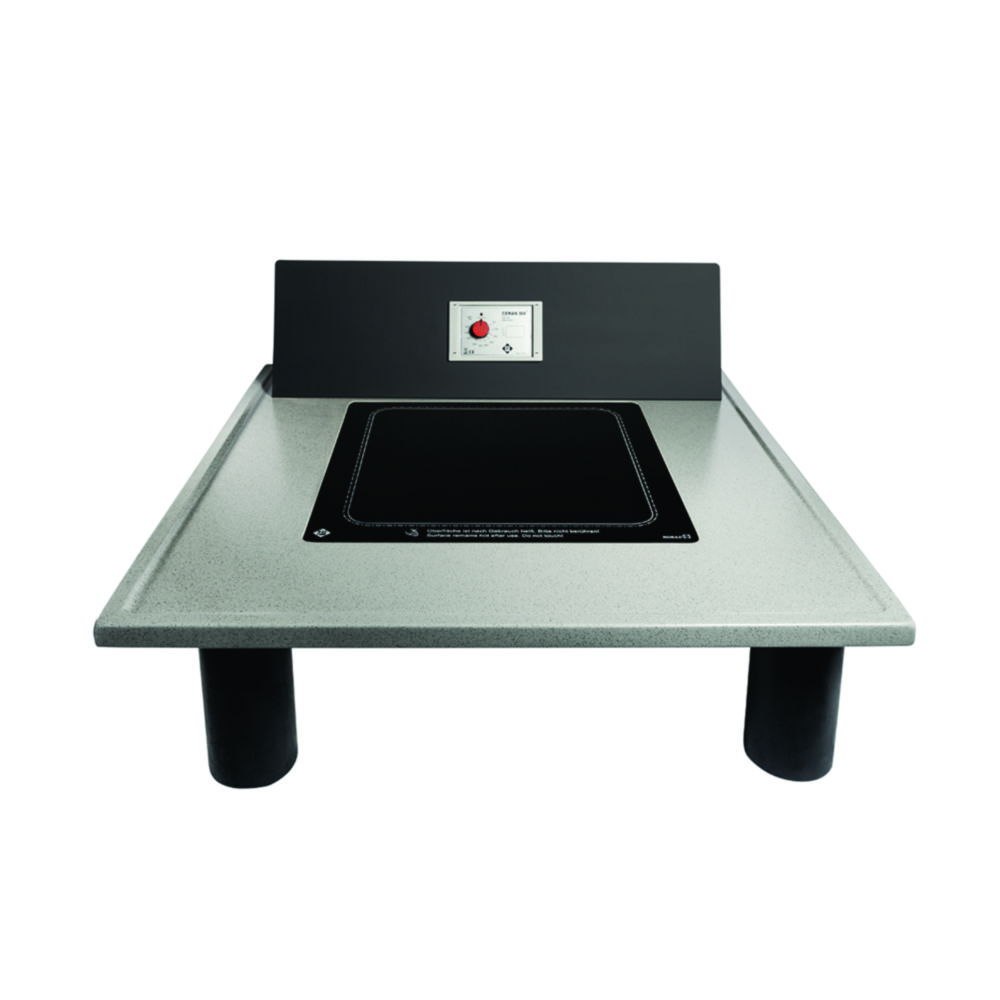

Built-in hotplates series EB-C, CERAN®
The EB-C series is designed for table installation, and is supplied with installation suspension. The separate controller housing can be installed directly into the table frame. Electrical connections between controller housing and hotplate are protected by a flexible metal hose. Conductor length between controller housing and hotplate 0.65 m.
- Heated area marked on CERAN® heating surface
- No heat loss to table top and heating surface edges
Toote variatsioonid
| Depth heating area | Depth | Dimensions (WxDxH) | Display | Heating capacity | Height | atr_llg_material_hotplate | Max. temperature | Max. voltage | Min. temperature | atr_llg_no_of_hotplates | Operation | Catalog number | Power supply | Type | Type of display | Weight | Width heating area | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 410 mm | 440 mm | 290 x 440 x 100 mm | Analogue | 3000 W | 100 mm | Glass ceramic | 500 °C | 230 V | -50 °C | 1 | Rotary knob | 6.274 140 | 230 V, 50...60 Hz | 22EB-C | Without display | 6.5 kg | 260 mm | 290 mm | 1.00 | ||
| 260 mm | 290 mm | 290 x 290 x 100 mm | Analogue | 2000 W | 100 mm | Glass ceramic | 500 °C | 230 V | -50 °C | 1 | Rotary knob | 6.323 103 | 230 V, 50...60 Hz | 11EB-C | Without display | 5.5 kg | 260 mm | 290 mm | 1.00 | ||
| 410 mm | 440 mm | 590 x 440 x 100 mm | Analogue | 5700 W | 100 mm | Glass ceramic | 500 °C | 400 V·3/N/PE | -50 °C | 1 | Rotary knob | 7.658 541 | 400 V·3/N/PE, 50/60 Hz | 44EB-C | Without display | 11.5 kg | 560 mm | 590 mm | 1.00 | ||
| 410 mm | 440 mm | 440 x 440 x 100 mm | Analogue | 4400 W | 100 mm | Glass ceramic | 500 °C | 400 V·3/N/PE | -50 °C | 1 | Rotary knob | 6.291 518 | 400 V·3/N/PE, 50/60 Hz | 33EB-C | Without display | 9.0 kg | 410 mm | 440 mm | 1.00 |
