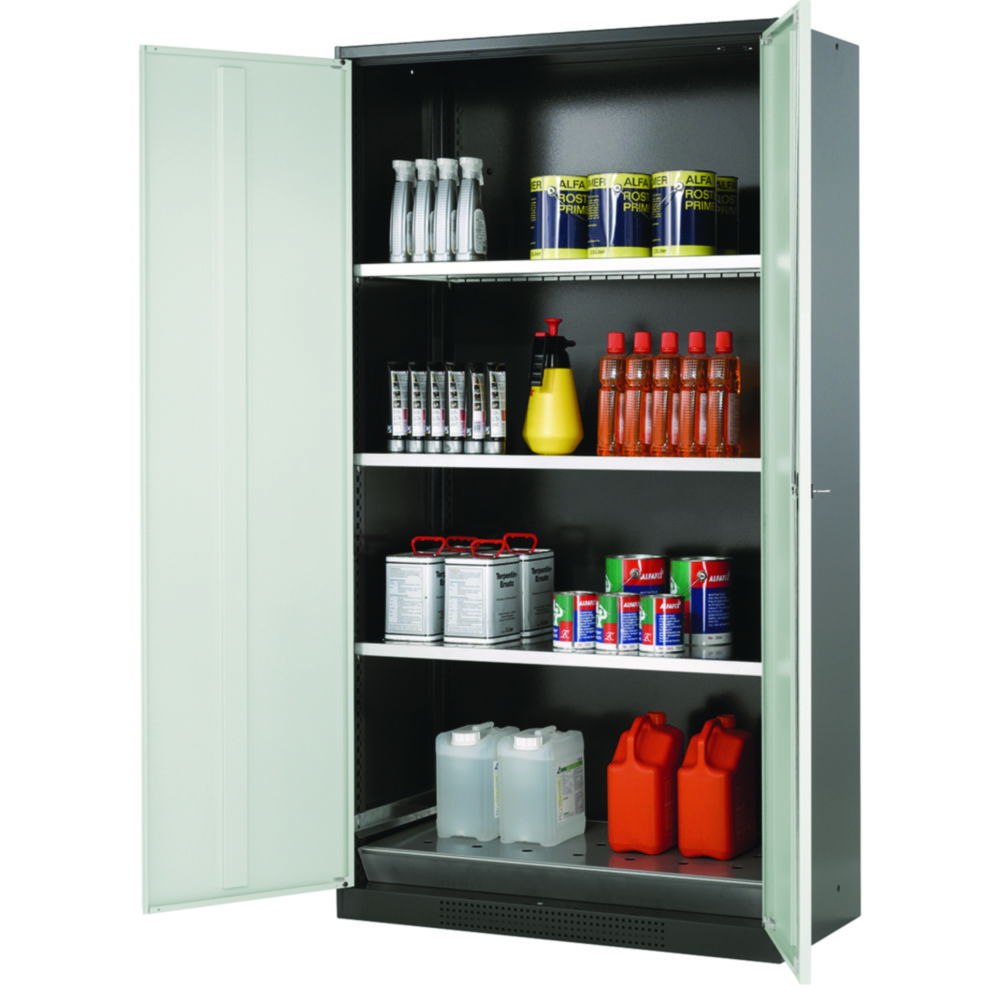

Cabinets for chemicals CS-CLASSIC with wing doors
- safe and approved storage of non-flammable chemicals and toxic substances in workrooms
- robust construction and longevity, body made of sheet steel with high grade structured paint finish, colour: body anthracite grey RAL 7016, doors light grey (RAL 7035), door colour pure white(RAL 9010) available on request
- doors lockable with cylinder locking (integrated in the turning handle)
- integrated adjusting aids to compensate for uneven floor
- reduction of odours inside the cabinet with natural ventilation due to vent openings at the cabinet bottom
- doors optional with large glas openings for an optimal view on stored chemicals while doors are closed
- interior equipment sheet steel galvanised, pull-out shelf with sump made of PE
Shelves, height adjustable (25 mm increments), bottom collecting sump with perforated insert as a first storage level. Shelf load capacity (evenly distributed load): 100 kg (model width 1055 mm), 50 kg (model width 545 mm). Capacity bottom collecting sump: 33 litre (model width 1105 mm), 22 litre (model width 545 mm).
Supplied with: Cabinet for chemicals CS-CLASSIC Model CS.195.105 or CS.195.054 incl. interior equipment with 3 shelves, bottom collecting sump with perforated insert as a first storage area
A wide variety of cabinet versions is available. Please enquire.
Toote variatsioonid
Catalog number | PK | Colour body | Colour doors | Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Standard | Type | Version cabinet | Weight | Kogus | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9.840 688 | 1.00 | Anthracite | Light grey | 493 mm | 545 x 520 x 1,950 mm | 520 mm | 1950 mm | 545 mm | 1835 mm | 486 x 493 x 1,835 mm | 486 mm | DIN EN 16121/16122 | CS.195.054 | Tall cabinet | 74 kg | ||
9.840 687 | 1.00 | Anthracite | Light grey | 493 mm | 1,055 x 520 x 1,950 mm | 520 mm | 1950 mm | 1055 mm | 1835 mm | 996 x 493 x 1,835 mm | 996 mm | DIN EN 16121/16122 | CS.195.105 | Tall cabinet | 110 kg |
