Carbon Dioxide Safety Monitor AX60

Gas warning device for precise measurement of the amount of CO2 in the air. 3 alarm settings factory set: Time-weighted average (TWA) alarm (5000 ppm; 0.5% CO₂), Low alarm (15,000 ppm; 1.5% CO₂) and High alarm (30,000 ppm; 3% CO₂)

• No calibration required (unless local regulations state otherwise)
• Very long life sensor can last up to 15 years
• Up to 4 x CO₂sensors and 8 x CO₂ alarms can be used per Central Display Unit
• Supplied with a relay on each alarm which can be used to trigger ventilation, extraction or a building management system
• Easy installation and maintenance can be conducted by the user
• Additional (quick connect) CO₂ sensors and alarms available if more than one entrance to the laboratory or more than one risk area
• Assists in compliance with Exposure Limit regulations such as EH40

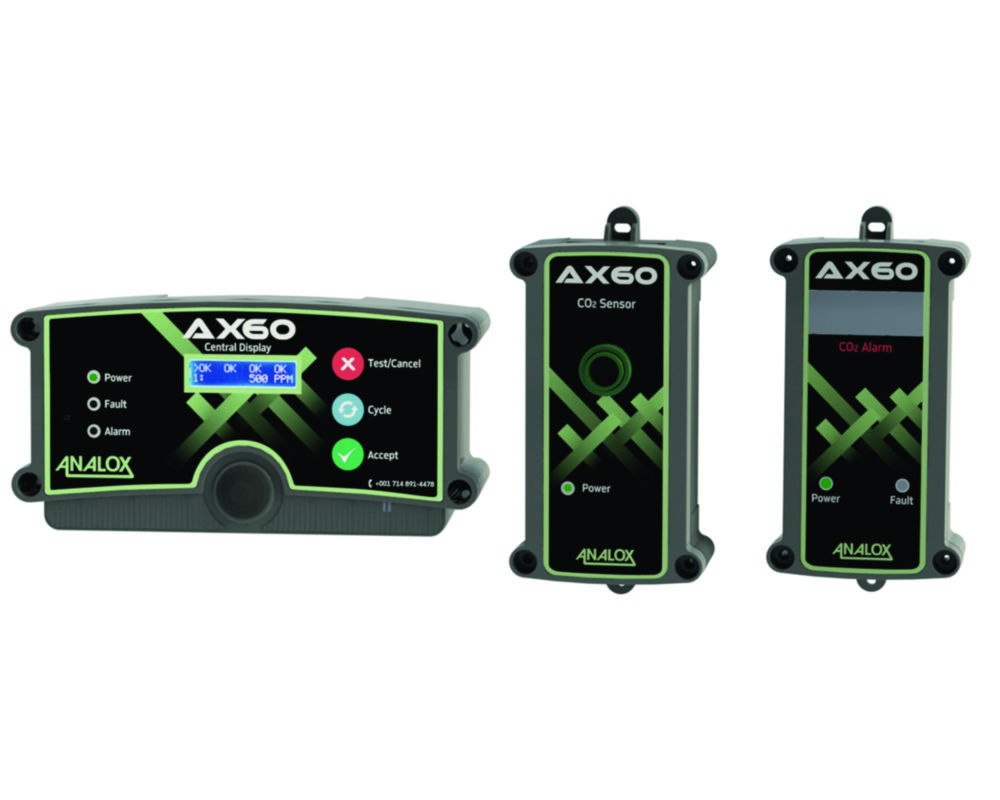

Scope of delivery: wall-mounted central display unit, CO₂ sensor and CO₂ alarm which can provide an early warning of a CO₂ leak.

• Specifications:
• Range :
  Accuracy : 0.1 to 5 % CO₂
  +/- 5 % of alarm setpoint
• Alarm intensity : 88 dbA
• Monitor Display : 16 digit 2 line LCD in ppm
• TWA Alarm : 5,000 ppm (0.5 %) over 8 hours
• CO₂ Alarms : 15,000 ppm (1.5 %) and 30,000 ppm (3 %)
• Operating Temperature : -5 to 50 °C
• Central Unit Dimensions : 175 x 110 x 75 mm
• Sensor & Alarm Dimensions : 72 x 170 x 45 mm
• IP Rating : IP55 (IP54 Central Display Unit)
• Warranty : 5 years for electronics and sensor
