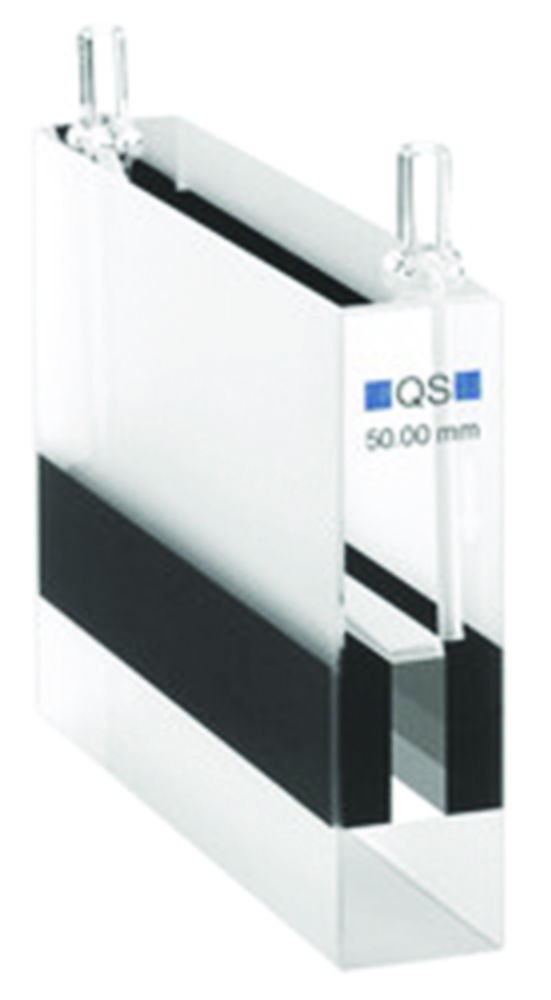

Cells for Absorption Measurement, Flow-Through Measurement, UV-range
Optical material:
QS: Quartz glass High Performance, wavelength range: 200 – 2500 nm.
OS: Special Optical Glass, wavelength range: 320 – 2500 nm.
Toote variatsioonid
| Type | Description | Internal width mm | External dimensions (W x D x H) mm | Material | Path length mm | Capacity µl | Centre height mm | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| semi-micro* | Supply and outlet tubes | 11 x 4 | 12.5 x 12.5 x 45 | QS | 10 | 450 | 15.0 | 6.051 845 | 1.00 | ||
| semi-micro* | 2 screw terminals * | 11 x 3.5 | 12.5 x 12.5 x 35 | QS | 5 | 195 | 15.0 | 6.059 697 | 1.00 | ||
| semi-micro* | 2 screw terminals * | 11 x 3.5 | 12,5 x 52.5 x 35 | QS | 50 | 1950 | 15.0 | 6.231 336 | 1.00 | ||
| micro | Supply and outlet tubes | 17.5 x 6.5 | 12.5 x 12.5 x 35 | QS | 2 | 240 | - | 6.201 456 | 1.00 | ||
| micro | 2 screw terminals * | 17.5 x 3.5 | 12,5 x 12,5 x 35 | QS | 0.2 | 12 | - | 6.206 587 | 1.00 | ||
| semi-micro* | 2 screw terminals * | 11 x 3.5 | 12.5 x 12.5 x 35 | QS | 10 | 390 | 15.0 | 9.144 667 | 1.00 | ||
| macro | Supply and outlet tubes | 20 x 9 | 12.5 x 12.5 x 45 | QS | 10 | 2600 | - | 6.073 105 | 1.00 | ||
| compact | 2 screw terminals * | Ø 2 | 35 x 12,5 x 12,5 | OS | 10 | 30 | 8.5 | 6.320 154 | 1.00 | ||
| macro | Supply and outlet tubes | 20 x 9 | 12.5 x 3.5 x 45 | QS | 1 | 260 | - | 7.920 095 | 1.00 | ||
| micro | 2 screw terminals * | 17.5 x 3.5 | 12.5 x 12.5 x 35 | QS | 0.5 | 31 | - | 9.144 662 | 1.00 | ||
| semi-micro* | 2 screw terminals * | 11 x 3.5 | 12.5 x 12.5 x 35 | QS | 10 | 390 | 8.5 | 9.144 666 | 1.00 | ||
| micro | 2 screw terminals * | Ø 3 | 12.5 x 12.5 x 35 | QS | 10 | 80 | 8.5 | 7.601 951 | 1.00 | ||
| micro | 2 screw terminals * | 17.5 x 3.5 | 12.5 x 12.5 x 35 | QS | 1 | 62 | - | 9.144 664 | 1.00 | ||
| micro | 2 screw terminals * | Ø 3 | 12.5 x 12.5 x 35 | QS | 10 | 80 | 15.0 | 6.300 086 | 1.00 | ||
| compact | 2 screw terminals * | Ø 1.5 | 35 x 12,5 x 12,5 | OS | 10 | 18 | 8.5 | 9.144 672 | 1.00 | ||
| micro | 2 screw terminals * | 17.5 x 3.5 | 12.5 x 12.5 x 35 | QS | 2 | 124 | - | 9.144 663 | 1.00 | ||
| micro | Supply and outlet tubes | 17.5 x 6.5 | 12.5 x 12.5 x 35 | QS | 1 | 120 | - | 6.052 902 | 1.00 | ||
| semi-micro* | Supply and outlet tubes | 11 x 4 | 12.5 x 52.5 x 38.5 | QS | 50 | 2250 | 8.5 | 6.242 811 | 1.00 | ||
| micro | Supply and outlet tubes | Ø 3 | 12.5 x 12.5 x 38.5 | QS | 10 | 80 | 8.5 | 6.059 972 | 1.00 | ||
| semi-micro* | 2 screw terminals * | 11 x 3.5 | 12.5 x 12.5 x 35 | QS | 5 | 195 | 8.5 | 6.300 696 | 1.00 | ||
| macro | Supply and outlet tubes | 11 x 6.5 | 12.5 x 12.5 x 38.5 | QS | 10 | 750 | 8.5 | 6.072 360 | 1.00 | ||
| macro | Supply and outlet tubes | 33 x 9.5 | 12.5 x 12.5 x 45 | QS | 10 | 3200 | - | 6.056 433 | 1.00 | ||
| macro | Supply and outlet tubes | 11 x 6.5 | 12.5 x 12.5 x 45 | QS | 10 | 750 | 15.0 | 6.201 457 | 1.00 | ||
| micro | 2 screw terminals * | 17.5 x 3.5 | 12.5 x 12.5 x 35 | QS | 0.1 | 6 | - | 9.144 660 | 1.00 | ||
| semi-micro* | Supply and outlet tubes | 11 x 4 | 12.5 x 52.5 x 45 | QS | 50 | 2250 | 15.0 | 6.080 156 | 1.00 |
