Cells for Absorption Measurement, Vis-range
Toote variatsioonid
| Type | Description | optical material | Internal width mm | External dimensions (W x D x H) mm | Path length mm | Capacity µl | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| large cuvette | Large cuvette, glass lid | OG | 50 | 55 x 55 x 52.5 | 50 ± 0.2 | 88000 | 6.088 668 | 1.00 | ||

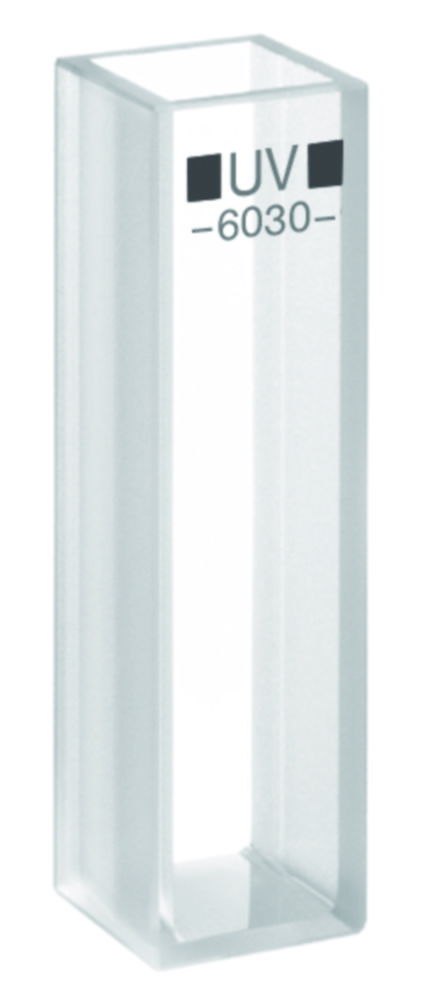

| macro | - | UV | 9.5 | 12.5 x 12.5 x 45 | 10 ± 0.01 | 3500 | 9.144 301 | 1.00 | ||
| large cuvette | Large cuvette, glass lid | OG | 20 | 25 x 25 x 22.5 | 20 ± 0.2 | 6000 | 7.637 932 | 1.00 | ||
| macro | - | OG | 9.5 | 12.5 x 22.5 x 45 | 20 | 7000 | 9.144 302 | 1.00 | ||
| semi-micro* | - | UV | 4 | 12.5 x 12.5 x 45 | 10 ± 0.01 | 1400 | 9.144 361 | 1.00 | ||
| macro | - | OG | 9.5 | 12.5 x 52.5 x 45 | 50 | 17500 | 9.144 350 | 1.00 | ||
| macro | PTFE lid * | OG | 18.5 | 23.6 x 55 x 40 | 50 | 22500 | 6.091 137 | 1.00 | ||
| macro | PTFE lid * | OG | 9.5 | 12.5 x 12.5 x 45 | 10 | 3500 | 9.144 300 | 1.00 | ||
| large cuvette | Large cuvette, glass lid | OG | 30 | 35 x 35 x 32.5 | 30 ± 0.2 | 22500 | 9.144 375 | 1.00 | ||
| semi-micro* | - | OG | 4 | 12.5 x 12.5 x 45 | 10 | 1400 | 9.144 360 | 1.00 | ||
| macro | PTFE lid * | OG | 9.5 | 12.5 x 42.5 x 45 | 40 | 14000 | 9.144 340 | 1.00 | ||
| micro | PTFE lid * | OS | 2 | 12.5 x 12.5 x 45 | 10 | 700 | 9.144 750 | 1.00 | ||
| micro | PTFE lid, black side walls and base | OS | 2 | 12.5 x 12.5 x 45 | 10 | 700 | 9.144 755 | 1.00 | ||
| large cuvette | Large cuvette, glass lid | OG | 40 | 45 x 45 x 42.5 | 40 ± 0.2 | 56000 | 9.144 376 | 1.00 | ||
| semi-micro* | PTFE lid * | OS | 4 | 12.5 x 52.5 x 45 | 50 | 7000 | 9.144 450 | 1.00 | ||
| semi-micro* | PTFE stopper *** | OS | 4 | 12.5 x 12.5 x 46 | 10 | 1400 | 9.144 710 | 1.00 | ||
| semi-micro* | PTFE lid * | OS | 4 | 12.5 x 12.5 x 45 | 10 | 1400 | 9.144 410 | 1.00 |
