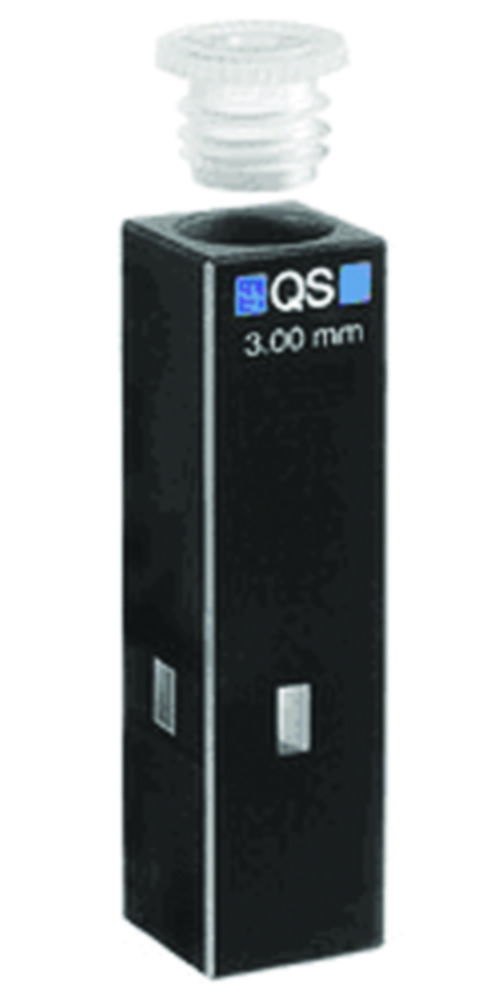

Cells for fluorescence measurement, UV-range, 3 window

Optical material: Quartz glass High Performance.

Toote variatsioonid

CapacityCentre heightExternal dimensions (WxDxH)Ext. depthExt. heightExt. widthInt. widthMaterialMaterial closureMax. capacityCatalog numberPath lengthType of closureType of cuvetteWavelengthPKKogus
120 µl8.5 mm12.5 x 12.5 x 45 mm12.5 mm45 mm12.5 mm2 mmQuartz glassPE6.510 3805 mmStopperUltra-Micro200...2500 nm1.00
30 µl8.5 mm12.5 x 12.5 x 45 mm12.5 mm45 mm12.5 mm1.5 mmQuartz glassPE7.606 5795 mmStopperUltra-Micro200...2500 nm1.00
70 µl8.5 mm12.5 x 12.5 x 45 mm12.5 mm45 mm12.5 mm3 mmQuartz glassPE9.144 3905 mmStopperUltra-Micro200...2500 nm1.00
120 µl15 mm12.5 x 12.5 x 45 mm12.5 mm45 mm12.5 mm2 mmQuartz glassPE6.051 5795 mmStopperUltra-Micro200...2500 nm1.00
30 µl15 mm12.5 x 12.5 x 45 mm12.5 mm45 mm12.5 mm1.5 mmQuartz glassPE6.250 2255 mmStopperUltra-Micro200...2500 nm1.00
70 µl15 mm12.5 x 12.5 x 45 mm12.5 mm45 mm12.5 mm3 mmQuartz glassPE9.144 3915 mmStopperUltra-Micro200...2500 nm1.00
