Cells W600

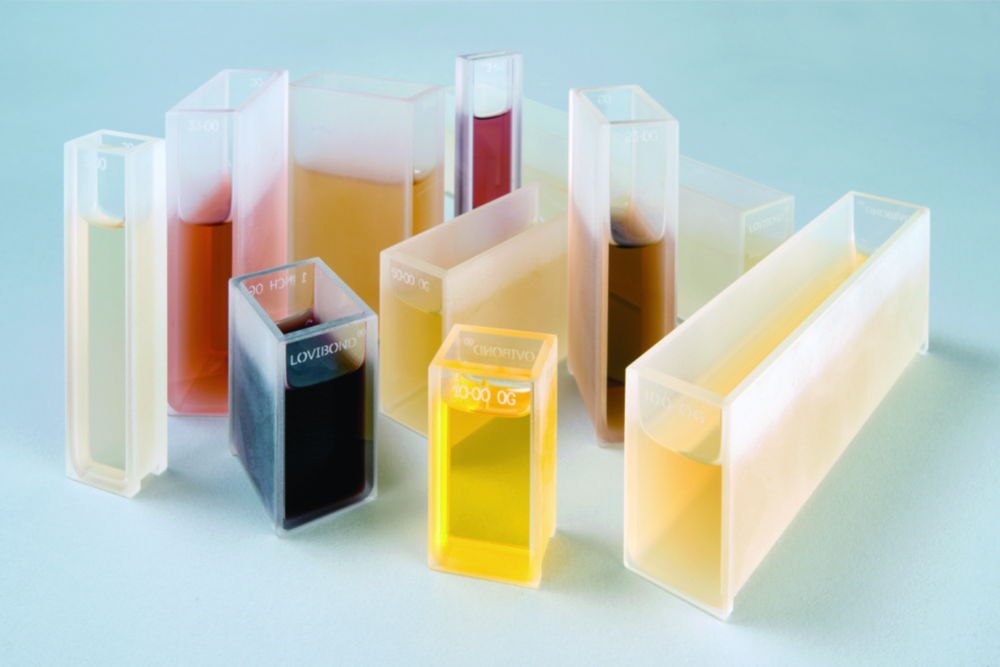

Cells made of optical glass or Borosilicate glass 3.3, 21 mm x 40 mm, for instument Models Fs, PFXi/PFX195, 880, 950 and 995. (Note: PFXi/PFX-195 max. path length 50 mm).
W600/OG/xx for unheated samples (up to 40 °C)
W600/B/xx for heated samples (up to max. 100 °C)
Further versions available on request.
Toote variatsioonid
| Type | Material | Path length mm | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|
| W600/B/33 | Borosilicate glass 3.3 | 33 | 6.086 921 | 1.00 | ||
| W600/OG/2 | optical glass | 2 | 6.088 889 | 1.00 | ||
| W600/OG/33 | optical glass | 33 | 6.093 322 | 1.00 | ||
| W600/OG/6 | optical glass | 6 | 6.204 280 | 1.00 | ||
| W600/OG/10 | optical glass | 10 | 6.207 120 | 1.00 | ||
| W600/OG/½" | optical glass | 12.7 | 9.947 341 | 1.00 | ||
| W600/OG/1" | optical glass | 25.4 | 9.947 342 | 1.00 | ||
| W600/OG/¼" | optical glass | 6.35 | 6.284 123 | 1.00 | ||
| W600/B/1" | Borosilicate glass 3.3 | 12.7 | 9.947 344 | 1.00 | ||
| W600/B/5¼" | Borosilicate glass 3.3 | 133.35 | 9.947 345 | 1.00 | ||
| W600/B/10 | Borosilicate glass 3.3 | 10 | 6.241 927 | 1.00 | ||
| W600/OG/5¼" | optical glass | 133.35 | 9.947 343 | 1.00 | ||
| W600/OG/100 | optical glass | 100 | 6.235 055 | 1.00 | ||
| W600/OG/50 | optical glass | 50 | 6.207 119 | 1.00 | ||
| W600/B/100 | Borosilicate glass 3.3 | 100 | 6.253 940 | 1.00 | ||
| W600/OG/25 | optical glass | 25 | 6.241 234 | 1.00 |
