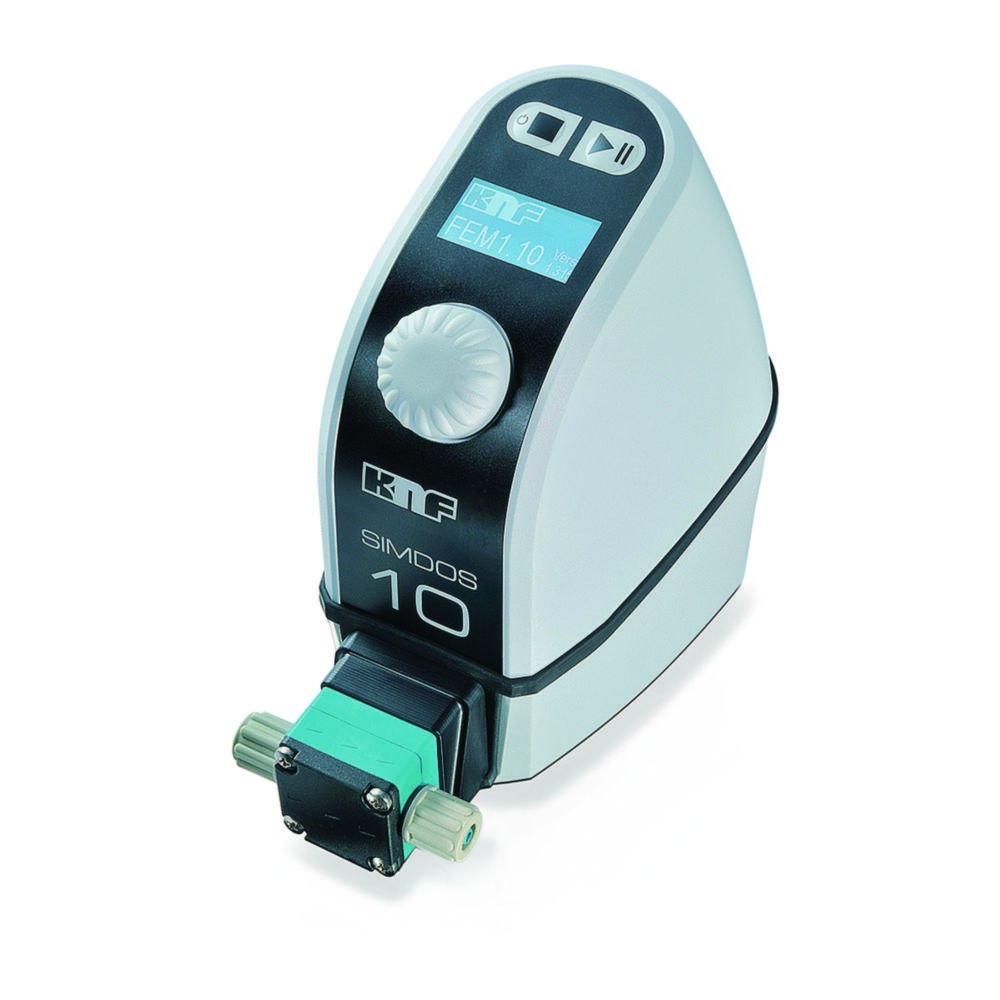

Chemically-resistant Diaphragm Dosing Pumps SIMDOS® 10, manual control

Application: Metering liquids
Pump heads available in your choice of PP, PVDF or PTFE, diaphragms available in PTFE, valves in FFKM
Flow rate can either be set manually (Version S) or both manually and via an external control device as well as with interface RC 232 (Version RCP)
Additional safety diaphragm for maximum security
Easy exchange of the transfer diaphragm by activating the maintenance command in the operating program
Advantages:
Intuitive operation, easy calibration
Adjustable to liquid characteristics
Self-priming and dry-running
Spray water protected IP 65
Small size

Toote variatsioonid

Depth	Dimensions (WxDxH)	Dosing volume	Flow rate	Height	IP code	Material head	Max. operating pressure	Max. voltage	Catalog number	Plug type	Power supply	Type	Width	PK	Min. voltage
150 mm	93 x 150 x 144 mm	1 ... 999 ml	1 ... 100 ml/min	144 mm	IP 65	PTFE	6 bar	115 V	4.686 744	US	115 V, 60 Hz	U FEM 1.10 FT.18S2	93 mm	1.00	-
150 mm	93 x 150 x 144 mm	1 ... 999 ml	1 ... 100 ml/min	144 mm	IP 65	PP	6 bar	115 V	4.686 742	US	115 V, 60 Hz	U FEM 1.10 KT.18S2	93 mm	1.00	-
150 mm	93 x 150 x 144 mm	1 ... 999 ml	1 ... 100 ml/min	144 mm	IP 65	PP	6 bar	240 V	6.268 391	EU/UK/CH	100 ... 240 V, 50/60 Hz	FEM 1.10 KT.18S2	93 mm	1.00	100 V
150 mm	93 x 150 x 144 mm	1 ... 999 ml	1 ... 100 ml/min	144 mm	IP 65	PTFE	6 bar	240 V	6.268 389	EU/UK/CH	100 ... 240 V, 50/60 Hz	FEM 1.10 FT.18S2	93 mm	1.00	100 V
150 mm	93 x 150 x 144 mm	1 ... 999 ml	1 ... 100 ml/min	144 mm	IP 65	PVDF	6 bar	115 V	4.686 740	US	115 V, 60 Hz	U FEM 1.10 TT.18S2	93 mm	1.00	-
150 mm	93 x 150 x 144 mm	1 ... 999 ml	1 ... 100 ml/min	144 mm	IP 65	PVDF	6 bar	240 V	6.268 393	EU/UK/CH	100 ... 240 V, 50/60 Hz	FEM 1.10 TT.18S2	93 mm	1.00	100 V
