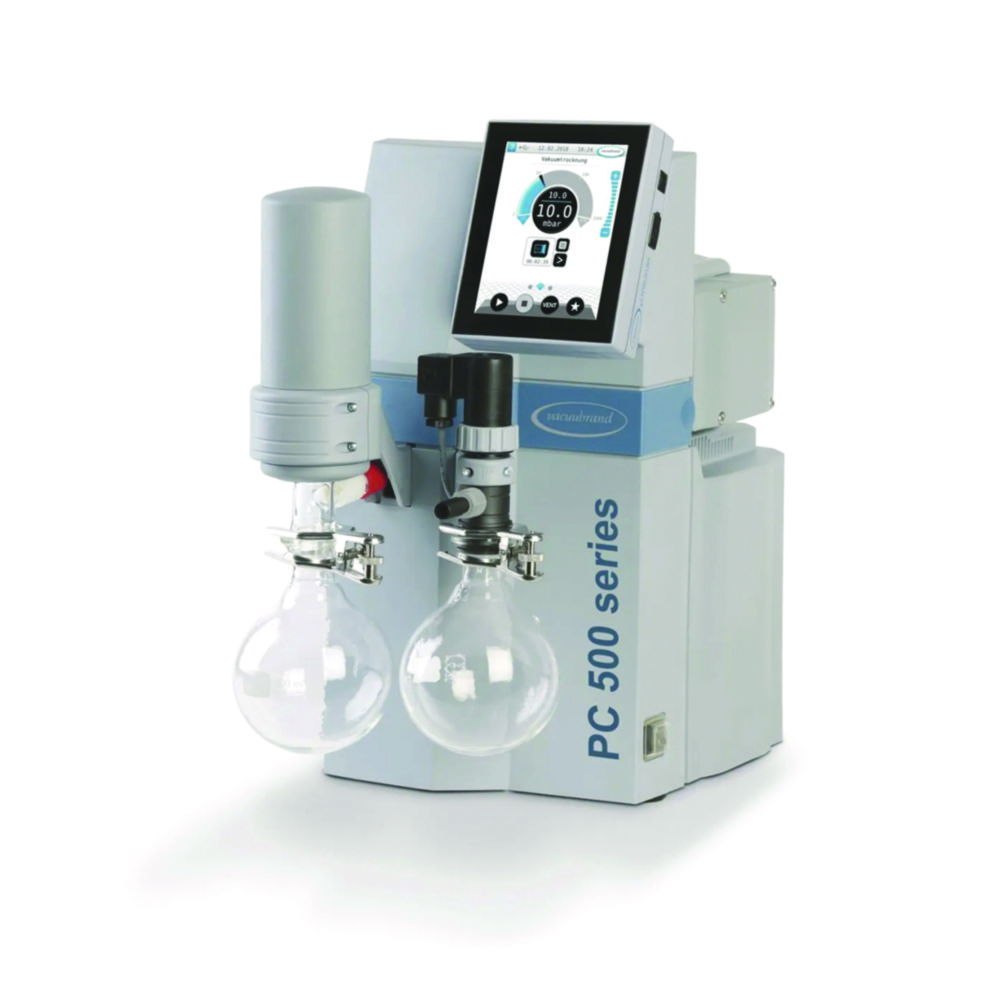

Chemistry pumping unit PC 510 select
This pumping unit offers a proven concept for vacuum generation and control for many evaporation processes. The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets. The exhaust vapor condenser allows for nearly complete recovery of solvents.
- VACUU·SELECT vacuum controller with graphical user interface
- Predefined applications save time and give reproducible results
- Easy-to-use application editor allows own process sequences
- Good chemical and condensate compatibility
- Oilfree
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | Catalog number | Plug type | Type | Ultimate vacuum | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 418 mm | 243 x 418 x 457 mm | 2.0 m³/h | 457 mm | 4.665 353 | CEE | PC 510 select | 7 mbar | 243 mm | 1.00 | ||
| 418 mm | 243 x 418 x 457 mm | 2.0 m³/h | 457 mm | 4.670 456 | UK | PC 510 select | 7 mbar | 243 mm | 1.00 | ||
| 418 mm | 243 x 418 x 457 mm | 2.0 m³/h | 457 mm | 6.274 327 | CH | PC 510 select | 7 mbar | 243 mm | 1.00 |
