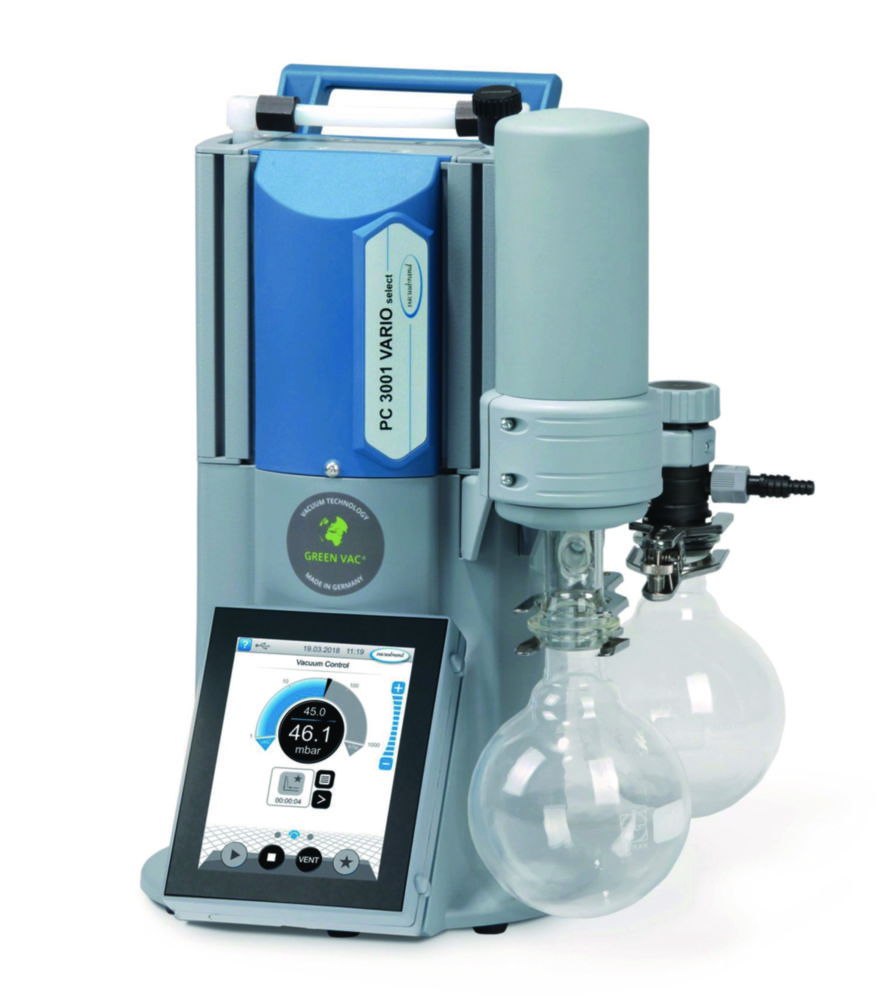

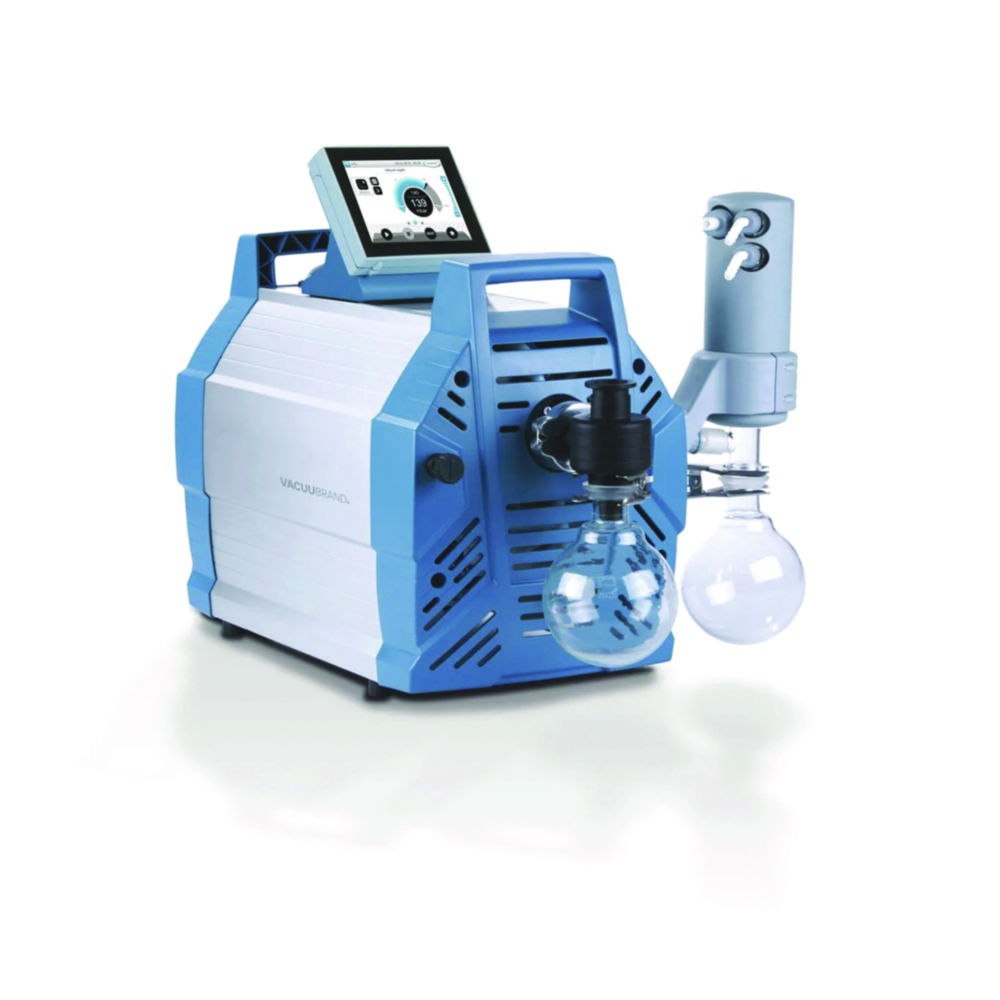

Chemistry Pumping Units VARIO® select
The combination of speed controlled VARIO® chemistry diaphragm pumps and the new VACUU·SELECT vacuum controller makes the VARIO® select chemistry pumps the ideal solution for chemical processes that require precise vacuum, such as rotary evaporation, vacuum drying or vacuum concentration.
- High chemical resistance and therefore ideally suited for pumping aggressive gases and vapours.
- Short process times and smooth running due to optimal setting of the pressure via the VACUU·SELECT controller.
- The VARIO® technology controls the vacuum precisely and efficiently via motor speed.
- Power consumption, maintenance and noise are exceptionally low.
- The outlet catchpot and solvent condenser combine to prevent solvent vapor emissions into the lab, allowing for nearly full recovery of solvents.
Country-specific power cord versions available on request.
Toote variatsioonid
| PK | Dimensions (WxDxH) | Flow rate | Height | Plug type | Type | Ultimate vacuum | Catalog number | Depth | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 | 243 x 419 x 457 mm | 46.7 l/min | 457 mm | UK | PC 3002 VARIO® select | 7 mbar | 4.670 478 | 419 mm | 17.9 kg | 243 mm | ||
| 1.00 | 243 x 419 x 457 mm | 76.67 l/min | 457 mm | CEE | PC 3004 VARIO® select | 1.5 mbar | 4.667 856 | 419 mm | 21.1 kg | 243 mm | ||
| 1.00 | 243 x 419 x 457 mm | 46.67 l/min | 457 mm | CH | PC 3003 VARIO® select | 0.6 mbar | 4.665 247 | 419 mm | 21.1 kg | 243 mm | ||
| 1.00 | 387 x 616 x 450 mm | 238.33 l/min | 450 mm | CH | PC 3012 NT VARIO® select | 1.5 mbar | 6.312 420 | 616 mm | 29.7 kg | 387 mm | ||
| 1.00 | 243 x 419 x 457 mm | 46.7 l/min | 457 mm | CH | PC 3002 VARIO® select | 7 mbar | 4.670 477 | 419 mm | 17.9 kg | 243 mm | ||
| 1.00 | 306 x 303 x 400 mm | 33.3 l/min | 400 mm | CH | PC 3001 VARIO® select | 2 mbar | 4.664 000 | 303 mm | 8.2 kg | 306 mm | ||
| 1.00 | 306 x 303 x 400 mm | 33.3 l/min | 400 mm | CEE | PC 3001 VARIO® select | 2 mbar | 4.662 294 | 303 mm | 8.2 kg | 306 mm | ||
| 1.00 | 243 x 419 x 457 mm | 46.67 l/min | 457 mm | CEE | PC 3002 VARIO® select | 7 mbar | 7.649 323 | 419 mm | 17.9 kg | 243 mm | ||
| 1.00 | 306 x 303 x 400 mm | 33.3 l/min | 400 mm | UK | PC 3001 VARIO® select | 2 mbar | 6.274 832 | 303 mm | 8.2 kg | 306 mm | ||
| 1.00 | 243 x 419 x 457 mm | 46.67 l/min | 457 mm | CEE | PC 3003 VARIO® select | 0.6 mbar | 6.311 665 | 419 mm | 21.1 kg | 243 mm | ||
| 1.00 | 387 x 616 x 450 mm | 238.33 l/min | 450 mm | UK | PC 3012 NT VARIO® select | 1.5 mbar | 4.688 103 | 616 mm | 29.7 kg | 387 mm | ||
| 1.00 | 387 x 616 x 450 mm | 213.33 l/min | 450 mm | CH | PC 3010 NT VARIO® select | 0.6 mbar | 4.687 923 | 616 mm | 29.7 kg | 387 mm | ||
| 1.00 | 387 x 616 x 450 mm | 321.66 l/min | 450 mm | CEE | PC 3016 NT VARIO® select | 70 mbar | 4.687 921 | 616 mm | 29.7 kg | 387 mm | ||
| 1.00 | 387 x 616 x 450 mm | 238.33 l/min | 450 mm | CEE | PC 3012 NT VARIO® select | 1.5 mbar | 4.687 922 | 616 mm | 29.7 kg | 387 mm | ||
| 1.00 | 387 x 616 x 450 mm | 213.33 l/min | 450 mm | UK | PC 3010 NT VARIO® select | 0.6 mbar | 4.688 105 | 616 mm | 29.7 kg | 387 mm | ||
| 1.00 | 243 x 419 x 457 mm | 46.67 l/min | 457 mm | UK | PC 3003 VARIO® select | 0.6 mbar | 4.670 558 | 419 mm | 21.1 kg | 243 mm | ||
| 1.00 | 387 x 616 x 450 mm | 238.33 l/min | 450 mm | CEE | PC 3010 NT VARIO® select | 0.6 mbar | 4.688 104 | 616 mm | 29.7 kg | 387 mm | ||
| 1.00 | 243 x 419 x 457 mm | 76.67 l/min | 457 mm | UK | PC 3004 VARIO® select | 1.5 mbar | 4.670 543 | 419 mm | 21.1 kg | 243 mm | ||
| 1.00 | 243 x 419 x 457 mm | 76.67 l/min | 457 mm | CH | PC 3004 VARIO® select | 1.5 mbar | 6.275 104 | 419 mm | 21.1 kg | 243 mm |
