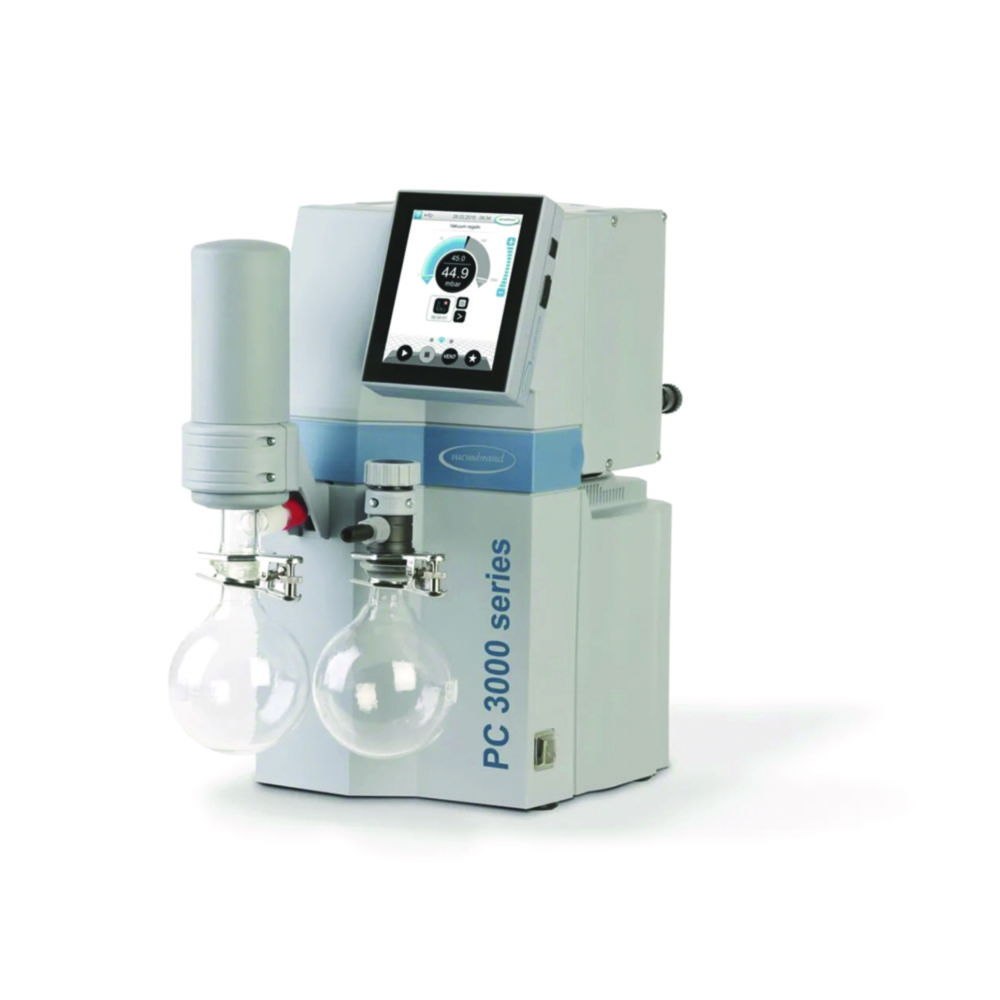

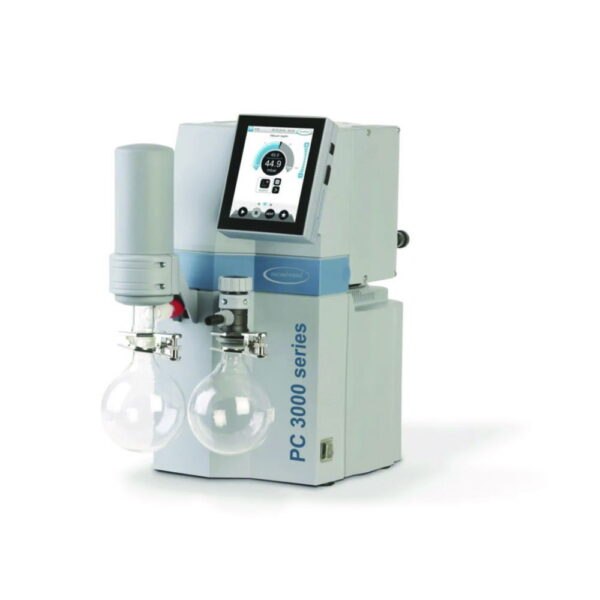

Chemistry pumping units VARIO® select PC 3004
The combination of speed controlled VARIO® chemistry diaphragm pumps and the new VACUU·SELECT vacuum controller makes the VARIO® select chemistry pumps the ideal solution for chemical processes that require precise vacuum, such as rotary evaporation, vacuum drying or vacuum concentration.
- High chemical resistance and therefore ideally suited for pumping aggressive gases and vapours
- Short process times and smooth running due to optimal setting of the pressure via the VACUU·SELECT controller
- The VARIO® technology controls the vacuum precisely and efficiently via motor speed
- Power consumption, maintenance and noise are exceptionally low
- The outlet catchpot and solvent condenser combine to prevent solvent vapor emissions into the lab, allowing for nearly full recovery of solvents
Country-specific power cord versions available on request.
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | Catalog number | Plug type | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 419 mm | 243 x 419 x 457 mm | 76.67 l/min | 457 mm | 4.667 856 | CEE | PC 3004 VARIO® select | 1.5 mbar | 21.1 kg | 243 mm | 1.00 | ||
| 419 mm | 243 x 419 x 457 mm | 76.67 l/min | 457 mm | 4.670 543 | UK | PC 3004 VARIO® select | 1.5 mbar | 21.1 kg | 243 mm | 1.00 | ||
| 419 mm | 243 x 419 x 457 mm | 76.67 l/min | 457 mm | 6.275 104 | CH | PC 3004 VARIO® select | 1.5 mbar | 21.1 kg | 243 mm | 1.00 |
