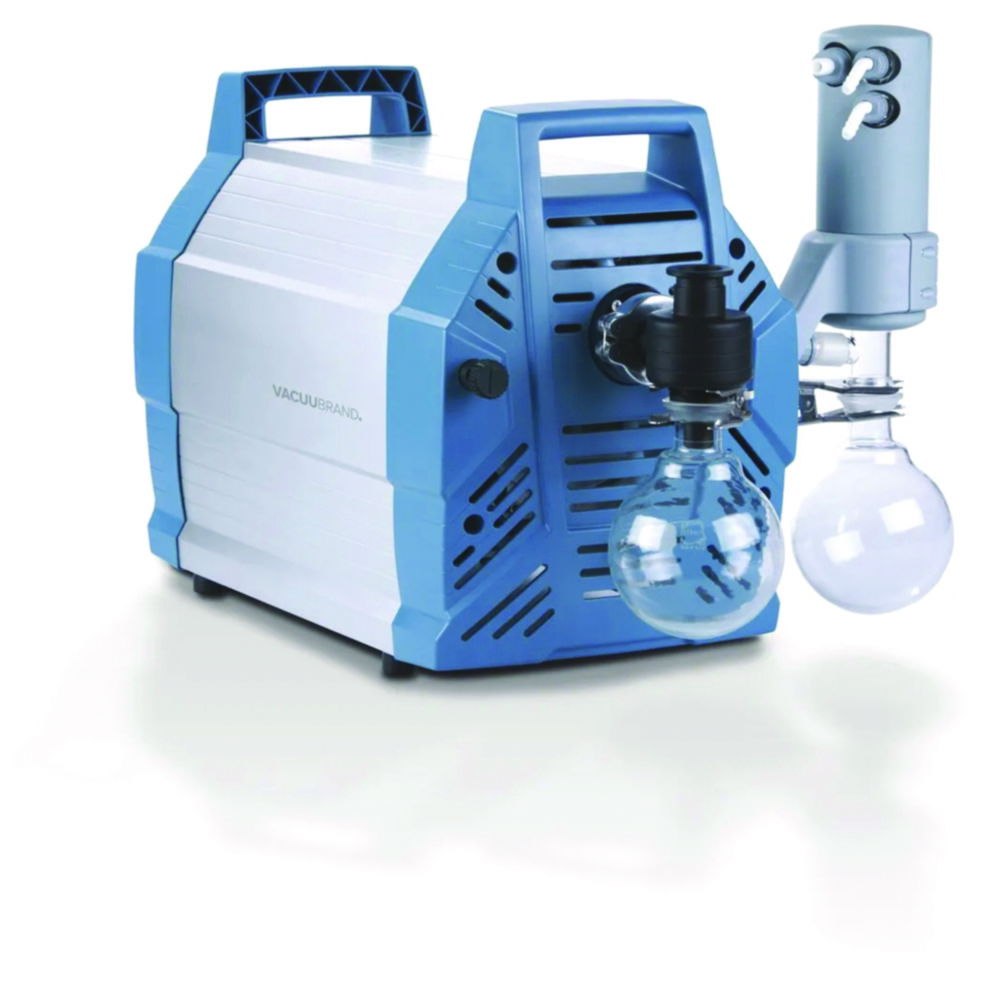

Chemistry vacuum system, MD 12C NT AK/EK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.
- Good chemical resistance and vapor tolerance
- High performance even at low vacuum
- Good vacuum even with gas ballast
- Quiet and ultra low vibration
- Oilfree
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | Catalog number | Plug type | Type | Ultimate vacuum | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 616 mm | 387 x 616 x 395 mm | 12 m³/h | 395 mm | 9.880 969 | CH | MD 12C NT + AK + EK | 2 mbar | 387 mm | 1.00 | ||
| 616 mm | 387 x 616 x 395 mm | 12 m³/h | 395 mm | 9.880 968 | CEE | MD 12C NT + AK + EK | 2 mbar | 387 mm | 1.00 | ||
| 616 mm | 387 x 616 x 395 mm | 12 m³/h | 395 mm | 9.880 970 | UK | MD 12C NT + AK + EK | 2 mbar | 387 mm | 1.00 |
