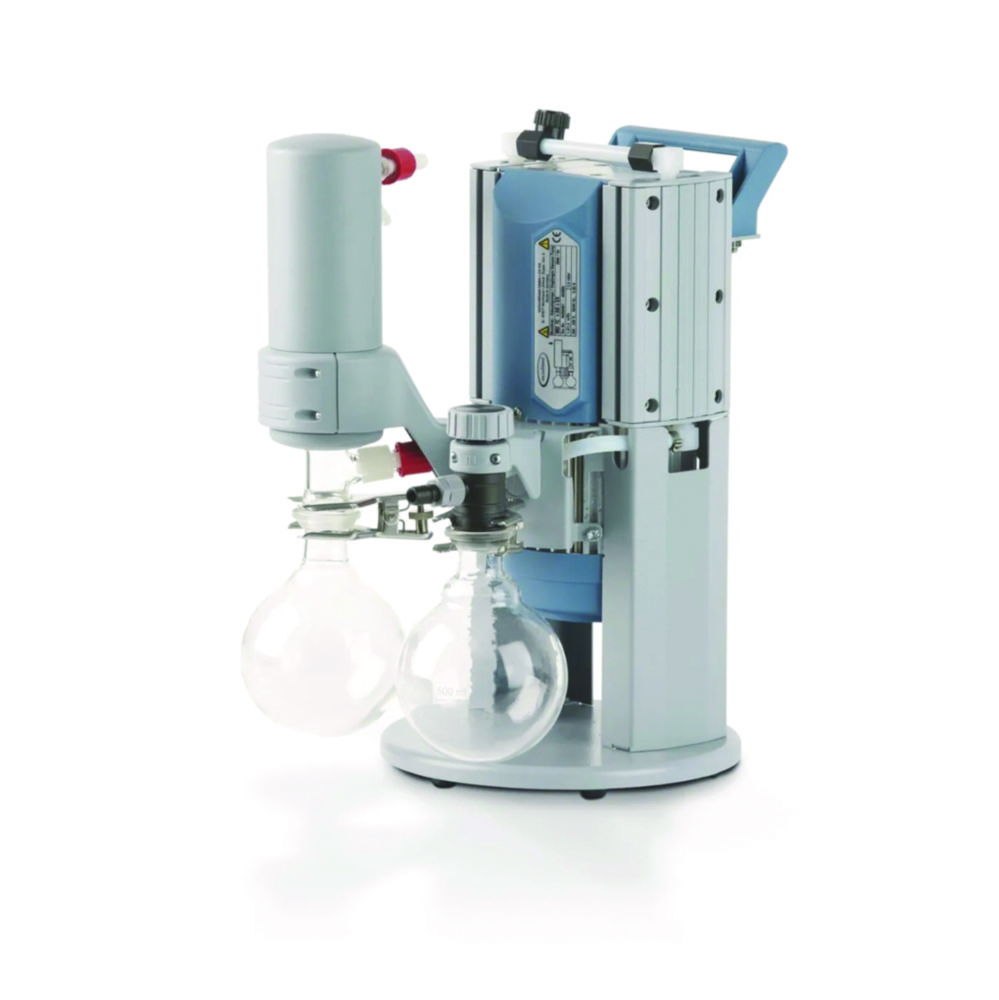

Chemistry vacuum system, MD 1C AK/EK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.
- Good chemical resistance and vapor tolerance
- High performance even at low vacuum
- Good vacuum even with gas ballast
- Quiet and ultra low vibration
- Oilfree
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | Catalog number | Plug type | Type | Ultimate vacuum | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 316 mm | 239 x 316 x 405 mm | 1.3 m³/h | 405 mm | 9.880 828 | CEE | MD 1C + AK + EK | 2 mbar | 239 mm | 1.00 | ||
| 316 mm | 239 x 316 x 405 mm | 1.3 m³/h | 405 mm | 9.880 925 | CH | MD 1C + AK + EK | 2 mbar | 239 mm | 1.00 | ||
| 316 mm | 239 x 316 x 405 mm | 1.3 m³/h | 405 mm | 4.670 345 | UK | MD 1C + AK + EK | 2 mbar | 239 mm | 1.00 |
