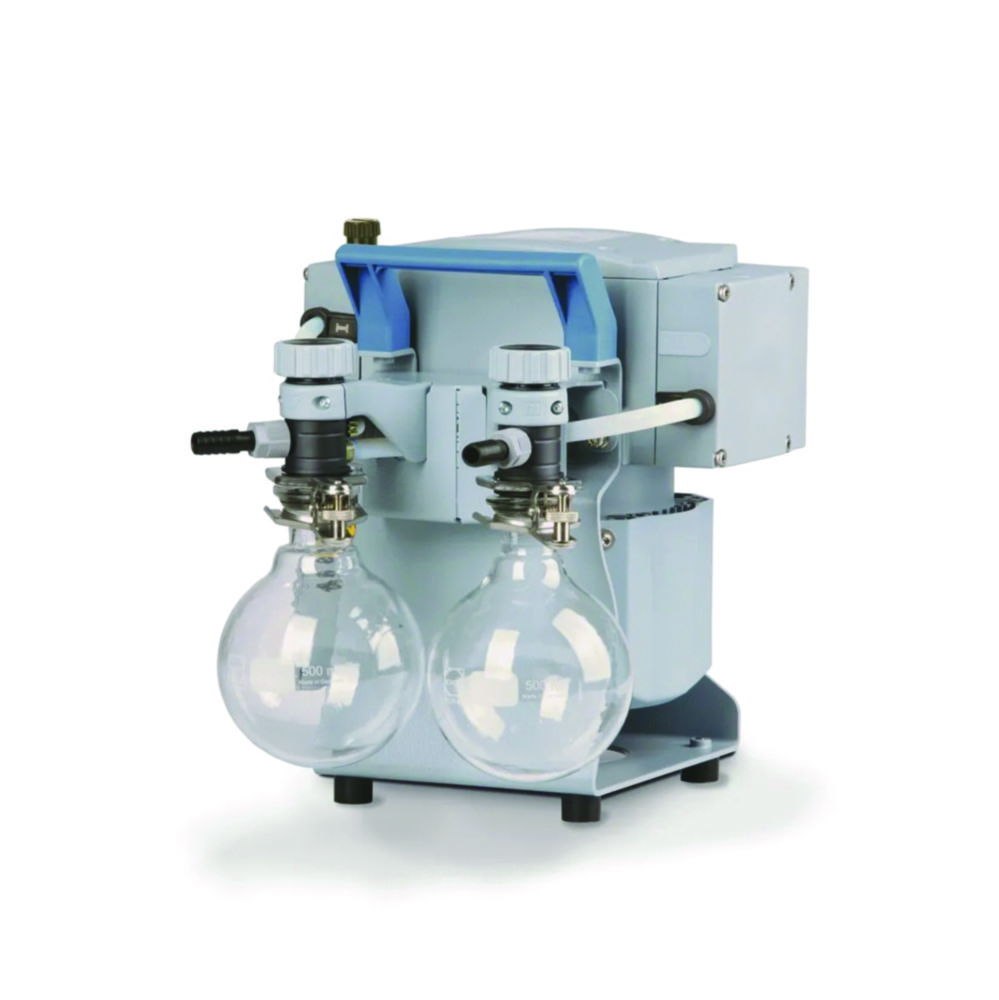

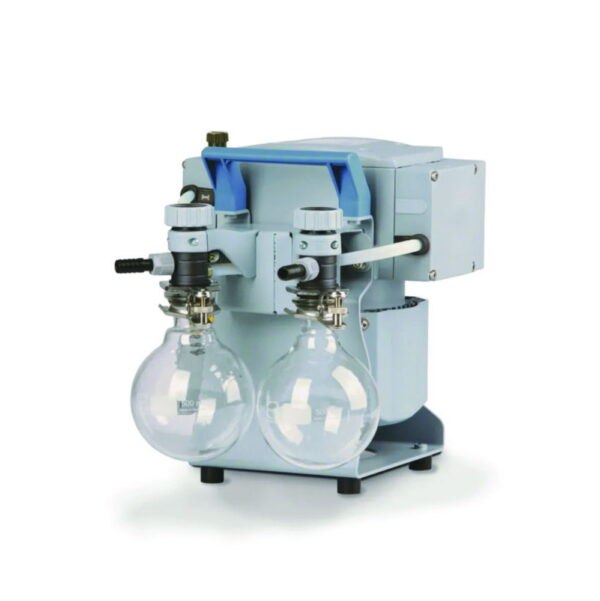

Chemistry vacuum system MZ 2C NT 2AK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The separator at the outlet collects condensate and avoids condensate backflow towards the pump.
- Good chemical resistance and vapor tolerance
- High performance even at low vacuum
- Good vacuum even with gas ballast
- Quiet and ultra low vibration
- Oilfree
- Inlet and outlet separator
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | Catalog number | Plug type | Type | Ultimate vacuum | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 319 mm | 243 x 319 x 309 mm | 2.0 m³/h | 309 mm | 9.880 832 | CEE | MZ 2C NT + 2AK | 7 mbar | 243 mm | 1.00 | ||
| 319 mm | 243 x 319 x 309 mm | 2.0 m³/h | 309 mm | 4.670 442 | UK | MZ 2C NT + 2AK | 7 mbar | 243 mm | 1.00 | ||
| 319 mm | 243 x 319 x 309 mm | 2.0 m³/h | 309 mm | 9.880 844 | CH | MZ 2C NT + 2AK | 7 mbar | 243 mm | 1.00 |
