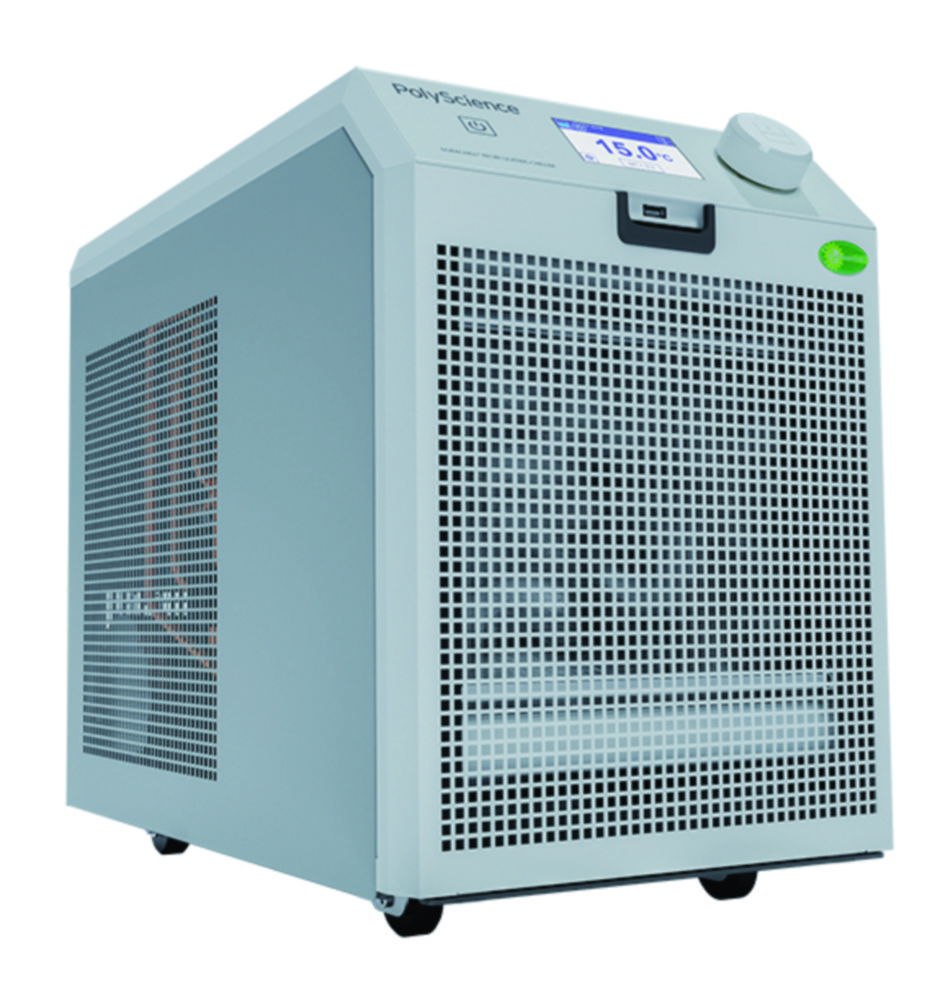

Chiller DuraChill®
Stable and reliable cooling for many common heat removal applications, including laser etching, AA furnaces, ICP, rotary evaporators, vacuum systems, reaction vessels, plasma etching, and condenser cooling. The chillers are available with turbine or positive displacement pump.
- A bright, full-color touchscreen display
- Cooling at ambient temperatures up to 30°C
- DynamicFilter™ self-cleaning filter system
- Liquid level sensor
- UV light system to prevent growth inhibitors
- User-adjustable temperature, pressure, and flow rate alarms
- External temperature tracking and communications capability (optionally)
- Cool Command™
- WhisperCool® noise reduction system
- Self-diagnostics service and functionality system
- Front fill reservoir
- 4 Casters, 2 of them locking
- Specifications:
- Working temperature: -10 … 70 °C
- Temperatur stability: ± 0.1 °C
- Cooling capacity: 850 … 2900 W
- Connectivity: RS232, status relay, dry contact
- Power supply: 240 V, 50 Hz
Toote variatsioonid
| Type | Description | Pressure bar | Cooling capacity kW at 20 °C | Flow rate (50/60Hz) L / min. | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|
| CA 03 | With turbine pump | 1.4 ... 5.2 | 1.28 | 8.3 | 4.675 231 | 1.00 | ||
| CA 10 | With positive displacement pump | 1.4 ... 5.7 | 2.65 | 11.0 | 4.675 234 | 1.00 | ||
| CA 02 | With turbine pump | 1.4 ... 5.2 | 0.7 | 8.3 | 4.675 229 | 1.00 | ||
| CA 05 | With positive displacement pump | 1.4 ... 5.7 | 1.84 | 7.6 | 4.675 232 | 1.00 | ||
| CA 10 | With turbine pump | 1.4 ... 5.2 | 2.65 | 11.0 | 7.984 151 | 1.00 | ||
| CA 03 | With positive displacement pump | 1.4 ... 5.7 | 1.28 | 7.6 | 4.675 230 | 1.00 | ||
| CA 02 | With positive displacement pump | 1.4 ... 5.7 | 0.7 | 7.6 | 4.675 228 | 1.00 |
