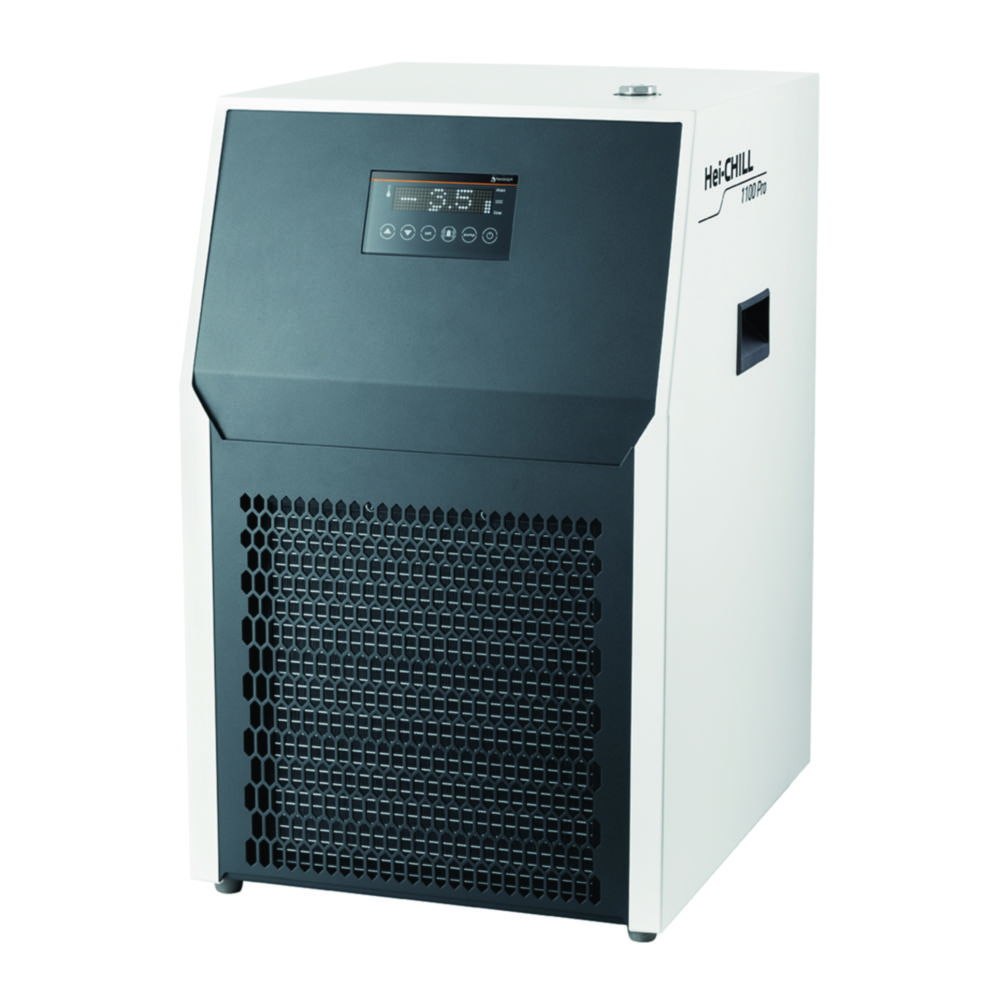

Chiller Hei-Chill 1100 Pro
A cooling capacity of up to 1100 watt allows an effective and powerful cooling of every application, even at low temperatures, or the supply of multiple evaporation systems by a recirculation chiller. Maximum performance for achieving the set target values quickly and for keeping high temperature stability even when using high-polar solvents or during continuous evaporation processes, e.g. in combination with the automatic Hei-VOLUME Distimatic Pro module
With natural refrigerant (R-290)
Efficient cooling system with low-energy fans
Touchscreen controller with glass surface and integrated level indicator
Low noise level due to speed-controlled fans
RS-232 interface
Controlled e.g. via Hei-VAP Expert Control, Ultimate Control or via Heidolph laboratory software process solutions
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | Max. flow rate | Max. pressure | Max. temperature | Min. temperature | Catalog number | Plug type | Power supply | Pressure | Temp. Stability | Temperature | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 460 mm | 380 x 460 x 620 mm | 10.5 l/min | 620 mm | IP 20 | 25 bar | 40 °C | -10 °C | 6.326 198 | EU | 230 V, 50 Hz | 25 bar | ±0,5 K | -10 ... 40 °C | Hei-Chill 1100 Pro | 41 kg | 380 mm | 1.00 |
