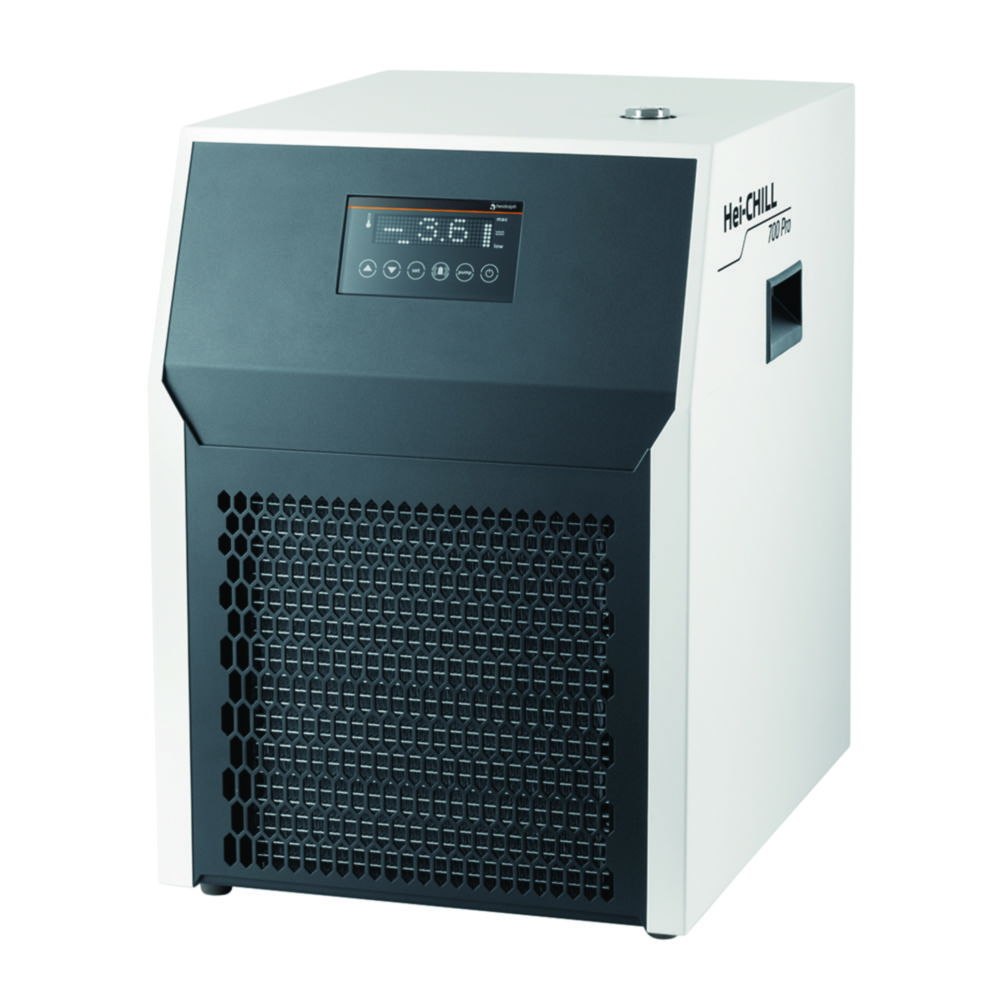

Chiller Hei-Chill 700 Pro
Powerful 700 watt cooling for every evaporation process and large volumes. High performance for achieving the target temperature quickly and for keeping high temperature stability even when using high-polar solvents.
With natural refrigerant (R-290)
Efficient cooling system with low-energy fans
Touchscreen controller with glass surface and integrated level indicator
Low noise level due to speed-controlled fans
RS-232 interface
Controlled e.g. via Hei-VAP Expert Control, Ultimate Control or via Heidolph laboratory software solutions
Toote variatsioonid
| IP code | Max. flow rate | Max. temperature | Min. temperature | Catalog number | Plug type | Temp. Stability | Temperature | Type | Weight | PK | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Max. voltage | Max. volume bath | atr_llg_min_volume_bath | Power supply | Refrigerant | Volume bath | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IP 20 | 40 °C | -10 °C | 6.326 309 | EU | ±0,5 K | -10 ... 40 °C | Hei-Chill 700 Pro | 39 kg | 1.00 | 355 x 455 x 505 mm | 455 mm | 505 mm | 355 mm | 230 V | 9 l | 5.5 l | 230 V, 50 Hz | R290 | 5.5 ... 9 l |
