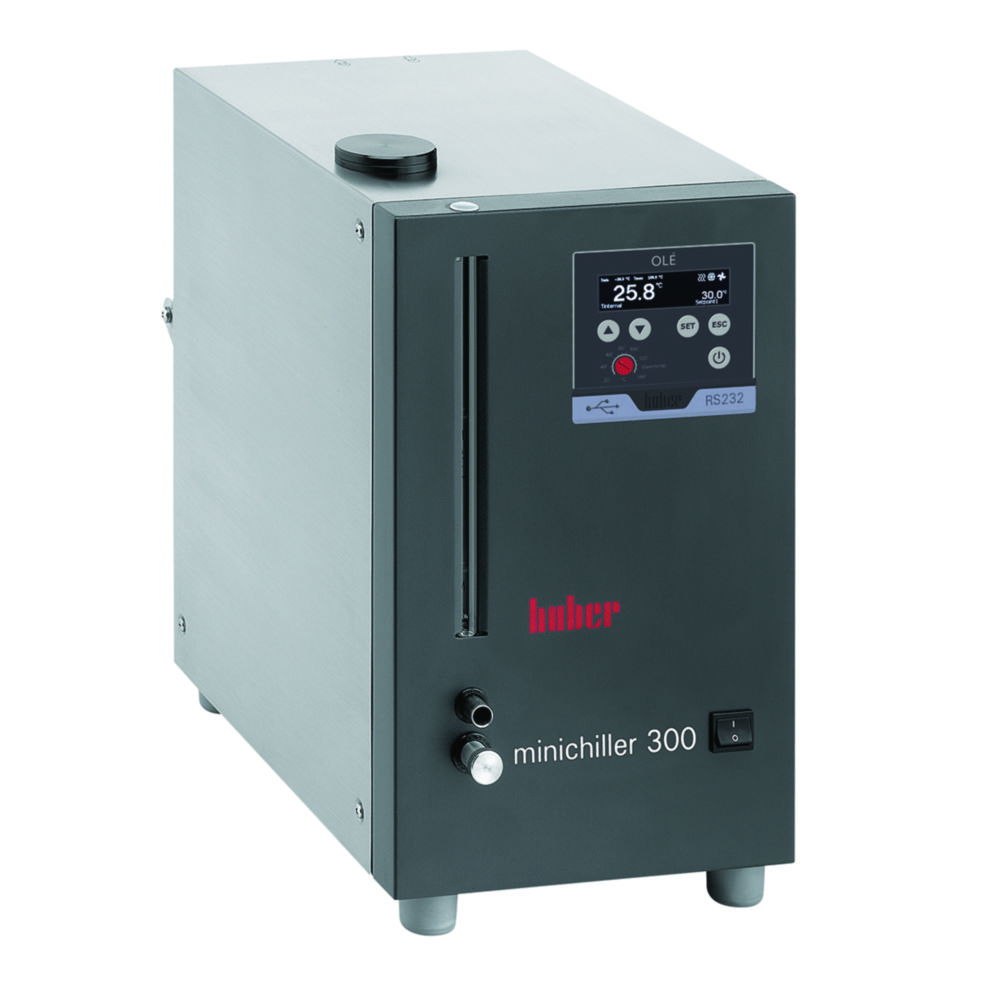

Chillers, Minichiller®

Small, robust and cost effective with its stainless steel casing. The Minichiller is the smallest Unichiller in the world. Minichillers are available with air or water-cooled refrigeration systems, illuminated level indicator, overflow and drain on the front. The filling port is on the top of the unit. All models use natural refrigerants as standard. Minichillers have suction and pressure pumps and therefore have the advantage of have a high flow at low pressure. This is particularly interesting for all pressure sensitive applications (e.g. glass condensors).

Toote variatsioonid

Catalog number	PK	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	IP code	atr_llg_max_suction_capacity	atr_llg_max_suction_pressure	Max. temperature	Max. voltage	Min. temperature	Min. voltage	Power supply	Refrigerant	Temp. Stability	Temperature	Type	Type of display	Weight
6.272 346	1.00	225 x 360 x 380 mm	360 mm	380 mm	225 mm	IP 20	10.5 l/min	0.17 bar	40 °C	240 V	-20 °C	220 V	220 ... 240 V, 50/60 Hz	R290	±0,5 K	-20 ... 40 °C	Minichiller® 300 OLÉ	OLED	23 kg
6.272 348	1.00	280 x 490 x 424 mm	490 mm	424 mm	280 mm	IP 20	18 l/min	0.4 bar	40 °C	240 V	-20 °C	208 V	208 ... 240 V, 50/60 Hz	R290	±0,5 K	-20 ... 40 °C	Minichiller® 600 OLÉ	OLED	37 kg
6.272 347	1.00	225 x 360 x 380 mm	360 mm	380 mm	225 mm	IP 20	10.5 l/min	0.17 bar	40 °C	240 V	-20 °C	220 V	220 ... 240 V, 50/60 Hz	R290	±0,5 K	-20 ... 40 °C	Minichiller® 300w OLÉ	OLED	23 kg
4.675 313	1.00	280 x 490 x 424 mm	490 mm	424 mm	280 mm	IP 20	18 l/min	0.4 bar	40 °C	240 V	-20 °C	208 V	208 ... 240 V, 50/60 Hz	R290	±0,5 K	-20 ... 40 °C	Minichiller® 600w OLÉ	OLED	36 kg
6.272 350	1.00	225 x 360 x 380 mm	360 mm	380 mm	225 mm	IP 20	10.5 l/min	0.17 bar	40 °C	240 V	5 °C	220 V	220 ... 240 V, 50/60 Hz	R290	±1 K	5 ... 40 °C	Minichiller® 280 OLÉ	OLED	23 kg
