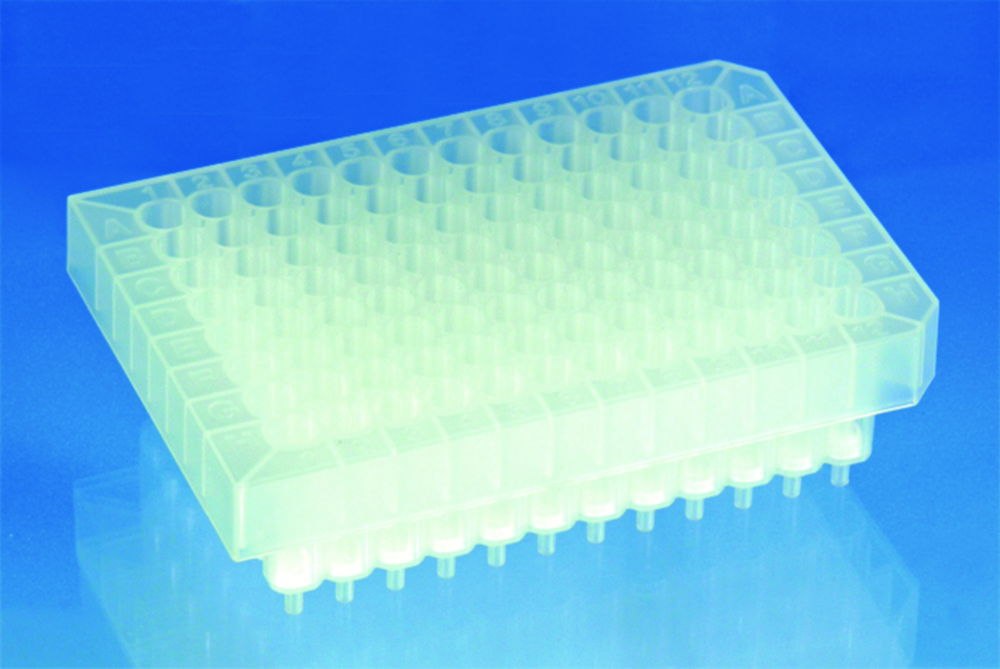

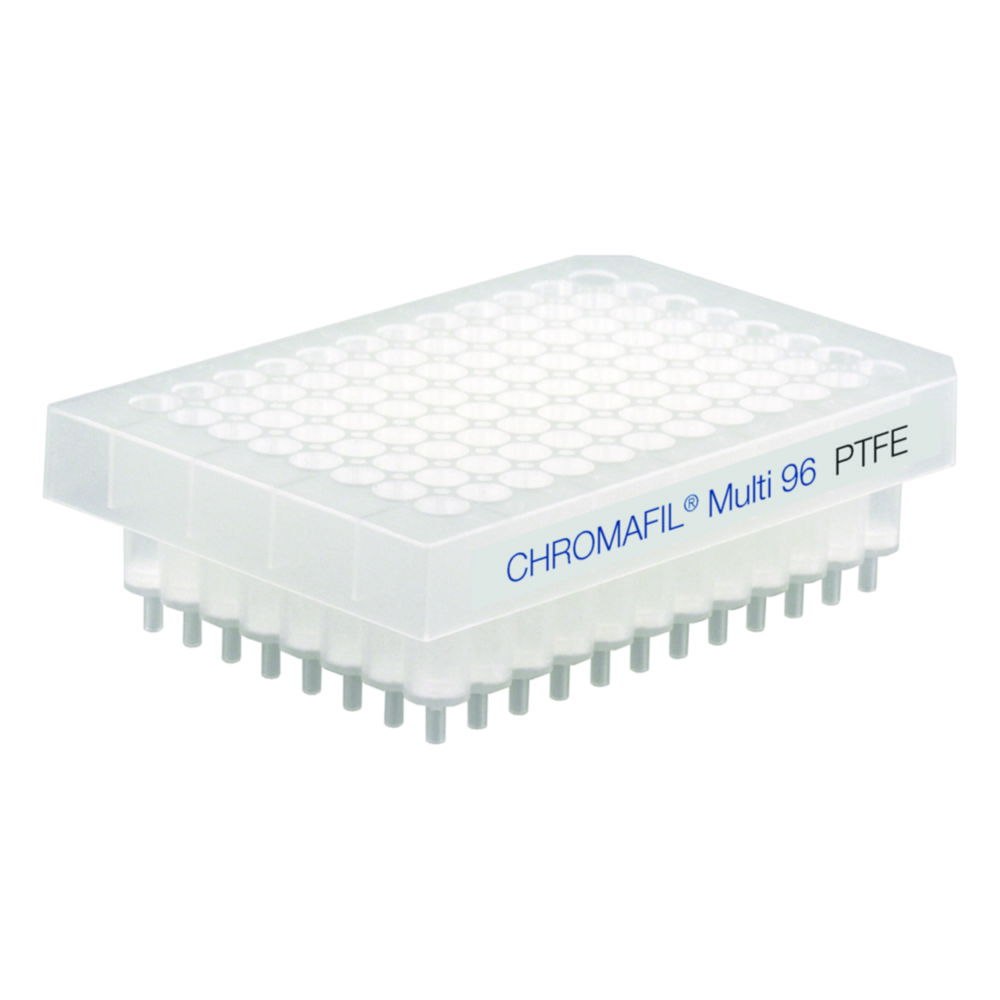

CHROMAFIL® MULTI 96 filter plates

96-well polypropylene plates for simultaneous filtration of 96 samples
Advantages of this high-throughput system are:

  • economical by saving time and solvent
  • use of multi-channel pipettors facilitates liquid transfer steps
  • readily adaptable to all common automated/robotic handling systems

-minimised dead volume (£ 40µl)

  • membrane materials correspond to the respective CHROMAFIL® syringe filters

Toote variatsioonid

DescriptionCatalog numberPKKogus
Filter plates with PTFE filter elements (3.0 µm)4.003 9751.00
Filter plates with glass fibre filter elements (nominal 3 µm)4.003 9721.00
Filter plates with PE filter elements (50 µm)4.003 9731.00
Filter plates with RC filter elements (regenerated cellulose, 0.2 µm)4.003 9711.00
Filter plates with cellulose mixed ester filter elements (0.20 µm)4.003 9761.00
Filter plates with glass fibre filter elements (nominal 1 µm)6.227 3461.00
Filter plates with PTFE filter elements (0.45 µm)6.227 3441.00
Filter plates with RC filter elements (regenerated cellulose, 0.45 µm)6.227 3451.00
Filter plates with PTFE filter elements (0.2 µm)6.227 3431.00
Filter plates with PE filter elements (20 µm)4.003 9701.00
Filter plates with PTFE filter elements (1.0 µm)4.003 9741.00
Filter plates with cellulose mixed ester filter elements (0.45 µm)4.003 9771.00
Vacuum manifold for monoblocks, with reservoir tank, vacuum gaugeand control valve, required for filtration with 96-well filter plates4.003 9621.00
