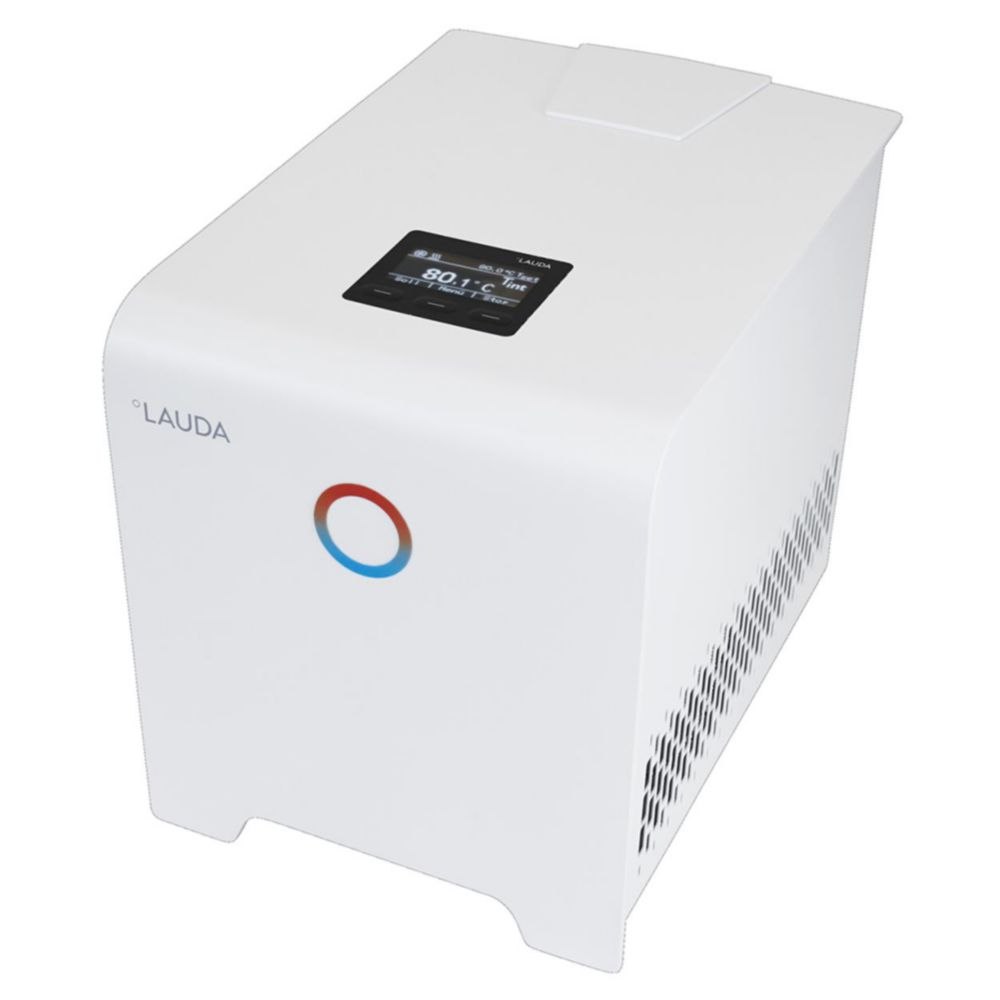

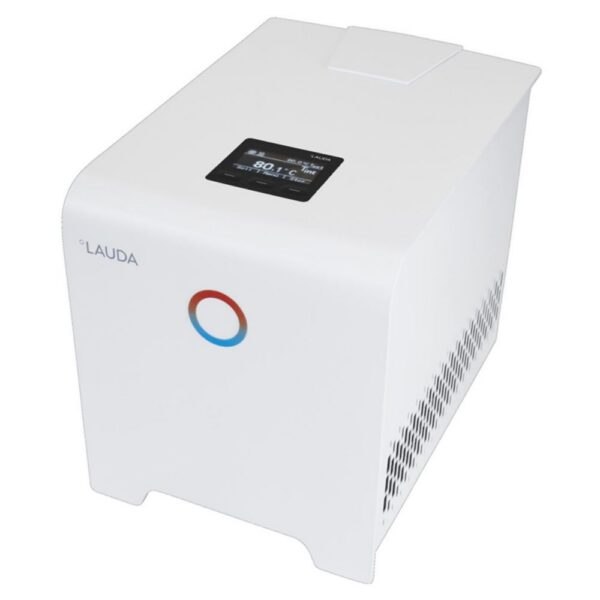

Circulation thermostat with Peltier technology LOOP
Compact, air-cooled circulation thermostat for external applications. The refrigerant-free cooling technology ensures quiet and low-vibration operation.
- Bright and high-contrast graphic OLED display
- Intuitive 3-button operation
- User-friendly menu navigation in five languages
- RS 232 interface
- Pump connections with quick couplings for simple change of applications
- Small size and low weight
- Safety class I/NFL for operation with non-flammable liquids (water, water/glycol)
Toote variatsioonid
| External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Min. voltage | Catalog number | Plug type | Power supply | Programmable | Temp. Stability | Temperature | Type | Type of display | Volume bath | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 261 x 368 x 312 mm | 368 mm | 312 mm | 261 mm | 0.4 kW | IP 21 | 80 °C | 240 V | 0.3 l | 4 °C | 100 V | 7.647 249 | CEE | 100 ... 240 V, 50/60 Hz | No | ±0,1 K | 4 ... 80 °C | L 250 | OLED | 0.3 l | 11.9 kg | 1.00 | |||
| 175 x 301 x 266 mm | 301 mm | 266 mm | 175 mm | 0.2 kW | IP 21 | 80 °C | 240 V | 0.3 l | 4 °C | 100 V | 7.646 599 | CEE | 100 ... 240 V, 50/60 Hz | No | ±0,1 K | 4 ... 80 °C | L 100 | OLED | 0.3 l | 6.9 kg | 1.00 |
