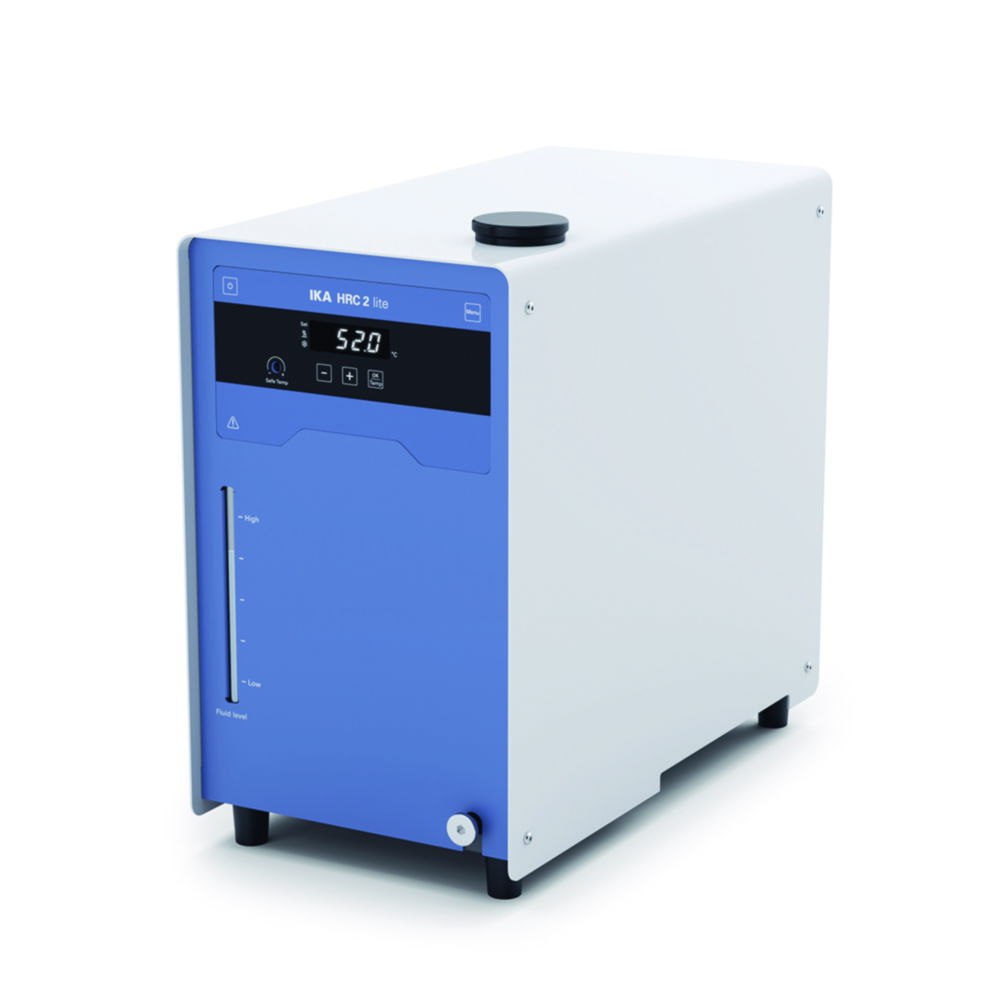

Circulator bath HRC 2 lite
Compact peripheral device designed for simple tempering tasks from -10 to 100 °C. Especially suitable for tempering bioreactors and laboratory reactors, open bath solutions or as a tempering source for measuring devices.
The pressure and suction pump enables the operation of several small applications as well as external applications in open baths in combination with a level controller.
- Natural refrigerant R290
- Easy-to-clean stainless steel mesh filter
- Interfaces: RS 232, USB
- Optional control and monitoring via labworldsoft® and other laboratory software
Scope of supply: Circulator bath, 2 x olive for DN 8 hoses, USB A-B cable
Toote variatsioonid
| External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Operation | Catalog number | Plug type | Power supply | Refrigerant | Temp. Stability | Temperature | Type | Type of display | Volume bath | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 225 x 430 x 385 mm | 430 mm | 385 mm | 225 mm | 1000 W | IP 21 | 0.15 bar | 100 °C | 230 V | 3.5 l | -10 °C | 1 l | Membrane keyboard | 6.325 256 | UK | 230 V, 50...60 Hz | R290 | ± 0,05 °K (70 °C) | -10 ... 100 °C | HRC 2 lite | LED | 1 ... 3.5 l | 24.9 kg | 1.00 | |||
| 225 x 430 x 385 mm | 430 mm | 385 mm | 225 mm | 1000 W | IP 21 | 0.15 bar | 100 °C | 230 V | 3.5 l | -10 °C | 1 l | Membrane keyboard | 6.325 257 | CH | 230 V, 50...60 Hz | R290 | ± 0,05 °K (70 °C) | -10 ... 100 °C | HRC 2 lite | LED | 1 ... 3.5 l | 24.9 kg | 1.00 | |||
| 225 x 430 x 385 mm | 430 mm | 385 mm | 225 mm | 1000 W | IP 21 | 0.15 bar | 100 °C | 230 V | 3.5 l | -10 °C | 1 l | Membrane keyboard | 6.491 839 | EU | 230 V, 50...60 Hz | R290 | ± 0,05 °K (70 °C) | -10 ... 100 °C | HRC 2 lite | LED | 1 ... 3.5 l | 24.9 kg | 1.00 |
