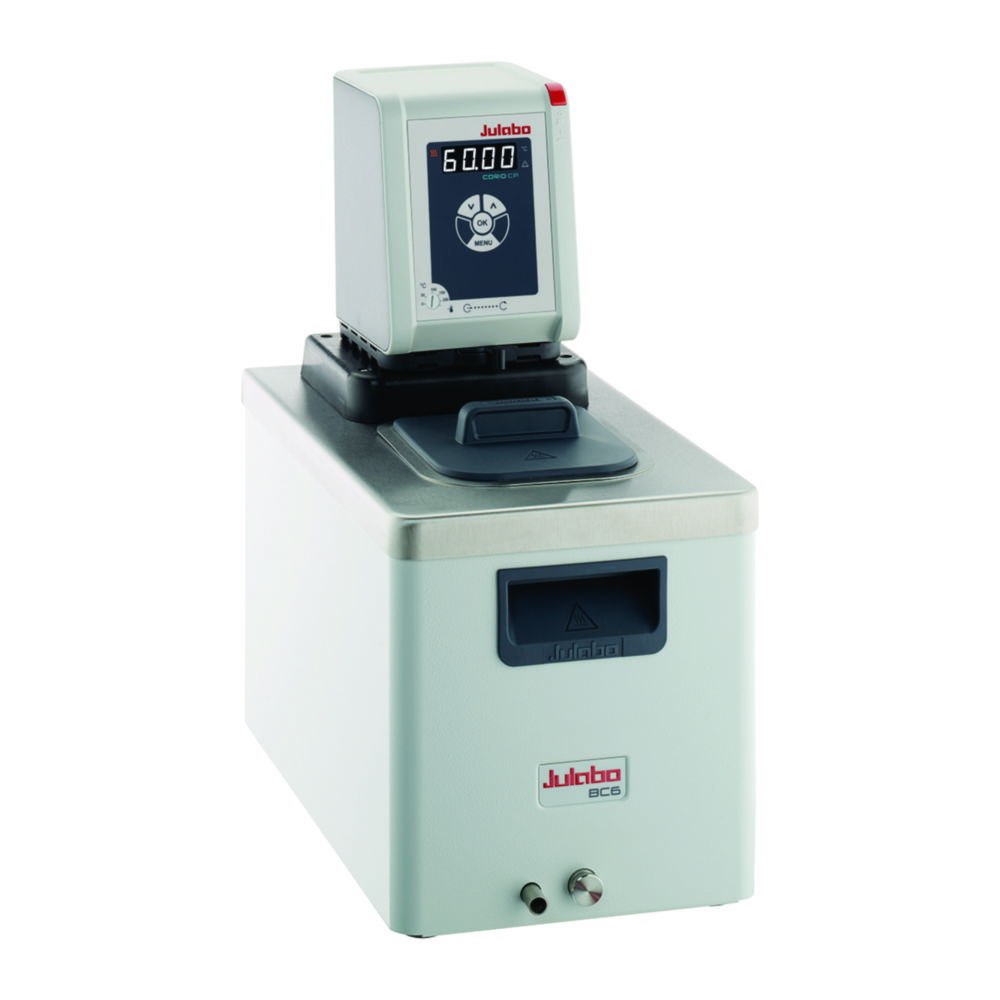

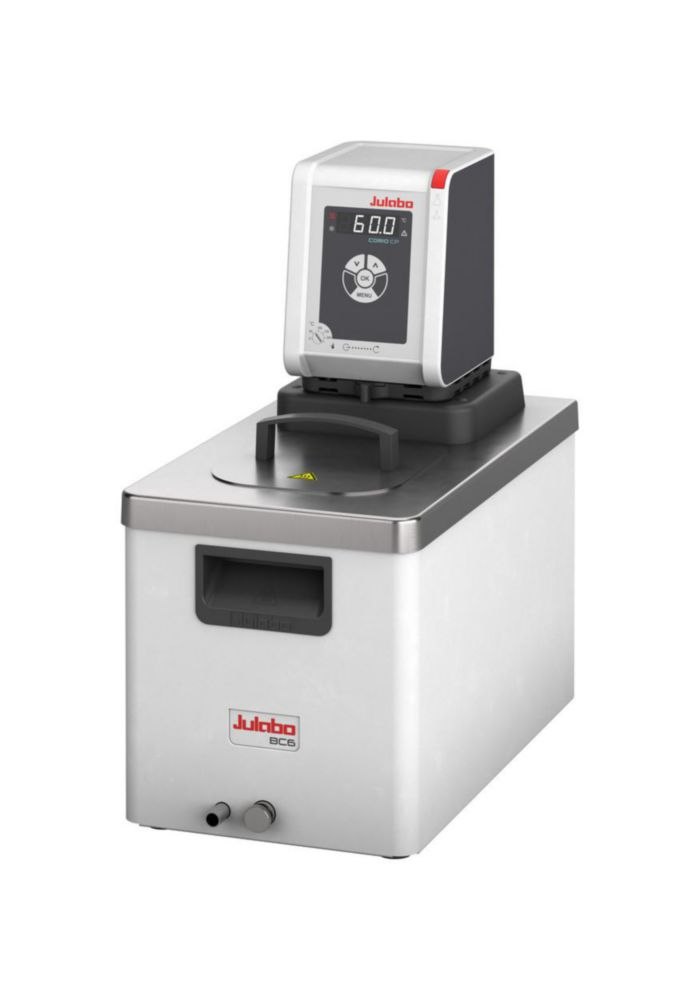

Circulator baths CORIO™ CP
With insulated stainless steel bath tanks, flexible performance and an operating temperature range of up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.
- Suitable for internal and external applications
- High-quality stainless steel bath vessels with bath lid and drain
- Integrated pump connections M16 x 1
- Integrated cooling coil for counter-cooling
- Bright, white, easily visible display, even from a distance
- Low-level warning system
- Easy switching between internal and external circulation
- Powerful, continuously variable pump
- Pump capacity adjustable from 8 to 27 l/min
- Very quiet
- Rubber feet for secure standing
- USB connection
- RS232 interface
- 3-point calibration
- Class III (FL) according to DIN 12876-1
Scope of supply: Circulator bath, mains power cable, connection box, bath, bath cover, hose connectors 8 and 12 mm
Toote variatsioonid
| Bath depth | Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | Material bath | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Min. voltage | atr_llg_min_volume_bath | Catalog number | Power supply | Temp. Stability | Temperature | Type | Volume bath | Weight | Width opening | With lid | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200 mm | 350 mm | 390 x 620 x 480 mm | 620 mm | 480 mm | 390 mm | 2 kW | Stainless steel | 200 °C | 230 V | 26 l | -20 °C | 200 V | 19 l | 4.670 679 | 200 ... 230 V, 50/60 Hz | ±0,02 °C | 20 ... 200 °C | CP-BC26 | 19 ... 26 l | 19.0 kg | 260 mm | Yes | Yes | 1.00 | |||
| 150 mm | 150 mm | 230 x 410 x 420 mm | 410 mm | 420 mm | 230 mm | 2 kW | Stainless steel | 200 °C | 230 V | 4.5 l | -20 °C | 200 V | 3 l | 4.669 405 | 200 ... 230 V, 50/60 Hz | ±0,02 °C | 20 ... 200 °C | CP-BC4 | 3 ... 4.5 l | 8.5 kg | 130 mm | Yes | Yes | 1.00 | |||
| 200 mm | 150 mm | 240 x 440 x 470 mm | 440 mm | 470 mm | 240 mm | 2 kW | Stainless steel | 200 °C | 230 V | 6 l | -20 °C | 200 V | 4.5 l | 4.670 677 | 200 ... 230 V, 50/60 Hz | ±0,02 °C | 20 ... 200 °C | CP-BC6 | 4.5 ... 6 l | 10.0 kg | 130 mm | Yes | Yes | 1.00 | |||
| 200 mm | 150 mm | 330 x 490 x 470 mm | 490 mm | 470 mm | 330 mm | 2 kW | Stainless steel | 200 °C | 230 V | 12 l | -20 °C | 200 V | 8.5 l | 4.670 678 | 200 ... 230 V, 50/60 Hz | ±0,02 °C | 20 ... 200 °C | CP-BC12 | 8.5 ... 12 l | 12.0 kg | 220 mm | Yes | Yes | 1.00 |
